NQ Full Hole Core Barrel Outer Tube With Full Chrome 3 Meter Long Wireline Core Barrel

1-5 pcs
MOQ
Negotiate
Price
NQ Full Hole Core Barrel Outer Tube With Full Chrome 3 Meter Long Wireline Core Barrel
Features Gallery Product Description Request A Quote
Features
Specifications
Model: Core Barrels
Long Year Series: Boart Longyear Core Barrel
Name: Atlas Copco Core Barrel
Q Series: Wireline Core Barrel
NMLC Series: NMLC Core Barrel
WT SERIES CORE BARRELS: NWT SERIES CORE BARRELS
WM SERIES CORE BARRELS: NWM SERIES CORE BARRELS
WG SERIES CORE BARRELS: BWG SERIES CORE BARRELS
WF SERIES CORE BARRELS: NWF SERIES CORE BARRELS
TT Series Core Barrels: TT48 Core Barrels
T2 Series Core Barrels: T2 76 86 101 Core Barrels
T6 Series Core Barrels: T6 86 101 116 Series Core Barrels
Model Item: Triefus Triple Tube Core Barrels
Conventional Series: CONVENTIONAL DOUBLE TUBE CORE BARRELS
Drilling: Exploration Core Drilling
Functions: Mineral Drilling
High Light:

wireline core barrel

,

drilling core barrel

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: NQ HQ PQ
Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 1000000 pcs
Product Description

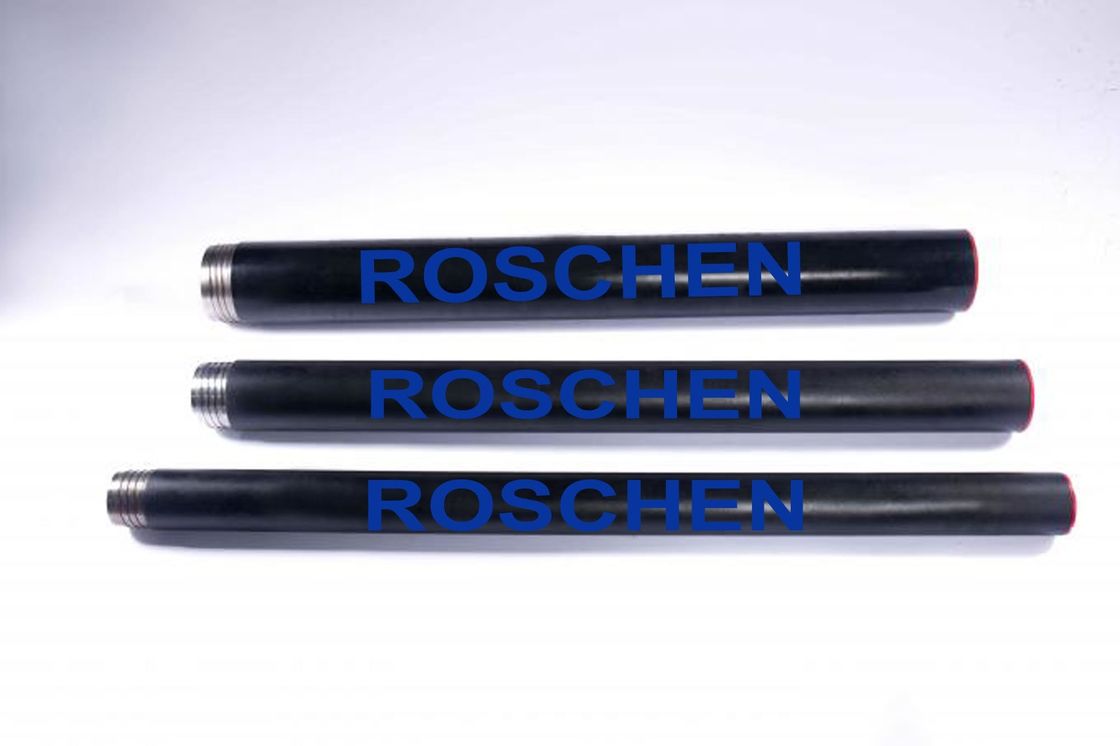

NQ full hole core barrel outer tube with full Chrome 3 meter long




HQ full hole core barrel outer tube with full Chrome Coating 3 meter long

core barrels for mining exlopration and geological drilling

NQ full hole core barrel outer tube with full Chrome

NQ full hole core barrel outer tube with full Chrome

NQ full hole core barrel outer tube, 3 meters lenght

NQ full hole locking coupling

Wireline Core Barrel Overshot Assembly, Underground

Wireline Core Barrel Pipe Casing Tube HWT


In-the-hole Drilling Products:

We supplies in-the-hole drilling products, including:

1. Diamond drill bits
2. Reaming shells and casing/rod shoes
3. Wireline drill rods,
4. Core barrels&overshot assemblies
5. Hoist plug and water swivels
6. Recovery tapes and Casing cutters
7. Drill string subs and adaptors

Core Barrel and Overshot


Features:

1. Double tube and triple tube core barrels & overshot assemblies
2. 1.5m (5 ft.)&3m (10 ft.) applications
3. Surface and underground types
4. Standard (Q) & thin wall(TW)series
5. Top-quality Chinese origin or Canadian sourced


Optimized choices:
We supplies overall kinds of DCDMA wire line core barrels & overshot that are suitable to surface and underground drilling, which can be equipped with various kinds of drilling rigs in simple connection method.
Our core barrels & overshot are made with high quality material and are available in high-level industry standard formats. For more convenience, they are highly compatible with other corresponding systems popular in the market.

Advanced technology:

The standard core barrels & overshots are proven, reliable systems that easily integrateinto the customer's drilling projects; plus, they are sturdy, heavy duty and tough enough to take on any sophisticated drilling requirements.
The improved latching systemand safety mechanismreduces the chance of latching mistakes, which will increase productivity and reduce chances of downtime.

Size Available as followings:

"Q" series: AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ3,
"TW" series: ATW, BTW, NTW, HTW,
"U" series (underground): AQU, BQU, NQU, HQU, ATWU, BTWU



Drill rod specification:


Description Length OD ID Weight
Standard Q thread or RQ thread
Drill rod, B 1.5 m 55.6mm 46mm 9.4kg
3m 18.6kg
Drill rod, N 1.5 m 71mm 60mm 13.5kg
3m 23.7kg
Drill rod, H 1.5 m 89mm 77.8mm 17.93kg
3m 35.84kg
Drill rod, P 1.5 m 114.3mm 101.6mm 26.79kg
3m 52.56kg




Standard "Q" wire line bit sizes
Size Hole (outside) diameter, mm Core (inside) diameter, mm
AQ 48 27
BQ 60 36.5
NQ 75.7 47.6
HQ 96 63.5
PQ 122.6 85

CHD 76 75.7 43.5
CHD 101 101.3 63.5
CHD 134 134 85




Q Series Wireline Core Barrel System Sizes
SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQ 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)




Roschen Core Barrel System Sizes
SYSTEM CORE Ø HOLE Ø
mm in mm in
A 48,0 1.89 27,0 1.06
B 59,9 2.36 36,4 1.43
N 75,7 2.98 47,6 1.88
H 96,1 3.78 63,5 2.5
P 122,6 4.83 85,0 3.35




Keywords:

Core Barrels
Craelius Core Barrel
Longyear Core Barrel
Boart Longyear Core Barrel
Secoroc Core Barrel
Atlas Copco Core Barrel

Wireline Core Barrel
AQTK Core Barrel
BQ Core Barrel
NQ Core Barrel
HQ Core Barrel
PQ Core Barrel

NMLC Core Barrel
HMLC Core Barrel
NWG Core Barrel
HWG Core Barrel

AQWL Core Barrel
BQWL Core Barrel
NQWL Core Barrel
HQWL Core Barrel
PQWL Core Barrel
SQWL Core Barrel

Double Tube Core Barrel
Metric Core Barrel
T2-66 Core Barrel
T2-76 Core Barrel
T2-86 Core Barrel
T2-101 Core Barrel

T6-76 Core Barrel
T6-86 Core Barrel
T6-101 Core Barrel
T6-116 Core Barrel
T6-146 Core Barrel

WT SERIES CORE BARRELS:
BWT SERIES CORE BARRELS
NWT SERIES CORE BARRELS
HWT SERIES CORE BARRELS
PWT SERIES CORE BARRELS

WM SERIES CORE BARRELS:
AXM/AWM SERIES CORE BARRELS
AXM SERIES CORE BARRELS
AWM SERIES CORE BARRELS
BWM SERIES CORE BARRELS
NWM SERIES CORE BARRELS
HWM SERIES CORE BARRELS

WG SERIES CORE BARRELS:
BWG SERIES CORE BARRELS
NWG SERIES CORE BARRELS
HWG SERIES CORE BARRELS

WF SERIES CORE BARRELS:
NWF SERIES CORE BARRELS
HWF SERIES CORE BARRELS
BWL Core Barrel
NWL Core Barrel
HWL Core Barrel
PWL Core Barrel
core barrels for mining exlopration and geological drilling
Triefus Triple Tube Core barrels
CONVENTIONAL DOUBLE TUBE CORE BARRELS
TT Series Core Barrels
T2 Series Core Barrels
T6 Series Core Barrels
T6 Series Core Barrels
WF / WG Series Core Barrels
CONVENTIONAL TRIPLE TUBE CORE BARRELS
WIRELINE DOUBLE TUBE CORE BARRELS “W/L”
WIRELINE TRIPLE TUBE CORE BARRELS “W/L3”
