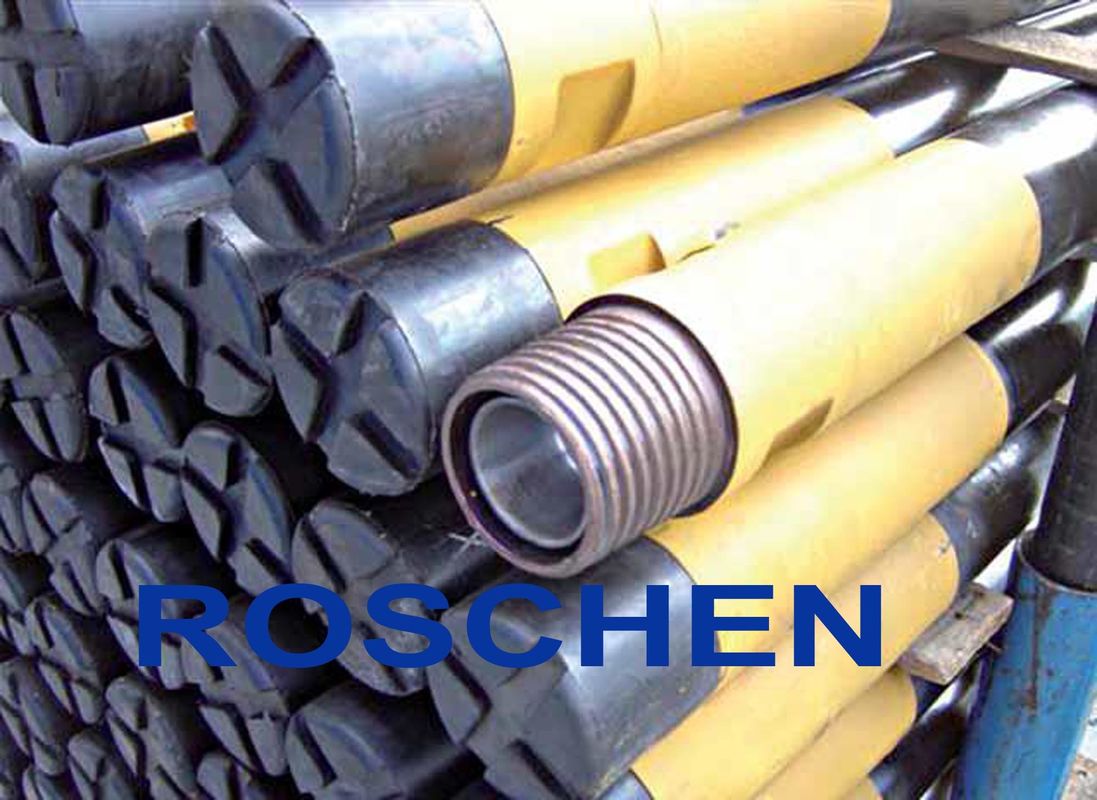

3.0inch REMET RC Rods of 3m each
3 inch REMET RC Rods of 3m Hammers used are the DTA DR 38 and RE531 hammers
3 inch REMET thread Reverse Circulation RC Rods of 3m length for RE531 Hammer
3.0inch REMET RC Rods of 3m each
The reverse circulation drill rod has four threads which adds to machine operating time. The purpose of the two extra threads is to allow the inner tube to be replaced in the field. It also allows the driller to replace the box tool joint with a new tool joint, without welding and can be done at the site.
We use heat threaded 4130 alloy tool joints; this alloy allows driller to employ a hardfacing program without fear of embitterment. We use a microalloy midsection (midbody), ST52V, 90KS1 MIL VLD possessing a superior abrasion resistance.
Our inner tube midsection (midbody) is a heavy-wall mechanical tube, not a pipe. The inner tube is fixed and won't vibrate under most conditions. The inner tube ends are made from a heat treated alloy and the male end is machine finished after welding for perfect alignment.
The o-ring retainers absorb the percussion forces to eliminate problems arising from the transfer of vibration and torque loads to the outer pipe.
Sizes | 3", 3 1/2", 4", 4 1/2", 75mm and 78mm |
Thread Types | Remet, Metzke, RRE, Westrod, LW, TS and other threads |
REVERSE CIRCULATION DRILL ROD SPECIFICATIONS | |||||||
Thread Type | Remet | Remet | Remet | Metzke | Metzke | Matrix | Matrix |
Rod O.D. | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 4" | 4 1/2" |
Outer Tube O.D. | 88.9mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm |
Outer Tube I.D. | 81.8mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm |
Outer Tube W.T. | 5.3mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm |
Inner Tube O.D. | 38.1mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm |
Inner Tube I.D. | 32.6mm | 45.3mm | 58mm | 45.3mm | 58mm | 45.3mm | 58mm |
Inner Tube W.T. | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm |
Spanner Flat | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm |
Weight 3.0m | 75kg. | 75kg. | 95kg. | 75kg. | 95kg. | 75kg. | 95kg. |
Weight 6.0m | 120kg. | 150kg. | 168kg. | 150kg. | 168kg. | 150kg. | 168kg. |
Reverse circulation drill rod
RC Rock Bit Adaptor 2 7/8 O-Ring.Body
RC Rock Bit Adaptor 2 7/8 O-Ring.Body
RC 4in/102 mm Box to NCC Pin Adaptor
RC 4in/102 mm Box to NCC Pin Adaptor
Inner Tube Tester 4"
Inner Tube Tester 4"
RC 4in/102 mm Saver Sub Pin to 4-1/2in
RC 4in/102 mm Saver Sub Pin to 4-1/2in
Interchange Top Sub 4.50" O.D.
Interchange Top Sub 4.50" O.D.
WRENCH KEY 4"
WRENCH KEY 4"
Rock Bit Adapter Wear Sleeve 5" O.D.
Rock Bit Adapter Wear Sleeve 5" O.D.
Rock Bit Adapter Wear Sleeve 4 7/8" O.D.
Rock Bit Adapter Wear Sleeve 4 7/8" O.D.
Rock Bit Adapter Valve Bladder
Rock Bit Adapter Valve Bladder
Bladder Loader 4"
Bladder Loader 4"
RC 4" Back Reamer Assembly 35-540-M40
RC 4" Back Reamer Assembly 35-540-M40
RC Rock Bit Adaptor 2 7/8 Q-Thrd.Body
RC Rock Bit Adaptor 2 7/8 Q-Thrd.Body
Crossover Interchange Sub
Crossover Interchange Sub
RC 4in/102 mm Rock Bit Adaptor Ass.
RC 4in/102 mm Rock Bit Adaptor Ass.
RC 4in/102 mm Box to HCC Pin Adaptor
RC 4in/102 mm Box to HCC Pin Adaptor
Interchange Top Sub 5.00" O.D.
Interchange Top Sub 5.00" O.D.
RC 4in/102 mm O-RING
RC 4in/102 mm O-RING
RC Saver Sub
RC Saver Sub
Rock Bit Adapter Wear Sleeve 4 5/8 O.D.Q.Tread
Rock Bit Adapter Wear Sleeve 4 5/8 O.D.Q.Tread
Rock Bit Adapter Wear Sleeve 4-3/8 O.D. V.Thread
Rock Bit Adapter Wear Sleeve 4-3/8 O.D. V.Thread
RC 4in/102 mm Rock Bit Inner Tube
RC 4in/102 mm Rock Bit Inner Tube
RC Rock Bit Adaptor 2 3/8 V-Thrd.Body
RC Rock Bit Adaptor 2 3/8 V-Thrd.Body
RC 4in Back Reamer Inner Tube 35-540-M40
RC 4in Back Reamer Inner Tube 35-540-M40
