Drilling Rig Machine
>
|
| Place of Origin | GERMANY-CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | RSGY-2 |

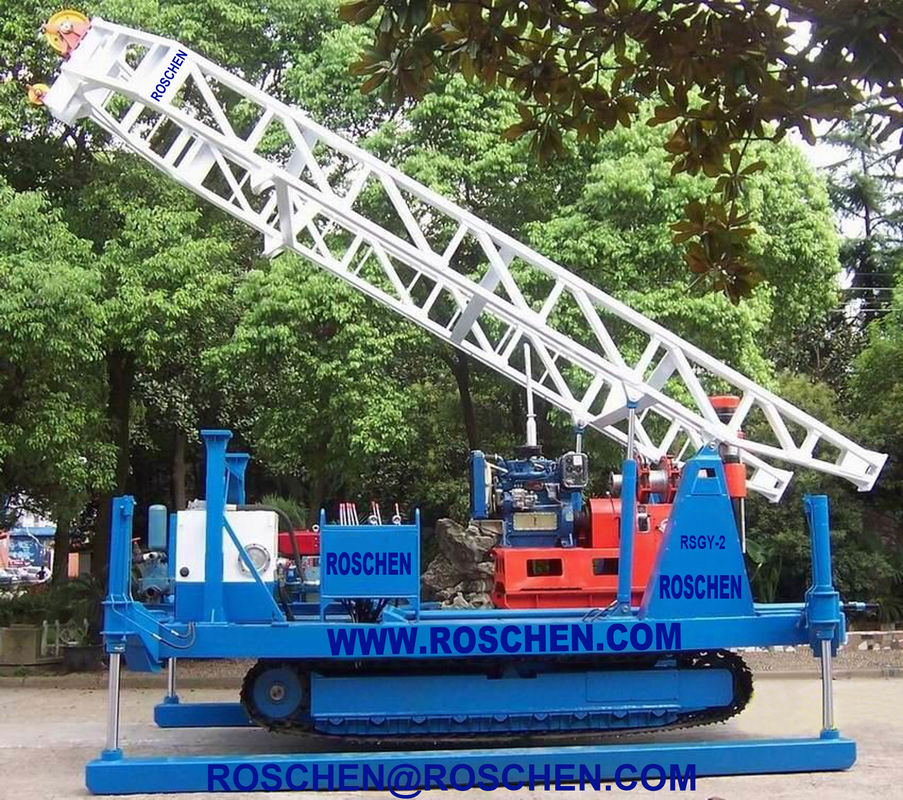

Hydraulic Crawler Mounted Drilling Rig for horizontal and vertical Geotechnical Drilling
crawler mounted rig where the boom movement can drill in horizontal to vertical and some upward anchor holes. WE are called Atlas Ground engineers - a group of geotechnical engineers.
crawler mounted rig where the boom movement can drill in horizontal to vertical and some upward anchor holes. WE are called Atlas Ground engineers - a group of geotechnical engineers.
Model: RSGY-2 Drilling Rig
Hydraulic Chuck Crawler Drilling Rig Hydraulic , Portable Drilling Machine
Quick Detail:
1.Model RSGY-2 drilling rig has various chassis mode like skid mounted, crawler mounted.
2.There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .
3.Model RSGY-2 drilling rig is a kind of spindle rotatory drilling rig. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.
4.Easy to master the hole condition with a long life anti-vibration meter. It is convenient for clamping and loosing drill heave with hydraulic chuck.
Description:
1. Model RSGY-2 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Roschen group limited. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.
2. Model RSGY-2 drilling rig has various chassis mode like skid mounted, crawler mounted.
3. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.
4. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.
Applications:
1. Engineering geological exploration.
2. Survey and exploration of solid mineral deposit.
3. Water discharge tunnel.
4. Inspecting hole of various concrete stucture.
| Technicals Specifications: | ||
| Hole depth | 300-600m | |
| Rod dia | 42mm/50mm | |
| Hole angle(°) | 360° | |
| Spindle speed | Forward speed:70;121;190;263;329;570;899;1241rpm | |
| Reverse speed:55/257rpm | ||
| Stroke of spindle | 600mm | |
| Max. lifting capacity | 25KN | |
| Max. feeding capacity | 20KN | |
| Max. distance from thespindle lower to the earth surface | 600mm | |
| Hoist | Max .lifting capacity | 15KN |
| (single line): | ||
| Lifting speed: | 0.2;0.52;1.05;2.06m/s | |
| Power | Electric motor: | 11kw,2200rpm |
| Diesel engine | S1100 or S1100M | |
| Weight | 500kg | |
| Dimensions (L×W×H) | 1450×970×1280mm | |
