Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | 12 1/4" |

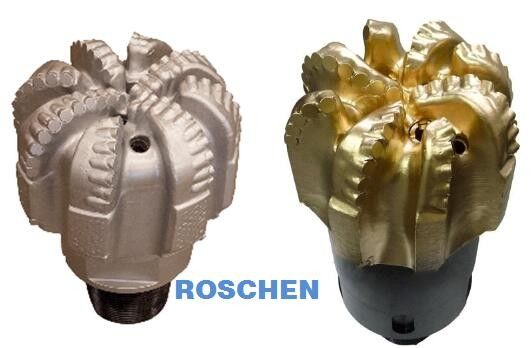

12 1/4" water well rotary drilling rig diamond pdc bit for sale
1. Specification
| 12 1/4" pdc bit Basical Parameter | |
| Bit Size | 12 1/4" |
| Number of Blade | 5 |
| Primary Cutter Size | 19MM |
| Nozzle Qty/Type | 7 |
| Gauge Length | 2.5"~3.5" |
| Connection | 6 5/8 REG PIN |
| Operating Parameter | |
| Rotary Speed(r/min) | 60~250 |
| Weight on Bit(KN) | 30~150 |
| Flow Rate(lps) | 40~55 |
2. Discriptions
PDC bits do not have the benefit of the self fluid-cleaning action between rows of teeth like roller cone bits, so they must rely on the bit's hydraulics to flush the cuttings from under the bit to prevent balling. This is accomplished with strategically positioned converging-diverging nozzles which maximize cleaning while minimizing erosion of the body near the nozzle area. Optimum hydraulic range is between 2.0 to 4.0 hydraulic horsepower per square inch. The interchangeable jet nozzles come in standard sizes from 8/32's to 14/32's.
3. Rough Specification
|
Matrix Body PDC Bit
|
|
| 1 . PDC Bit( Matrix Body) | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
4. Technology advantages
Custom-engineer bits for extended life, every directional PDC bit achieves directional certification through the integrated drillbit design platform, meaning dynamic stability across a wide range of directional applications. Directional PDC bits are modified for specific applications, so the possibility of unstable bit design is eliminated. Blade count, cutter layout, and hydraulic configuration are all optimized for full bottomhole coverage, higher loads per cutter, and maximum ROP.
