Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener

China Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier
Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener supplier

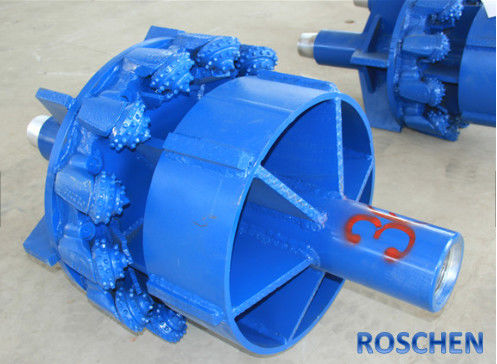

Large Image :  Horizontal Directioal Diamond Core Drill Bits 500mm Custom - Made HDD Hole Opener

Product Details:

Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 500mm Custom-Made

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: $4500~8500
Packaging Details: Poly wood box
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Name: Hole Opener Type: Pilot Holes
Materials: AISI 4145 Fully Heat Treated Alloy Steel Model: Security Standard And Security Custom Hole Openers
Usage: Rock Drilling Drying Type: Directional Drilling
Use: Rock Bit Or Bull-nose Pilot Bits Series: Rock Roller Tricone Bits

500mm custom-made HDD hole opener for horizontal directioal drilling


Hole opener

Large-diameter assembled bit is widely used in construction, bridge, highway and railway construction. This series of bits are suitable to various kinds of strata including shale, limestone, cobblestone, dolomite and conglomerate.
1. Suitable for medium to medium hard formation of high Crushing Resistanc
(hard shale,sands,etc.)
2. Bit bearing is non-sealed roller bearing.
3. Hardfacing is applied on the shirttail,and carbide inserts for gage protection
are pressed into the head OD.
4. Cone gage surface is reinforce with carbide compacts.

1. Cutting Structure

In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.

2. Gauge Structure
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.

3. Bearing Structure
High precision journal bearing. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.

4. Hydraulic Design
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.Optirnized hydraulics structure improves the clearing capability and increases ROP.

5. Product Application
It is suitable for sidetracking, deep well drilling and old well



Specifications
Hole Size Range in(mm)8.3/8-8.3/4 (213-222)12-12.1/4 (305-311)17.1/4-17.1/2 (438-445)22 (559)24.1/2-26 (622-660)
Minimum Pilot Hole Size in(mm)5.7/8 (149)8.1/8 (206)12 (305)13.1/4 (337)15.1/2 (394)
Cutter Sizes in(mm)8.3/8 (213) 8.1/2 (216) 8.5/8 (219) 8.3/4 (222)12-(305) 12.1/4 (311)17.1/4 (438) 17.1/2 (445)22 (559)24.1/2 (622) 25 (635) 26 (660)
Standard Fishing Neck OD in(mm)5.3/4-6 (146-152)8 (203)8 - 9.1/2 (203-241)8 - 9.1/2 (203-241)8 – 9.1/2 (203-241)
Approximate Body Weight lbs(kg)248 (112.5)540 (245)960 (435)1650 (748)1932 (876)






FAQ

Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
