Solar Pile Hole Drilling Rig Machine , Rotary Drilling Rig For Engineering Projects

1 set
MOQ
negotiate
Price
Solar Pile Hole Drilling Rig Machine , Rotary Drilling Rig For Engineering Projects
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Solar Pile Hole Drilling Rig
Type: Solar Pile Hole Rock Drilling Rig Machine Blast Hole Drilling
Item: Rock Drilling Rig
Model: Water Well Drilling Rigs
Series: Solar Pile Driver
Air Compressor: Air Compressor Manufacturers
Solar Pile Rig Supplier: Solar Pile Driver Manufacturers
Model Type: Water Well Drilling Rigs Manufacturers
Drilling Rig Supplier: Rock Drilling Rig Manufacturers
Model Name: Solar Piling Rig
Drilling Rig Sale: Drilling Machine For Solar Wholesale, Machine Suppliers
Drill Machine Sale: Hot Sales Borehole Rotary Piling Operation Of Drilling Machine
Item No: Solar Pile Driver
Functions: Crawler Hydraulic Helical Ground Screw Pile Driver
High Light:

55KW geothermal drilling rigs

,

55KW borehole drilling machine

,

Solar Pile Rotary Drilling Rig

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: ROS-130
Payment & Shipping Terms
Packaging Details: Steel bundle
Supply Ability: 1000000 set
Product Description

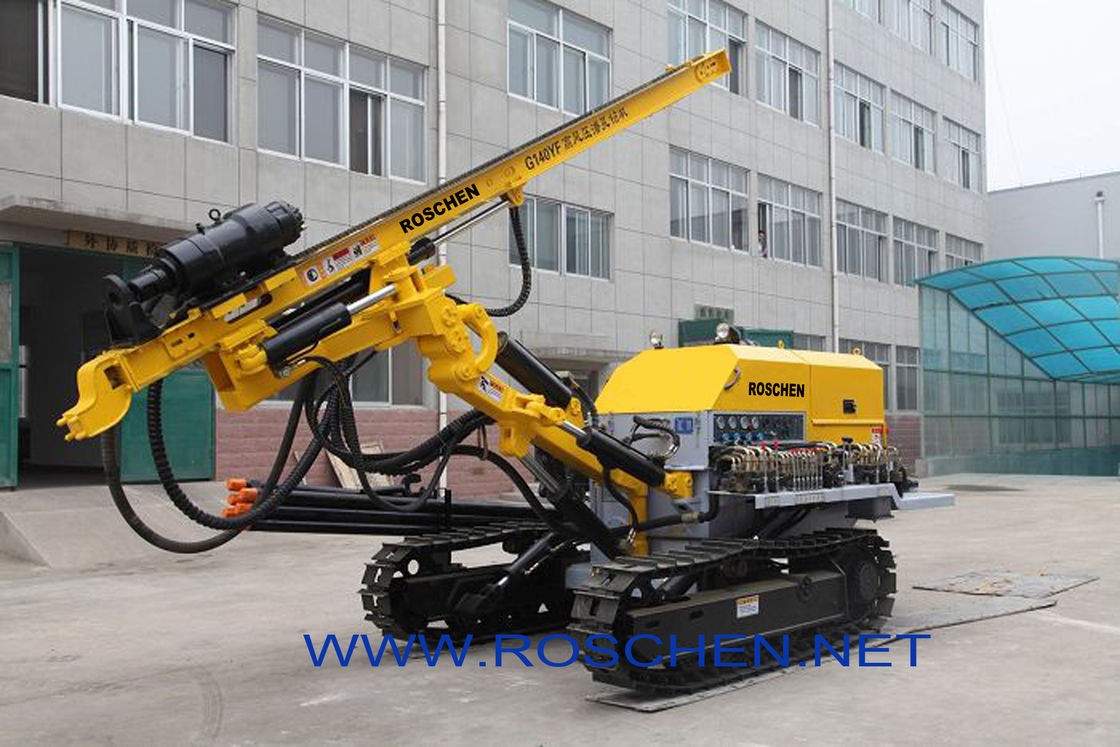

solar pile hole drilling rig
Solar Pile Hole Drilling Rig, Rotary Drilling Rig for Engineering Projects Drilling
Roschen Solar pile driver, using new type of hydraulic technology, convenient for hole transfer. The pile driver structure is compact,.while the mast has adjustable compensation function, when drilling, the mast supported on the ground, borehole stability is good. The machine hydraulic pressure can be adjusted according to different soil textures, so as to achieve the appropriate impact power for pile driving, it is a new type of pile driver. The drilling rig is mainly used in pile driving for photovoltaic Solar power station , pile driving for Highway guardrail, highway guardrail construction engineering construction, etc.


Quick Details
Model Number: ROS-130 Solar pile hole drilling rig
Condition: New
Type: Rotary Drilling Rig
Place of Origin: Shandong, China (Mainland)
Brand Name: ROSCHEN
Usage: Ore
Voltage: 220
Power(W): 55KW
Dimension(L*W*H): 4400*1900*2300
Weight: 38000
After-sales Service Engineers available to service machinery overseas



ROS 130 Pile hole drilling rig

Roschen Pile hole drilling rig adopt new-style hydraulic technique ,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of ROS-130 drilling rig has realiable property, high efficiency in anchor drilling.
Application:
1. ROS 130 crawler hydraulic drilling rig is mainly used in open cut ore mining
2. ROS 130 crawler hydraulic drilling rig can be used in drilling power station
3. ROS 130 crawler hydraulic drilling rig can be used for road building for exploring the stone.


Technical parameters:
Working pressure 0.7-1.6Mpa
Air consumption 10-15m3/min
Bore diameter 90-254mm
Bore depth Horizontal 40 down 30
Feed stroke 3000mm
Drill rod diameter 60mm
Guide compensation 900mm
Lifting force 24800N
Guide pitch Up and down 45degree
Guide swing Left 40 right30
Boom pitch Up and down 60 degree
Boom swing Left 90 right45
Climb ability 30 degree
Ground clearance 260mm
Walking speed 2.5km/h
Rotation speed 0-60r/min
Rotation torque 4600N.M
Motor power 55KW
Total weight 38000kg
dimension 4400*1900*2300
