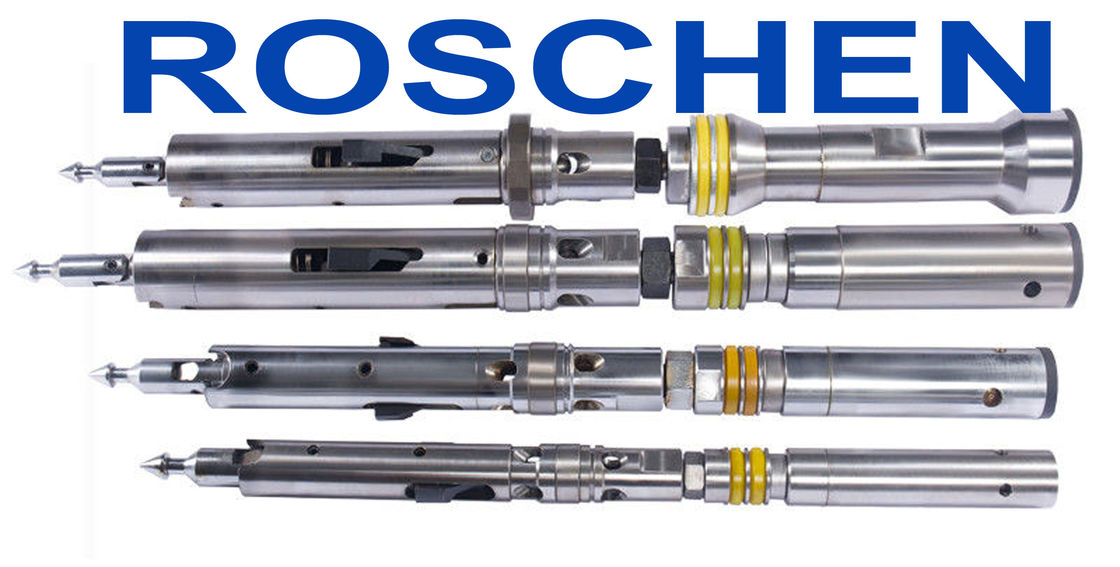

Wireline Triple Tube Core Barrels NQ3 HQ3 PQ3 For Mining Drilling
Wireline triple tube core barrels are generally required in broken, fractured formations. They incorporate a third, split inner tube on base of wireline double tube core barrel. This can be pumped out of the inner tube after retrieval, allowing the core to be examined in its in-situ state.
Our head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.
All With ISO certificate & quality control.
| Wireline Triple Tube Core Barrels | |||
| Size | Hole(mm) | Core(mm) | Head Thread |
| NQ3 | 75.2 | 45 | NQ3 rod box |
| HQ3 | 95.6 | 61 | HQ3 rod box |
| PQ3 | 122 | 83 | PQ3 rod box |
| Q Series Core Barrel System Sizes | ||
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Core Barrel System Sizes | ||||
| SYSTEM | CORE Ø | HOLE Ø | ||
| mm | in | mm | in | |
| A | 48,0 | 1.89 | 27,0 | 1.06 |
| B | 59,9 | 2.36 | 36,4 | 1.43 |
| N | 75,7 | 2.98 | 47,6 | 1.88 |
| H | 96,1 | 3.78 | 63,5 | 2.5 |
| P | 122,6 | 4.83 | 85,0 | 3.35 |
Notes:
1. Core Bit and Reaming Shell are not supplied with the core barrel, and shall be ordered separately.
2. 1.5m and 3.0m length core barrels are available.
