Core Barrel
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | AQ BQ NQ3 HQ3 HQ PQ PQ3 |

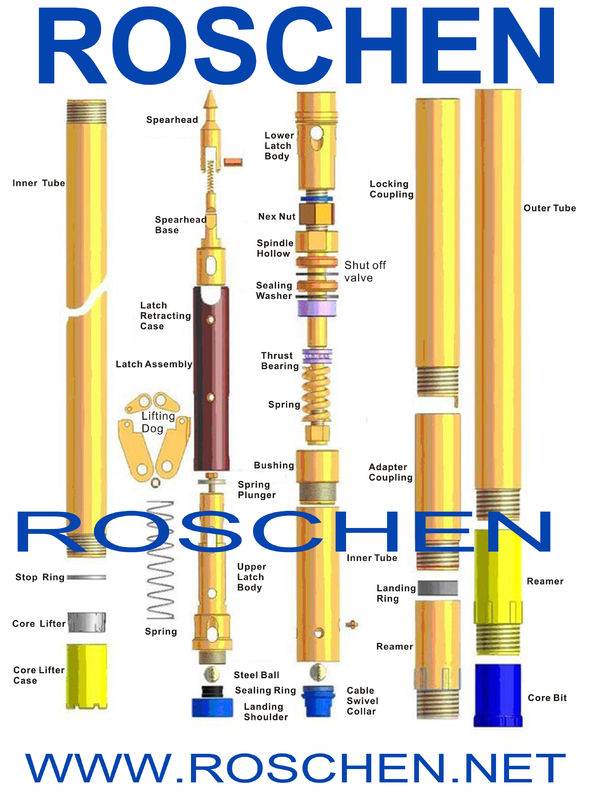

AQ BQ NQ HQ PQ NQ3 HQ3 wireline diamond Core Barrel Assembly
Introduction:
In-the-hole Drilling Products:
ROSCHEN supplies in-the-hole drilling products, including these industry:
1. Diamond drill bits
2. Reaming shells and casing/rod shoes
3. Wireline drill rods,
4. Core barrels&overshot assemblies
5. Hoist plug and water swivels
6. Recovery tapes and Casing cutters
7. Drill string subs and adaptors
Core Barrel and Overshot
Advantages:
1. Double tube and triple tube core barrels & overshot assemblies
2. 1.5m (5 ft.)&3m (10 ft.) applications
3. Surface and underground types
4. Standard (Q) & thin wall(TW)series
5. Top-quality Chinese origin or Canadian sourced
Features:
ROSCHEN supplies overall kinds of DCDMA wire line core barrels & overshot that are suitable to surface and underground drilling, which can be equipped with various kinds of drilling rigs in simple connection method.
Our core barrels & overshot are made with high quality material and are available in high-level industry standard formats. For more convenience, they are highly compatible with other corresponding systems popular in the market.
Size Available as followings:
1. "Q" series: AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ3,
2. "TW" series: ATW, BTW, NTW, HTW,
3. "U" series (underground): AQU, BQU, NQU, HQU, ATWU, BTWU
| Core sizes: | ||||
| Double tube surface | ||||
| Size (surface exploration drill) | Metric system (mm) | Imperial system (in) | ||
| Hole diameter | Core diameter | Hole diameter | Core diameter | |
| BQ | 60 | 36.4 | 2.36 | 1.43 |
| NQ | 75.7 | 47.6 | 2.98 | 1.88 |
| HQ | 96.1 | 63.5 | 3.78 | 2.5 |
| PQ | 122.7 | 85 | 4.83 | 3.34 |
| Triple tube surface | ||||
| NQ3 | 75.7 | 45 | 2.98 | 1.78 |
| HQ3 | 96.1 | 61.1 | 3.78 | 2.41 |
| PQ3 | 122.7 | 83 | 4.83 | 3.27 |
