Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | 3 7/8"~26" |

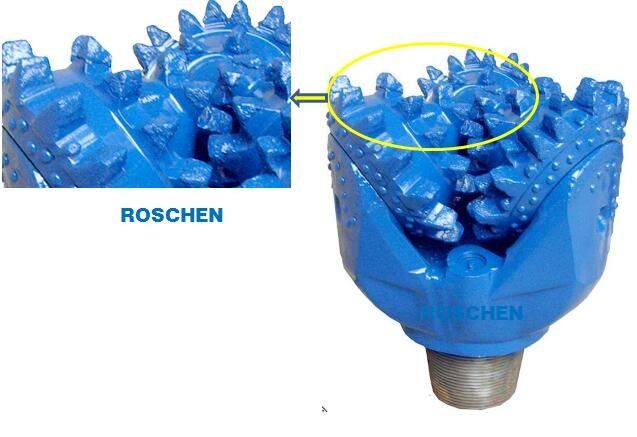

17 1/2inch Tricone Bit Mill Tooth IADC117
Product Discription
Milled tooth Tricone Rock Drill Bits:
| PRODUCT SPECIFICATIONS | |
| product name | 17 1/2 TCI tricone bit |
| size | 17 1/2 inch,444.5mm |
| tooth type | mill tooth |
| connection | 7 5/8" API Reg |
| bearing | metal sealed journal bearing |
| Nozzle | three jet nozzles |
| application | water well,oil well,HDD,exploration,etc |
| weight | 250kg |
| certificate | API7-1,SY/T5164,ISO9001:2008 |
| RECOMMENDED ROCK FORMATION | |
| very soft with low compressive strength and high drillability,such as soft shale,clay and salt bed,etc. | |
The milled tooth (steel tooth) tricone bits drilling for soft to medium rock formation.
The medium formation milled tooth tricone bits are used to drill high compressive strength, medium rock formation. Shoot projection teeth with reduced crest length are used in this series of bit designs. Durable hard facing is applied to reduce tooth wear.
The soft formation milled tooth tricone bits are used to drill low compressive strength, soft formation. Long projection tooth lengths are used on high offset cones to provide the greatest penetrations rates possible. Wear resistance hard facing is used to control tooth wear. On the softest bit types this hard facing completely covers the bit teeth.
Main features
High precision roller bearing with two thrust faces. Ball lock the cone. Thrust faces hard-face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
Specification
Tricone bits , hole openers can be used to explore /drill gas/oil/geothermal/water wells. 3 7/8”~26” are available for Tricone bits. 4 1/2”~17 1/2” are available for Diamond PDC bits.
The TCI Tricone Bit ranges in size from 3.875” (88.9mm) to 28” (711.2mm)
The Mill Tooth TriCone Bit ranges in size from 5” (127mm to 32” (812.8mm)
| RECOMMENDED DRILLING PARAMETERS FOR APPLICATION | |||
| Type&IADC code | 117 | 127 | 137 |
| WOB(KN/mm) | 0.30~0.90 | 0.30~0.90 | 0.35~0.90 |
| RPM(r/min) | 300~80 | 300~80 | 300~80 |
