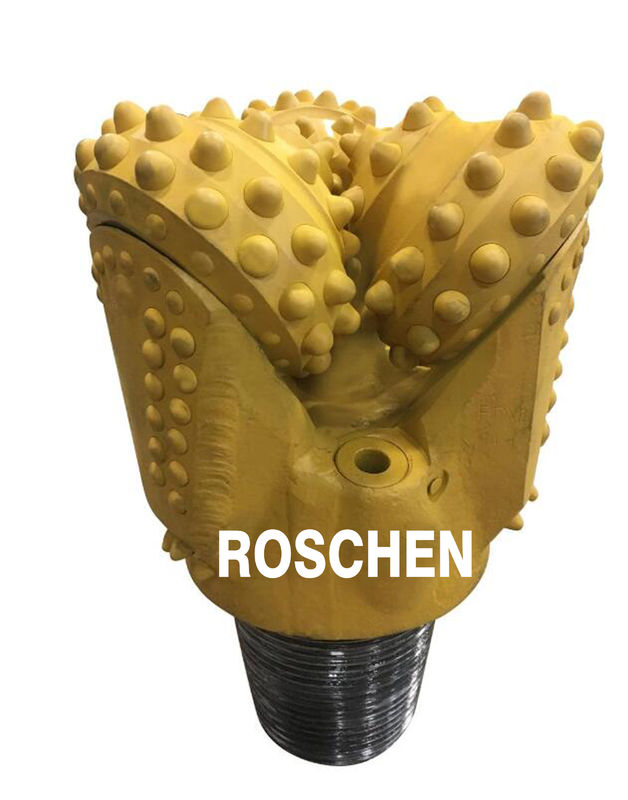

API 6" IADC 517 Kingdream Tricone Bit for Rock Drilling
API 6" IADC 517 Kingdream Tricone Bit for Water Well Drilling
* HA Series Tricone Bit Diameter from 3 7/8-36 inch,IADC Code from 117 to 837.
we have enough stock,it can be used for water well,oil & gas drilling and solar.
* Bearing : Rubber (O-Ring )Sealed Journal Bearing Bit
Product Name | API 6" IADC517 Kingdream Tricone Bit for Water Well Drilling |
IADC | 517 |
Color | Blue |
Pin Thread | API Reg. 3 1/2" |
Diameter | 6" = 152 mm |
Other Main IADC | 537,617,637 |
Weight | 16/20 Kgs |
LxWxH (mm) | 200X200X300 mm |
Normal WOB | 0.35~1.05 KN/MM |
Rotary Speed | 120-50 RPM |
Applicable Formation | Soft with low compressive strength and high drillability, such as shale, clay, sandstone and soft limestone,etc |
Cutting Structure | Large dia offset crested scoop compacts in inner row,with added number of compact rows,and a row of trimmers is added between gage row and heel row. |
ITEM | Tricone Bits Specifications | API thread | |
inch | mm | ||
1 | 3-3/4 | 95.3 | 2-3/8 |
2 | 3-7/8 | 98.4 | 2-3/8 |
3 | 4-1/8 | 104.8 | 2-3/8 |
4 | 4-1/4 | 108.0 | 2-3/8 |
5 | 4-1/2 | 114.3 | 2-3/8 |
6 | 4-5/8 | 117.5 | 2-7/8 |
7 | 4-3/4 | 120.7 | 2-7/8 |
8 | 4-7/8 | 123.8 | 2-7/8 |
9 | 5-1/2 | 139.7 | 3-1/2 |
10 | 5-5/8 | 142.9 | 3-1/2 |
11 | 5-2/3 | 143.9 | 3-1/2 |
12 | 5-3/4 | 146.1 | 3-1/2 |
13 | 5-7/8 | 149.2 | 3-1/2 |
14 | 6 | 152.4 | 3-1/2 |
15 | 6-1/8 | 155.6 | 3-1/2 |
16 | 6-1/4 | 158.8 | 3-1/2 |
17 | 6-1/2 | 165.1 | 3-1/2 |
18 | 6-5/8 | 168.3 | 3-1/2 |
19 | 6-3/4 | 171.5 | 3-1/2 |
20 | 7-1/2 | 190.5 | 4-1/2 |
21 | 7-5/8 | 193.7 | 4-1/2 |
22 | 7-7/8 | 200.0 | 4-1/2 |
23 | 8-3/8 | 212.7 | 4-1/2 |
24 | 8-1/2 | 215.9 | 4-1/2 |
25 | 8-5/8 | 219.1 | 4-1/2 |
26 | 8-3/4 | 222.3 | 4-1/2 |
27 | 9-1/2 | 241.3 | 6-5/8 |
28 | 9-5/8 | 244.5 | 6-5/8 |
29 | 9-7/8 | 250.8 | 6-5/8 |
30 | 10-1/2 | 266.7 | 6-5/8 |
31 | 10-5/8 | 269.9 | 6-5/8 |
32 | 11 | 279.4 | 6-5/8 |
33 | 11-5/8 | 295.3 | 6-5/8 |
34 | 12 | 304.8 | 6-5/8 |
35 | 12-1/4 | 311.2 | 6-5/8 |
36 | 12-5/16 | 312.7 | 6-5/8 |
37 | 12-3/8 | 314.3 | 6-5/8 |
38 | 12-7/16 | 315.9 | 6-5/8 |
39 | 12-5/8 | 320.7 | 6-5/8 |
40 | 13-1/8 | 333.4 | 6-5/8 |
41 | 13-1/2 | 342.9 | 6-5/8 |
42 | 13-5/8 | 346.1 | 6-5/8 |
43 | 13-3/4 | 349.3 | 6-5/8 |
44 | 14-1/2 | 374.7 | 7-5/8 |
45 | 14-3/4 | 374.7 | 7/5/8 |
46 | 15-1/2 | 393.7 | 7-5/8 |
47 | 16 | 406.4 | 7-5/8 |
48 | 17-1/2 | 444.5 | 7-5/8 |
49 | 18-7/8 | 479.4 | 7-5/8 |
50 | 20 | 508.0 | 7-5/8 |
51 | 22 | 558.8 | 7-5/8 |
52 | 24 | 609.6 | 7-5/8 |
53 | 26 | 660.4 | 7-5/8 |
Roschen Kingdream has been one of the most professional manufacturer of tricone bit, PDC bit in Oil & Gas drilling fields of China. Their drilling bits are very famous in the world for they can provided creative solutions for customers.
We have large stock for normal sizes of Roschen Kingdream bits.
Welcome you sent us any inquiry !
FAQ
Q: Your Roschen kingdream tricone bits are new or renew ?
A: We can promise our Roschen kingdream bits are 100% new with orignal packing and documents.
Q: How long is your delivery time for Kingdream bits?
A: Generally it is 3 days if we have stock. We need lead time 20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: If the goods on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shippment,or 100% payment in advance through Alibaba.com Trade Assurance.
