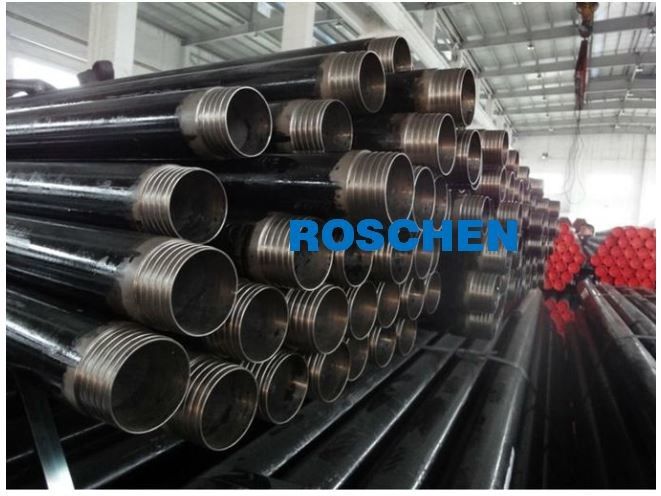

Wireline Drill Rods, BQ NQ HQ PQ Drill Pipe
Our wireline drill rods are manufactured by CNC machines, and made of high quality alloy steel. All our wireline drill rods are heat treated.
We only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
This wireline drill rod is main part that connect the drilling rig with diamond bits. Wireline rod features good wear resistance, optimal tensile strength capacity and good torsional property.
General Characteristic:
1. Both ends thickened;
2. Good concentricity;
3. High precision;
4. Long life.
Specifications:
No | size | Drill rod | Thread type | Heat | Raw material | Designed hole depth | |
OD mm | ID mm | treatment | |||||
1 | BQ | 55.6 | 46 | DCDMA | Heat treament whole pipe | ZT850 | 2000M |
2 | NQ | 70.5 | 60.5 | 2000M | |||
3 | HQ | 89 | 77.8 | 1500M | |||
4 | PQ | 114.3 | 103.2 | ZT520 | 800M |
Wireline Drill Rods Heat treatment process control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
