Europe Steel Mayhew Junior Drill Pipe For Water Well Drilling Rig

10 pcs
MOQ
Negotiate
Price
Europe Steel Mayhew Junior Drill Pipe For Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
4140: USA Steel Pipe Materials
4150: Europe Steel Pipe Materials
High Light:

Europe Steel Mayhew Junior Drill Pipe

,

Water Well Drilling Rig rod

,

Mayhew Junior Drilling Rig pipe

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 2 3/8", 2 7/8"
Payment & Shipping Terms
Packaging Details: wooden box, steel bundles
Supply Ability: 1000000000 pcs
Product Description



2 3/8" Mayhew Junior Drill Pipe for Water Well Drilling Rig

2 3/8" Mayhew Junior Drill Pipe for Water well drilling Rig


Mayhew Junior Friction Welded Rod 2 - 7/8" Shoulder 79mm 2 - 3/8" REG

Mayhew Junior Friction Welded Rod 2 - 7/8" Shoulder 79mm 2 - 3/8" REG


Description:

Mayhew Junior Rods

We manufacture drill rods from seamless tubing and hardened & tempered alloy steel tool joints.
All our tool joints are pre-machined and heat treated before final machining to ensure accuracy.
All threads are gauged to international standards to ensure interchangebility on existing rods irrespective of supplier.

We manufacture a wide variety of rods which include conventional, RC and aircore flush.

Our drill rods can be supplied in a variety of different threads which include Remet, Metzke, Api, ARD, Api internal flush, Junior Mayhew and so forth.

We also manufacture reverse circulation drill pipe, and reverse circulation stainless steel RC rods.



Name A B C D E F G H
TOOL JOINTS:1
2 3/8 API Regular 2-3/8" 3-1/8" 2-5/8" 3 5 3 60° API 1
2 7/8 API Regular 2-7/8" 3 3/4 3 3 1/2 5 3 60° API 1 1/4
3 1/2 API Regular 3 1/2 4 1/4 3 1/2 3 3/4 5 3 60° API 1 1/2
4 1/2 API Regular 4 1/2 5 1/2 4-5/8" 4 1/4 5 3 60° API 1 1/4
2 3/8 API Internal Flush 2-3/8" 3-3/8" 2-7/8" 3 4 2 60° API 1 3/4
2 7/8 API Internal Flush 2-7/8" 4-1/8" 3 25/64 3 1/2 4 2 60° API 2-1/8"
3 1/2 API Internal Flush 3 1/2 4 3/4 4 1/64 4 4 2 60° API 2 11/16
2 3/8 Mayhew Junior 2-3/8" 2 3/4 2 21/64 2 1/4 4 2 60° Mod. API 1 1/2
2 3/8 Mayhew Regular 2-3/8" 3 1/4 2 35/64 3 4 1 1/2 60° Mod. API 1-5/8"
2 7/8 Mayhew Full Hole 2-7/8" 3 3/4 3 3/64 3-3/8" 4 1 1/2 60° Mod. API 2
2 3/8 Failing Exploration 2-3/8" 2 31/32 2 1/2 2 3/4 4 2 60° Mod. API 1 1/2
2 7/8 Failing Exploration 2-7/8" 3 3/4 3-1/8" 3 1/4 4 2 60° Mod. API 1-7/8"
2 3/8 Hughes Acme Regular 2-3/8" 3-1/8" 219/32 3 4 3-3/8" 29° Acme 1
2 3/8 Winter Weiss 2-3/8" 3 1/4 235/64 3 4 1 1/2 60° Mod. API 1 1/2
2 7/8 Winter Weiss 2-7/8" 37/16 235/64 3 4 1 1/2 60° Mod. API 1 1/2
3 1/2 API Full Hole 3 1/2 4-5/8" 4 3 3/4 5 3 60° Mod. API 27/16
FLUSH JOINT TAPERED THREAD
United Geophysical (1 11/16 OD) 111/16 111/16 1-3/8" 1 6 3 29° Acme 1




Description Pipe OD Pipe Wall Connection OD Connection ID Length(ft)
2-3/8 IF Flush 3 1/2 0.375 3 1/2 1 3/4 20
2-3/8 IF 2 3/8 .280/254 3 1/2 1 3/4 10, 15, 20
2-3/8 FEDP 2 3/8 .280/254 3 1/8 1 1/2 10, 15, 20
2-3/8 Mayhew Jr 2 3/8 .280/254 3 1 1/2 10, 15, 20
2-3/8 Mayhew Jr 2 3/8 0.19 2 3/4 1 1/2 5, 10
2-7/8 Mayhew Jr Pipe Flush 2 7/8 0.362 2 7/8 1 1/2 10, 15, 20
Mayhew Reg. Flush 3 1/2 0.375 3 1/2 1 1/2 20
Mayhew Reg. 2 3/8 .280/254 3 1/2 or 3 1/4 1 1/2 10, 15, 20
2-7/8 IF 4 1/2 0.337 4 1/8 2 1/2 10, 15, 20
3-1/2 IF 5 1/2 0.362 4 3/4 2 11/16 10, 15, 20
3-1/2 API Reg Flush 4 1/2 0.337 4 1/2 1 1/2 10, 15, 20
4-1/2 API Reg Flush 5 1/2 .362/.478 5 1/2 2 1/4 10, 15, 20
AWJ/AW w/Flats 1 3/4 .188/.250 1 3/4 5/8 5,10
NWJ/NW w/Flats 2 5/8 .188/.250 2 5/8 1-1/4 or 1-3/8 5,10



ROSCHEN@ INC.
ROSCHEN@ GROUP LIMITED
ROBERT ROSCHEN@ LIMITED
ROSCHEN@ HOLDINGS LIMITED
HEFEI ROSCHEN@ TOOL CO., LTD.
ROSCHEN@ GEOLOGICAL TOOL CO.,LTD.
SHANGHAI ROSCHEN@ INTERNATIONAL CO., LTD.
ROSCHEN@ GEOLOGICAL INSTRUMENTS CO., LTD.
EMAIL: roschen@roschen.com ; roschen@roschen.net
http://www.roschendrill.com
http://www.roschenmining.com
http://www.roschendrilling.com
http://www.explorationcoredrilling.com
http://www.roschen.net
http://www.roschen.cn
http://www.roschen.com








Packaging & Shipping

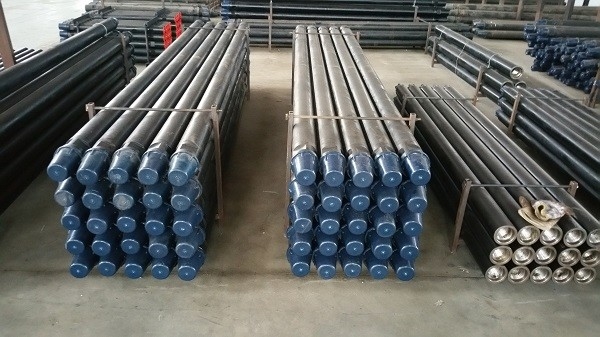

1. The drill pipes will be packed into bundles as 3x3, 3x4, 4x4 etc. and loading into containers after black painting and thread protectors installation.

2. For 20' container, the max loading weight is 21 metric tons

3. For 40' container, the max loading weight is 27 metric tons

Usage Note:

New drill pipe should be pasted thread oil before connection

Make up and break at least 3 times before drilling

3. Hard bending and plastic coating can be processed according to clients' special requirements
