Mining Exploring Diamond Core Drill Bits BQ HQ NQ PQ For Hard Rock Formation

5pcs
MOQ
Negotiation
Price
Mining Exploring Diamond Core Drill Bits BQ HQ NQ PQ For Hard Rock Formation
Features Gallery Product Description Request A Quote
Features
Specifications
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
High Light:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

Basic Infomation
Place of Origin: Germany, Australia, China
Brand Name: ROSCHEN
Certification: ISO, API
Model Number: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131
Payment & Shipping Terms
Packaging Details: Carton, wooden
Delivery Time: 15 days
Payment Terms: T/T, L/C at sight
Supply Ability: 2000pcs per week
Product Description

Core Bits


Core drilling bits


BQ HQ NQ Core drilling bits






Mining Exploring Diamond Core Drill Bits BQ HQ NQ PQ For Hard Rock Formation




Quick Detail:

1. High Penetration Rate
2. High Rotation Speed
3. High Performance
4. Long life drilling
5. High strong resistance to abrasion


Description:



Features:

High Penetration Rate, High Rotation Speed, High Performance

Material:

Diamond, metal micropowder

Type:

BQ Diamond Core Bit/ BQ Drill Bit

Use:

Mineral Exploration, Mineral Exploration

Product Name:

Core Drill Bits

Crown Height:

9mm, 12mm, 16mm, 25mm





Applications:



Impregnated Diamond Core Drill Bits BQ For Hard Rock Core In Mining Exploring



Core bits BQ core drill bits

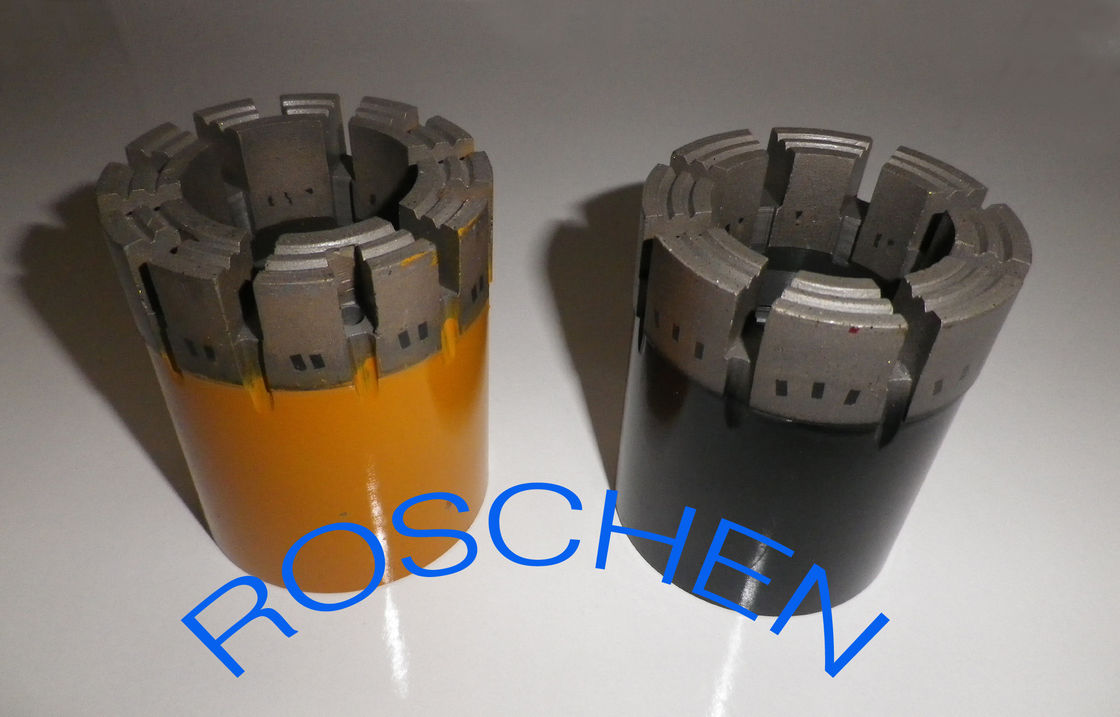

Roschen impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.

“ROSCHEN” brand is a famous global brand.


Roschen Surface set Diamond Core Bits are mostly suited to soft formations or using low powered drills, as they operate more effectively than impregnated bits at low surface speeds. Available with different stone sizes, face profiles and waterway arrangements to suit different conditions. All supplied with highest quality natural drilling diamonds.

Impregnated Diamond Core Bits can drill a broad range of formations from the softest to the hardest rocks. Manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. All bits have T.C. and Diamond gauge protection. Available in 6 standard matrix types to suit rock formation.


Matrix rated 7, ROSCHEN core bits are manufactured using only the highest grade diamonds, which are coated with titanium in order to preserve their cutting abilities throughout the bit furnacing process. Furthermore, they are manufactured using a new unitary furnacing process regularizing the consistency of the tools. The ROSCHEN core bit offers the best penetration/lifespan ratio in the industry, in medium hardness ground.


ROSCHEN's 7 grade bits cuts through quartz and all types of granite or equivalent hardness rocks without any problem, and is well adapted to softer and abrasive ground.


Offered with a diamond impregnation height of 13 mm, the ROSCHEN 7 is available in standard, pie-shaped and turbo pie-shaped configurations. For deep hole applications, it can also be ordered in Luan, with a diamond impregnation height of 16 mm.





Specifications:



Core Bit/ BQ drill bit is long life diamond core drill bit used for drilling/taking rock core in mining exploration.



Standard

Specifcations of core bits

"Q" / Wireline series:

AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 series:

T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T2 116, T2 131

T6 series:

T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116

T series:

T36, T46, T56, T66, T76, T86, T101, T116, T131

Z series:

Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146

B series:

B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF series:

HWF, PWF, SWF, UWF, ZWF

WT series:

RWT, EWT, AWT, BWT, NWT, HWT, PWT

WM series:

EWM, AWM, BWM, NWM, HWM

WG series:

EWG, AWG, BWG, NWG, HWG

"QWL" series:

QWL Series: AQWL, BQWL, NQWL, HQWL, PQWL , NQWL2, NQWL3, NQTT, HQWL3, HQTT, PQWL3, PQTT

Special sizes:

NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, EX, AX, BX, NX, NXC, EXT, AXT, EXU, AXU, NXU, T6H, 4-9/16, NWD4, 412F, SK6L146, K2-101, K2-116, TT46, TB56, TS116, CHD101





Competitive Advantage:



1. High penetration speed, long life drilling

2. Over 50 years experiences

3. High resistant, fast speed

4. Competitive price
