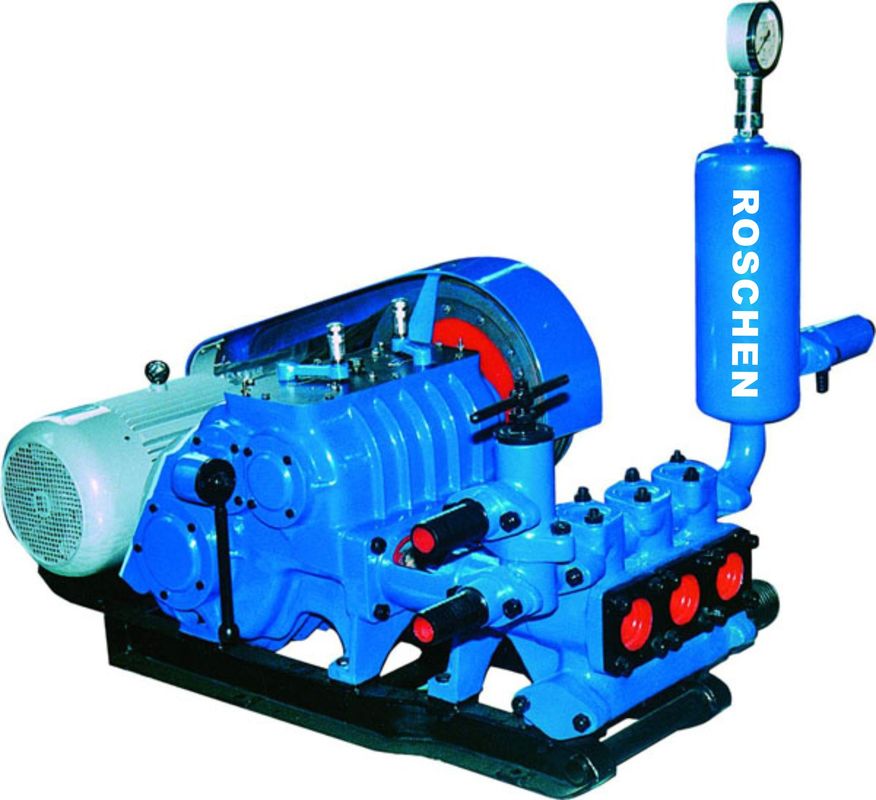

Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump
  • Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump
  • Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump
  • Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump

Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump

Place of Origin Germany, Australia, China
Brand Name ROSCHEN
Certification ISO, API, CE
Model Number RS80, RS90, RS100, RS160, RS150, RS250, RS320, RS350, RS450, RS600, RS800, RS1000, RS1200
Product Details
High Light:

Drilling Rig Mud Pumps

,

Triplex Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
negotiation
Packaging Details
Carton, wooden
Delivery Time
15 days
Payment Terms
T/T, L/C at sight
Supply Ability
1000 sets
Product Description



Wireline core Drilling Rig Mud Pumps / High Pressure Mud Pump




Model: RS 250 MUD PUMP



RS-250 Mud Pump is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.




Quick Details:



Brand Name: ROSCHEN
Model Number: RS-250 Mud Pump
Place of Origin: Germany
Theory: Reciprocating Pump
Power: Hydraulic
Pressure: 25Kw
Structure: Piston Pump
Standard International Standard
Application: Exploration core drilling
Usage: Water
Fuel: Diesel





Packaging & Delivery:


Packaging: wooden boxes
Delivery time: 7-15 days





Specifications



Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in Diesel engine.




Main Technical Specifications:



RS-250 MUD PUMP
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 100mm
Bore 80mm 65mm
Pump speed (s.p.m) 200 116 72 42 200 116 72 42
Output volume (l.p.m) 250 145 90 52 116 96 60 35
Discharge pressure (Mpa) 2.5 4.5 6.0 6.0 4.0 6.0 7.0 7.0
Volumetric efficiency 85%
Mechanical efficiency 85%
Total efficiency 70%
Input power/speed (kw/r.p.m) 15/1500
Multiple grooved pulley D.P (mm) 410(B groove*5)
Input speed of pump (r.p.m) 500
Max. suction head (m) 2.5
Inside diameter of suction hose (mm) 76
Inside diameter of discharge (mm) 51
Overall dimensions (mm) 1100*995*650
Weight (kg) 500(without power)
