Diamond Core Drill Bits
>
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |

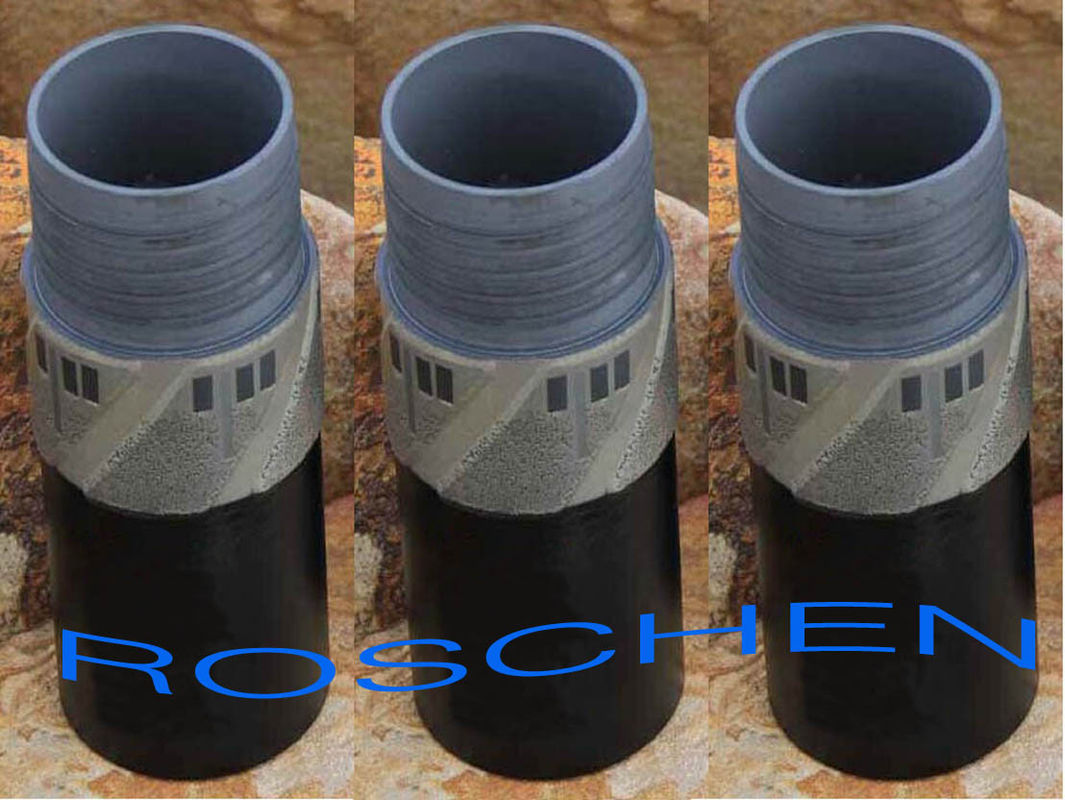

RSUMX Reaming Shells NQ HQ PQ Core Diamond Drill Bit 56mm , 66mm , 76mm
RSUMX DIAMOND REAMING SHELL
Ultramatrix Product
RSUMX DIAMOND reaming shell
RSUMX
Using Ultramatrix technology, and a new pad design, ROSCHEN has made RSUMX diamond impregnated reaming shells to be the longest lasting available. RSUMX is also available with optional heavy duty blanks and dual pads, making it your first choice in all exploration coring applications.
UMX
ROSCHEN’s extensive drilling experience and history of engineering are the drivers behind the incredibly innovative UMX diamond products. By combining patented technologies with customer collaboration, ROSCHEN’s engineers have designed the highest performing diamond reaming shells available.
Ultramatrix
RSUMX diamond impregnated reaming shells feature ROSCHEN’s patented Ultramatrix. Ultramatrix technology enables the use of large synthetic diamonds with a novel formula, increasing wear resistance even in the most difficult formations. Add to this an optional heavy duty blank to produce the ultimate reaming shell for broken formations.
Enhanced Stability
Featuring large, spiral, diamond ground pads, RSUMX reaming shells increase stability and reduce drill string vibration at the face of the bit. Diamond grinding pre-exposes the diamond and allows tighter size control putting more diamond in contact with the rock, stabilizing the bit. The pre-exposure and reduced size variation maximizes available life.
Genuine Q Wireline System
The RSUMX reaming shells are an integrated part of the industry trusted ROSCHEN genuine Q wireline system.
Specifications:
56mm, 66mm, 76mm, 86mm, 89mm, 101mm, 116mm, 130mm
AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
AW, BW, HW, NW, PW, SW, ZW
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQTK | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ3 | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
Further exploration drilling products information, please don't hesitate to contact us.
