30kw Single Acting Triplex Plunger Stroke 110mm Drilling Rig Mud Pumps for mining
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

Drilling Rig Mud Pumps

,

High Pressure Mud Pump

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO, API, CE
Model Number: RS80, RS90, RS100, RS160, RS150, RS250, RS320, RS350, RS450, RS600, RS800, RS1000, RS1200
Payment & Shipping Terms
Packaging Details: wooden box packing
Supply Ability: 1000 sets
Product Description

30kw Single Acting Triplex Plunger Stroke 110mm Drilling Rig Mud Pumps for mining

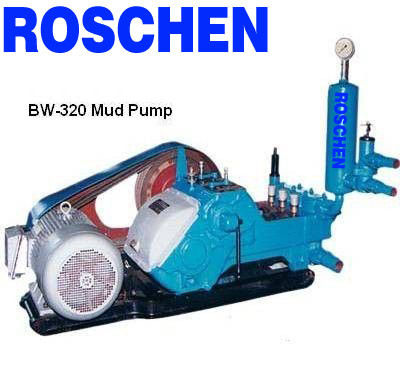

Model: RS-320 Mud Pump

RS-320 MUD PUMP 30kw Single Acting tTriplex Plunger Stroke 110mm Drilling mum pumps for mining
RS-320 MUD PUMP 30kw Single Acting tTriplex Plunger Stroke 110mm Drilling mum pumps for drilling 2000 meters



RS-320 mud pump Description:


RS-320 MUD PUMP is single-acting triplex-plunger pump suitable for core drilling within 2000 meters and hydraulic percussive drilling within 1000 meters. It can fit for 80mm cylinder and 60mm cylinder according to clients demands. It has reliable structure,long life,convenient and low maintenance.



Specifications:



1. Horizontal, triplex, reciprocating, single acting piston pump
2. 2 kinds cylinder diameters, 4 gears
3. Mud and cement capable


30kw Single Acting Triplex Plunger Stroke 110mm Drilling Rig Mud Pumps for mining 0


Technical Parameters:


RS-320 MUD PUMP

Type

Single-acting triplex plunger

Stroke

110mm

Bore

80mm

60mm

Pump speed (s.p.m)

214, 153, 109, 78

214, 153, 109, 78

Output volume (l.p.m)

320, 230, 165, 118

180, 130, 92, 66

Discharge pressure (Mpa)

4.0, 5.0, 6.0, 8.0

6.0, 8.0, 9.0, 10.0

Input power (Kw)

30

Suction pipe dia (mm)

75

Discharge pip dia (mm)

50

Drilling hole depth (m)

Diamond core drilling < 3000

Conventroxal core drilling < 2000

Weight (Kg)

650 (without power)

1000 (with motor)

Overall dimensions (mm)

1280*855*750
