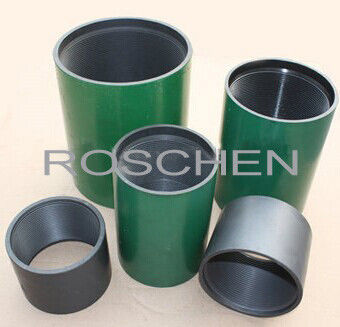

Round NUE Casting Carbon Steel Pipe Coupling 2-3/8 inch to 4-1/2 inch

Round NUE Casting Carbon Steel Pipe Coupling 2-3/8 inch to 4-1/2 inch

Quick Details:

Material: Carbon Steel
Technics: Casting
Type: Coupling
Model Number: BTC
Connection: Thread
Shape: Round
Head Code: Round

Specifications:

1. Size: 2-3/8" , 2-7/8", 3-1/2", 4", 4-1/2"
2. Standard: API 5CT, API 5B
3. Type: NUE
4. Grade: J55, K55, N80, P110

The API external-upset-end (EUE) tubing connection is widely used because it is good, serviceable connection in most wells. The EUE joint has a designed joint strength in tension and pressure strength greater than that of the pipe body and, therefore, is considered a 100% joint efficient connection.

To improve the seal performance of API EUE tubing in high-pressure service, a grooved coupling ,which accepts nonmetallic seal rings, is sometimes used in the coupling (see API SPEC 5CTSR13)

Designed in accordance with API 5CT/5B and are made of good seamless steel. EUE petroleum tubing coupling cover the outer diameter from 77.80mm to 141.30mm, it is bigger than the outer diameter of the non upset threaded end product.

We carry size range of 2-3/8", 2-7/8", 3-1/2", 4" and 4-1/2" in J55, K55, N80, P110 grade. All of our couplings meet the API specification 5CT/5B.

1. Size: 2-3/8” 2-7/8″, 3-1/2”, 4″, 4-1/2″
2. Standard: API 5CT /5B
3. Type: NUE
4. Grade: J55/K55/N80/L80/P110
5. Packaging: wooden pallet, tight wrapped with plastic film or paper carton


Tubing Coupling Size and Dimension:
