3-1/2 inch HQ3 Plastic basket core lifter for Loose / soft formations

10 pcs
MOQ
Negotiation
Price
3-1/2 inch HQ3 Plastic basket core lifter for Loose / soft formations
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

split tube sampler

,

soil sampling equipment

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: 2" - 10"
Payment & Shipping Terms
Packaging Details: carton box
Supply Ability: 50000 pcs stocks
Product Description

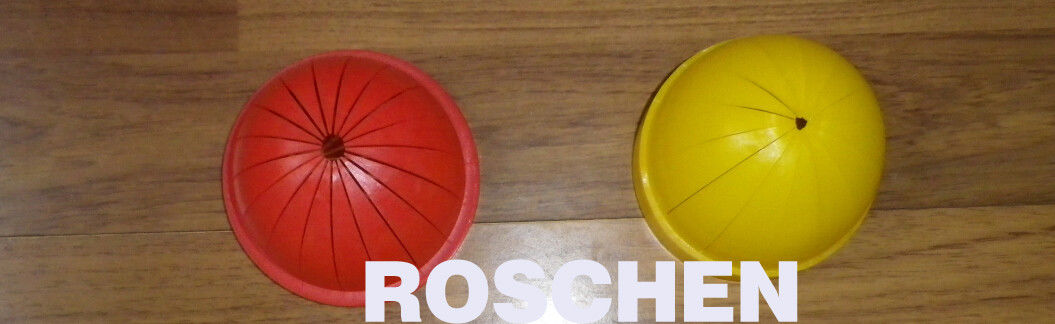

3-1/2 inch HQ3 Plastic basket core lifter for Loose / soft formations




HQ3 Plastic basket core lifter 3-1/2" for prevent water bearing sands from entering hollow stem auger
Plastic soil core catcher 3-1/4" used for HQ3 Rods prevent water bearing sands from entering hollow stem auger

Plastic Core Basket 4-1/2" used for PQ3 drill rods retains loose , soft sample drilling in soil sands formations




Plastic Core Basket 4-1/2" used for PQ3 drill rods prevent water bearing sands from entering hollow stem auger

Plastic catcher 3-1/2" used for NQ3 Rods prevent water bearing sands from entering hollow stem auger


Plastic lifter 4-1/2" used for NQ3 Rods prevent water bearing sands from entering hollow stem auger


Basket core catcher 2-1/2" retains loose , soft sample drilling in soil sands formations


Core catcher 3-1/2" retains loose , soft sample drilling in soil sands formations


Plastic soil core catcher 4-1/2" used for PQ3 Rods prevent water bearing sands from entering hollow stem auger



Introductions:


Steel Basket Core Barrel Bits Usage: Loose, soft formations – use in conjunction with steel core basket

Plastic Basket Core Barrel Bits Usage: Loose, soft formations – use in conjunction with plastic core basket

Plastic Core Basket Usage: Retains loose, soft sample – use in conjunction with plastic basket core barrel bits

Plastic Core lifter can be used to prevent water bearing sands from entering the hollow stem auger I.D. during drilling, while continuing to allow for the sampling tube to pass through.

Additional sizes and styles are available on request.







Plastic Basket Retainer


Installed in the end of a standard or tab sampler to insure the soil sample does not slide out of the sampler as it is being withdrawn from the hole. For use in either the standard heavy duty or tab type samplers.



Core Catcher Retainer Basket


Retainer Baskets Used in conjunction with retainer basket bits, retainer baskets can be used to improve sample recovery in loose formations. Retainer Baskets Roschen retainer baskets are available in soft, medium, and hard plastic. Retainer baskets have flexible fingers that open to allow the soil into the side of core barrels, or Split Spoon Samplers, and the soils without leaking out of Split Spoon Samplers or core barrel. Particularly suitable for sandstone layers, broken rock formations, loose cores that cannot be completely corrugated, or soft formations. Collection, or coring is greatly improved.




Stocks Size Plastic Core Catcher
Auger I.D. PART #
IN MM
1 11/16" 43 2250100
2 1/2" 63.5 2250102
3 1/9" 79 2250103
3 1/2" 88.9 2250105
3 15/16" 100 2250106
4" 101 2250107




Specifications:
Plastic Soil Core Catcher
Auger I.D. PART #
IN MM
2 1/4" 57 2250101
2 1/2" 63.5 2250102
3 1/4" 83 2250103
3 1/2" 88.9 2250104
4 1/4" 108 2250105
4 1/2" 114.3 2250106
5 1/4" 134 2250107
5 1/2" 139.7 2250108
6 1/4" 155 2250109
6 1/2" 165.1 2250110
6 5/8" 168 2250111
7 1/4" 184.15 2250112
7 1/2" 190.5 2250113
