Heavy Duty Drill Rod 3 - 1/2" Friction Welded with Advanced 4140 Grade Materials
  • Heavy Duty Drill Rod 3 - 1/2
  • Heavy Duty Drill Rod 3 - 1/2
  • Heavy Duty Drill Rod 3 - 1/2

Heavy Duty Drill Rod 3 - 1/2" Friction Welded with Advanced 4140 Grade Materials

Place of Origin Germany
Brand Name ROSCHEN
Certification ISO
Model Number 3 1/2 3 1/2 4 1/2 4 1/2 4 1/2
Product Details
High Light:

shank adapter

,

drill extension rod

Payment & Shipping Terms
Minimum Order Quantity
10
Price
$18/pc
Packaging Details
Polywooden packing
Supply Ability
105pcs/day
Product Description

Heavy Duty Drill Rod 3 - 1/2" Friction Welded with Advanced 4140 Grade Materials



Heavy Duty Rods (HD)

ROSCHEN' HD sonic drill rods are the industry's most state of the art rods available today. They are specifically designed for sonic drilling and manufactured using only the most advanced techniques and premium materials.



Features:

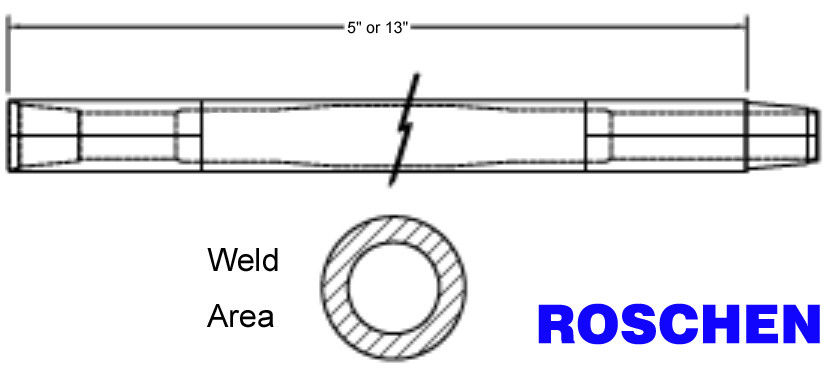

1. 5.65" sq. inch weld area
2. Internally upset midbody - increasing the weld area.
3. 4140 QT tool joints
4. Inertia welded - increased strength due to full face surface welds.
5. Internal flash removed - reducing the potential for stress fractures under the stress of sonic drilling.
6. Heat treated - weld zone to further optimize the mechanical and physical properties of the rod.



SONIC DRILL RODS SPECIFICATIONS
O.D. I.D. THREAD* WEIGHT
in mm in mm lbs/10ft kg/3m
3 1/2 88.9 2 1/4 57.1 HP90 RH 134 59.8
3 1/2 88.9 1 3/4 44.5 2 3/8" IF 137 61.2
4 1/2 114.3 3 1/4 82.55 HP90 RH 216 96.4
4 1/2 114.3 2 1/8 53.98 2 7/8" IF 225 100.5
4 1/2 114.3 3 76.2 ROUSSY 240 107.1


* HP90 is compatible with H90 thread.



SONIC HD DRILL ROD
O.D. I.D.* LENGTH THREAD
3 1/2" 2 1/4" 1' HP90
3 1/2" 2 1/4" 2' HP90
3 1/2" 2 1/4" 5' HP90
3 1/2" 2 1/4" 10' HP90
3 1/2" 2 1/4" 20' HP90
3 1/2" 1 3/4" 1' 2 3/8" IF
3 1/2" 1 3/4" 2' 2 3/8" IF
3 1/2" 1 3/4" 5' 2 3/8" IF
3 1/2" 1 3/4" 10' 2 3/8" IF
3 1/2" 1 3/4" 20' 2 3/8" IF
4 1/2" 3 1/4" 1' HP90
4 1/2" 3 1/4" 2' HP90
4 1/2" 3 1/4" 5' HP90
4 1/2" 3 1/4" 10' HP90
4 1/2" 3 1/4" 20' HP90
4 1/2" 2 1/8" 1' 2 7/8" IF
4 1/2" 2 1/8" 2' 2 7/8" IF
4 1/2" 2 1/8" 5' 2 7/8" IF
4 1/2" 2 1/8" 10' 2 7/8" IF
4 1/2" 2 1/8" 20' 2 7/8" IF
4 1/2" 3" 1' ROUSSY
4 1/2" 3" 2' ROUSSY
4 1/2" 3" 5' ROUSSY
4 1/2" 3" 10' ROUSSY
4 1/2" 3" 20' ROUSSY

*I.D. is measured at the tool joint.
