Professional Fluted Core Lifter HQ NQ for Boart Longyear Barrel System

5pcs
MOQ
$1
Price
Professional Fluted Core Lifter HQ NQ for Boart Longyear Barrel System
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Q Series Core Barrel NQ, HQ, PQ Wireline Core Barrel
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
High Light:

wireline core barrel

,

drilling core barrel

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131
Payment & Shipping Terms
Packaging Details: Carton box
Supply Ability: 5000 pcs stocks
Product Description

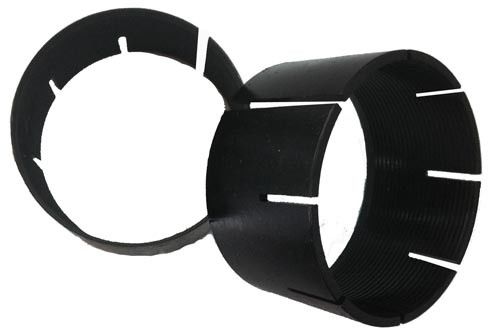

Professional Fluted Core Lifter HQ NQ for Boart Longyear Barrel System




Specifications:

1. Wireline Core barrel Flutted core lifter
2. High quality and long life service
3. Professional production
4. Whole-set drilling tools
5. Longer lifetime
6. Electroplated Diamonds on inside



Model ID(mm) OD(mm)
HQ3 core lifter 60.7 66.5
HQ core lifter 62.67 68.94
HQ3 core lifter case 62.7 71.6
HQ core lifter case 65.56 73.23
PQ3 core lifter 82.56 91.28
PQ core lifter 84.53 91.28
PQ3 core lifter case  86.8 92.5
PQ core lifter case  86.8 96.4



Features:

1. Available in all standard drilling sizes
2. Hardened alloy as raw material,it can serve in a long lifespan
3. Core lifters are divided into slotted  and flutted .They have the advantages of good springness and

long life.
4. Our company produces all kinds of core lifters ,which have the merits of good springness and long

life. The core lifter pedestal experiences salt bath quenching which makes it good stability.


The drilling fluid circuit operates withinthe available annular areaprovided.More specifically, after

travelling through the drill rods, the fluid enters the core barrel.

There it is channelled between the inner and outer tubes, exiting via the throat of the diamond bit, and

back out between the outer tube and bore hole wall to the collar .

At the bit end of the inner tube, core lifter case adjustment and core lifter selection are of great

importance. The core lifter case needs to be placed close enough to the throat of the bit to allow for

efficient core breakage, butundesirable increase in fluid pressureand/or sample washing from the

drilling fluid.

By design, the tapered core lifter slides along the inside of the core lifter case, wedging and securing

itself onto the core during core recovery and breaking.
