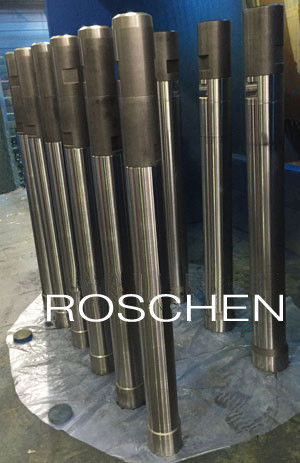

RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer
  • RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer
  • RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer
RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer

RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer

Place of Origin China
Brand Name ROSCHEN
Certification ISO
Model Number 3" 4" 5" 6"
Product Details
Name:
Reverse Circulation Hammer
Material:
High Carbon Steel
Mining Object:
Mining, Ore Machinery, Stone Quarry
Machine:
Hydraulic Crawler Drill Rig
Use:
Ore Mining, Geothermal Drilling
Work Pressure:
17-26 Bar
Usage:
Use Together With Reverse Circulation (RC) Bits
Applications:
DTH Drilling. Coal Mining, Quarry
Model:
Reverse Circulation Drilling
Processing Type:
Forging, Casting
Thread:
Remet And Metzke Connection
Drilling:
Coal Mining, Ore Mining, Exploration Core Drilling
HS Code:
82071990
RC Hammer:
Reverse Circulation RC Hammers
SD Series:
RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer
SD No.:
RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer
Halco Hammer:
Halco Reverse Circulation RC Hammers RC 400 RC 500
Tools:
DTH Drilling Tools
High Light:

Reverse Circulation Hammer

,

RE040 dth hammers and bits

,

RE542 RC Hammer

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiate
Packaging Details
Polywooden box
Delivery Time
5-15 days
Supply Ability
500 pcs
Product Description



RE040 RE542 RE545 RE547 PR52 PR54 Reverse Circulation Hammer RC Hammer


KEY FEATURES AND BENEFITS:

  1.  Simple design, easy maintenance and improved reliability
  2.  Integrated hammer and bit design for better chip removal and bit life
  3.  Improved safety features
  4.  Unique bit retention system as standard
  5.  Rapidly reaches full operating pressure
  6.  New check valve design
  7.  2 piece easy loading sample tube
  8.  Solid piston construction reducing stress and improving life
  9.  Manufactured using premium hardened metals for long life
  10.  Maximum material recovery, up to 98%;
  11.  No cross contamination of samples;
  12.  Handles injection of water, foam, oil, and polymers without performance loss

Product specifications:


1) 3" RC hammers: RE531
2) 4" RC hammers: RE004/RE004R; RE542
3) 5" RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6" RC hammers: RC62/RC62R
5) 8" RC hammers: RC82/RC82R
6) 10" RC hammers: RC100/RC100R


Hammer Bit Shank Hole Range (mm) External Diameter (mm) Length (without bit) mm Weight Connection Thread Working Pressure
RE531 RE531 84-100 81 1069 29 3“ Remet 1.0-3.0Mpa
RE004 RE004 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
RE542 RE542 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
RE543 RE543 120-135 116 1191 62 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
RE545 RE545 122-135 117.5 1261 65 4"-4.5"Remet 4"-4.5"Metzke 1.5-3.5Mpa
RE547 RE547 130-146 124.5 1270 71 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
PR40 PR40 124-142 120.5 1362 80.5 3.5"-4.5"Remet 3.5"-4.5"Metzke 1.5-3.5Mpa
PR52 PR52 126-142 121 1227 68.5 4"-4.5"Remet 4"-4.5"Metzke 1.5-3.5Mpa
PR52R PR52/PR52R 130-146 124 1225 65 4"-4.5"Remet 4"-4.5"Metzke 1.5-3.5Mpa
PR54 PR54 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
MX5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC62/RC62R RC62/RC62R 152-190 146 1320 110 As Request 1.5-3.5Mpa
RC82/RC82R RC82/RC82R 190-250 180 1395 185 As Request 1.5-3.5Mpa
RC100/RC100R RC100/RC100R 250-370 240 1528 328 As Request 1.5-3.5Mpa



Further exploration drilling products information, please don't hesitate to contact us.
