Atlas Copco RC45 Reverse Circulation Button Bits Rock Drilling Water Well Hole Drilling

1 pcs
MOQ
Atlas Copco RC45 Reverse Circulation Button Bits Rock Drilling Water Well Hole Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Button Bits: RC45 Reverse Circulation Button Bits
Brand: Atlas Copco RC45 Reverse Circulation Button Bits
Button: Brother Sewing Machine Reverse Button
Name: Forward And Reverse Button
Sales: Honda Fourtrax Reverse Button For Sale
Reverse Button: John Deere Reverse Button
Bits: Reverse Bits Java
Drill Bit: Atlas Copco RC45 RC50 Button Drill Bit
RC Hammers: RC45 RC Hammers
High Light:

MR120 RC Hammer

,

Mincon RC Hammer

,

MR116 RC Hammer

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: RC45
Payment & Shipping Terms
Packaging Details: Polywood case
Supply Ability: 1000 pcs
Product Description

Atlas Copco RC45 Reverse Circulation Button Bits Fast Drilling Water Well Hole Drilling



Reverse circulation drilling



REVERSE CIRCULATION PERFORMANCE TOOLING


Reverse Circulation (RC) drilling is used to collect rock samples quickly and efficiently using a large rotary drill and air compressor. The high speed and lower cost per meter of RC drilling makes it ideal for obtaining mineral samples in the early phases of an exploration project.



Features:
1. Optimization of inner structure offers faster drilling speed and more stable operation.
2. Easy maintenance with simple inner structure and strong rigidity
3. With all-in-one collective tube, the RC hammer can be replaced without disassembly.
4. With special design of bit, RC drilling for different sizes of holes only by changing bit.


The components of reverse circulation DTH drilling tools:
1. RC drill bit
2. RC hammer
3. Double drilling pipe


Technical specifications:




ROSCHEN Reverse Circulation Bits Specifications
RE531 RC bits
ROSCHEN Code: ROS RC 30
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
86 3 3/8 6x12 4x12 35 2 84 4.2 RE531-86
89 3 1/2 8x12 8x12 35 2 87 4.3 RE531-89
95 3 3/4 8x12 8x12 35 2 93 4.6 RE531-95
102 4 8x12 8x12 35 2 100 4.9 RE531-102
RE004 RC bits
ROSCHEN Code: ROS RC 40
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
114 4 1/2 8x14 6x14 35 2 112 11.5 RE004-114
118 4 5/8 8x14 6x14 35 2 116 11.7 RE004-118
121 4 3/4 8x14 6x14 35 2 119 12 RE004-121
127 5 8x14 8x14 35 2 125 12.4 RE004-127
RE542
ROSCHEN Code: ROS RC 50
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
121 4 3/4 8x14 6x14 35 2 119 10.6 RE542-121
124 4 7/8 8x14 8x13 35 2 122 10.8 RE542-124
127 5 8x14 8x14 35 2 125 11 RE542-127
130 5 1/8 8x14 10x14 35 2 128 11.3 RE542-130
RE543
ROSCHEN Code: ROS RC 50
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
124 4 7/8 8x14 8X13 35 2 122 10.8 RE543-124
127 5 8x14 8X14 35 2 125 11 RE543-127
130 5 1/8 8x14 10X14 35 2 128 11.3 RE543-130
133 5 1/4 8x16 10X14 35 2 131 11.8 RE543-133
RE545
ROSCHEN Code: ROS RC 50
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
124 4 7/8 8x14 8X13 35 2 122 13.3 RE545-124
127 5 8x14 8X14 35 2 125 13.5 RE545-127
133 5 1/4 8x16 10X14 35 2 131 13.8 RE545-133
136 5 3/8 8x16 6x16+3x14 35 2 134 14.2 RE545-136
PR40 RC bit
ROSCHEN Code: ROS RC 50
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
124 4 7/8 8x14 8X13 35 2 122 14.3 PR40-124
127 5 8x14 8X14 35 2 125 14.7 PR40-127
133 5 1/4 8x16 10X14 35 2 131 15.2 PR40-133
138 5 4/9 8x16 6x16+3x14 35 2 136 15.8 PR40-138
PR52 RC bit
ROSCHEN Code: ROS RC 55
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
133 5 1/4 8x16 10x14 35 2 131 11.2 PR52-133
136 5 3/8 8x16 6x16+3x14 35 2 134 11.5 PR52-136
140 5 1/2 8x16 6x16+3x14 35 2 138 11.9 PR52-140
143 5 5/8 8x16 6x16+3x14 35 2 141 12.3 PR52-143
RE547 RC bit
ROSCHEN Code: ROS RC 55
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
136 5 3/8 8x16 6x16+3x14 35 2 134 15.1 RE547-136
140 5 1/2 8x16 6x16+3x14 35 2 138 15.5 RE547-140
143 5 5/8 8x16 6x16+3x14 35 2 141 15.8 RE547-143
146 5 3/4 8x16 6x16+3x14 35 2 144 16.3 RE547-146
PR54
ROSCHEN Code: ROS RC 55
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
136 5 3/8 8x16 6x16+3x14 35 2 134 18.2 PR54-136
140 5 1/2 8x16 6x16+3x14 35 2 138 18.5 PR54-140
143 5 5/8 8x16 6x16+3x14 35 2 141 18.8 PR54-143
146 5 3/4 8x16 6x16+3x14 35 2 144 19.2 PR54-146
Notes:
Metzke, Remet thread is available!
Any special size of Reverse Circulation bits will be available by requests.

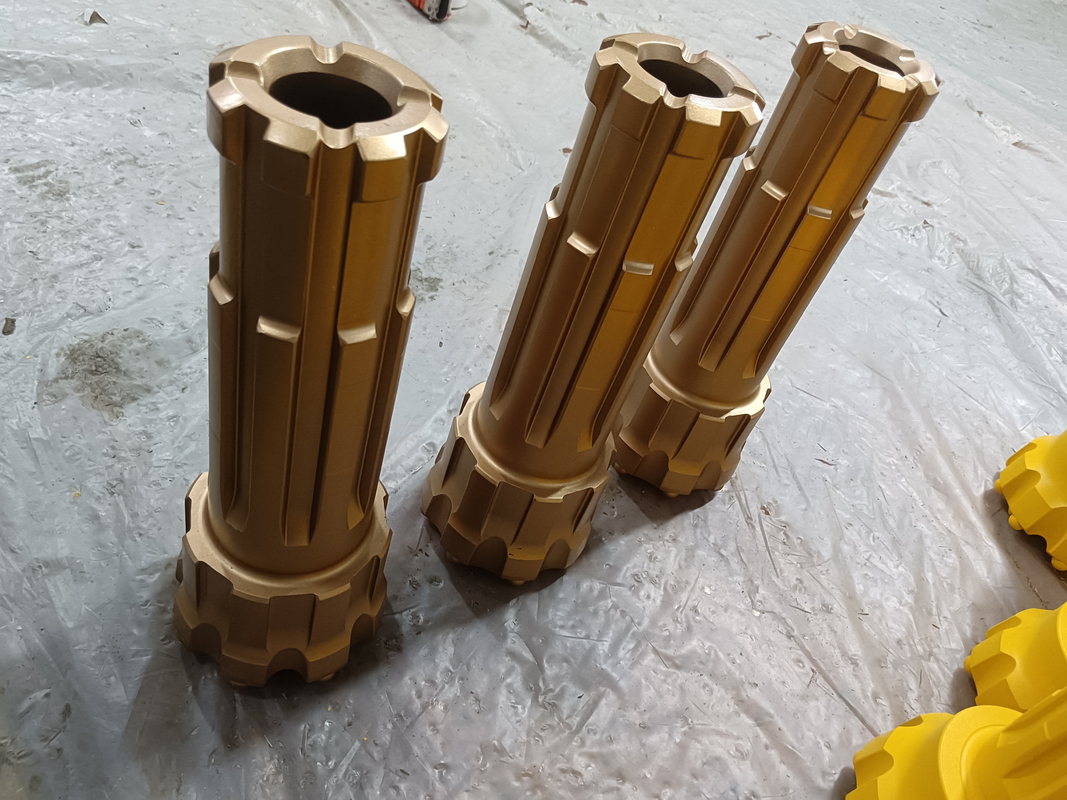

RC Hammer Bits Photos:
