Reverse Circulation Hammer
>
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | RC45 |

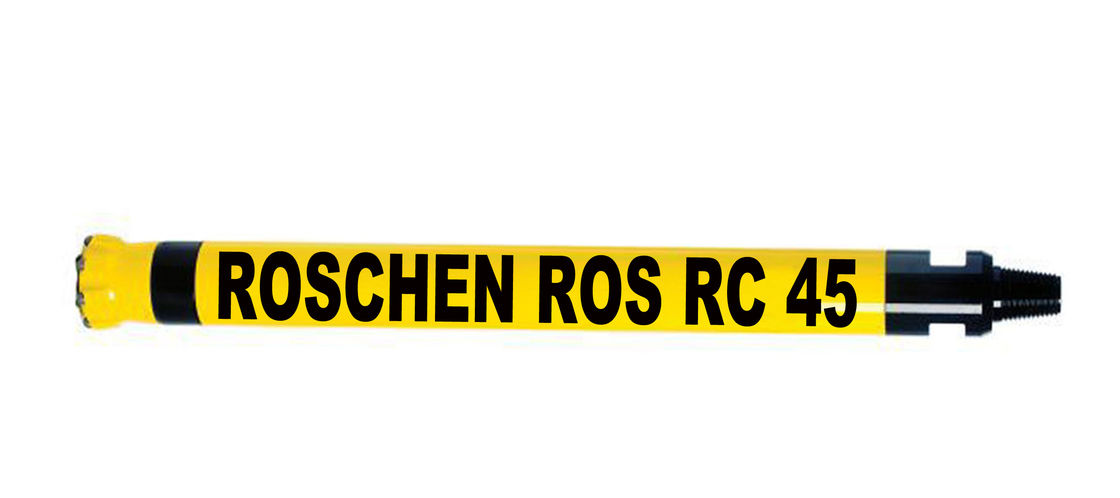

Secoroc COP RC45 for Sale RC Bits 140mm High Productivity Atlas Copco Reverse Circulation Hammer
Roschen's Reverse Circulation (RC) Hammers can instead of Atlas Copco's RC Hammers.
Roschen Reverse Circulation Hammer used same materials with Atlas Copco, our products quality can replace of Atlas Copco. We focus on this hammer than them.
Secoroc COP RC45
Secoroc COP RC45 for Sale RC Bits 140mm High Productivity Atlas Copco Reverse Circulation Hammer
Secoroc COP RC45
Smaller, lighter, faster.
We think you should carry a lighter weight. That's why we've developed the smallest, fastest and lightest RC hammer ever. The Roschen Secoroc COP RC45 hammer will give you both easy handling and outstanding drilling performance. No compromises. All in all, Secoroc COP RC45 offers high productivity, a long service life and – most important – efficient sampling.
Smaller, lighter, faster:
The Secoroc COP RC45 reverse circulation hammer features a revolutionary new design. It's 40 % shorter than the nearest competitor. And shorter means less weight. The COP RC45 is more than 30 % lighter than most hammers doing the same job.
High Frequency:
The COP RC45 has a unique air chamber design. Much smaller chambers build up pressure faster and makes the piston strike at a much faster rate. The result is marginally lower impact energy and leads to a great increase in power output and a sizeable improvement in penetration rate.
Efficient Sampling:
The COP RC45 features Secoroc's unique tube retention system. This design makes it easy to service and replace tubes since you don't have to disassemble the hammer. Quite simply this means minimum down-time and maximum time producing samples.
Features:
• Maximized recovery of samples.
• High performance from advanced design.
• Best energy transmission from complementary hammer and bit designs.
• Easy to service; lighter, shorter and fewer parts.
• Working pressure: 10–35 bar
• Air consumption: 534 l/s (1131 scfm)
• Piston weight: 10,4 kg
• Frequency: 3360 strokes/min
• Hole size: 127–140 mm (5.5")
DHD SHANK HAMMER
| Model | Product code | Thread connection | Outer diameter (mm) | Rec.hole size (mm) | Shank style | Length without bit(mm) | Weight without bit(kg) | Working pressure (bar) |
| 3.5" | 223000 | API2 3/8"reg pin | 80 | 90-115 | DHD3.5 | 990 | 28 | 14-24 |
| 4" | 230000 | API2 3/8"reg pin | 98 | 110-138 | DHD340 | 1045 | 38 | 14-24 |
| 5" | 240000 | API3 1/2"reg pin | 126 | 138-165 | DHD340 | 1214 | 85 | 14-24 |
| 6" | 252000 | API3 1/2"reg pin | 142 | 152-203 | DHD340 | 1300 | 98 | 14-24 |
| 8" | 260000 | API4 1/2"reg pin | 180 | 203-271 | DHD340 | 1522 | 190 | 16-22 |
| 12" | 282000 | API6 5/8"reg pin | 274 | 311-445 | DHD112 | 1938 | 675 | 14-20 |
| ROSCHEN RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
Main Features:
1) Simple structure ensure the easy operation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts and operation parts.
3) The good seal effect eliminates the problems caused by water and flushing entering into the inner cylinder of hammer.
4) Smooth and stable speed.
5) Excellent for casing system and water well projects.
