| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | ODEX 115 140 165 |

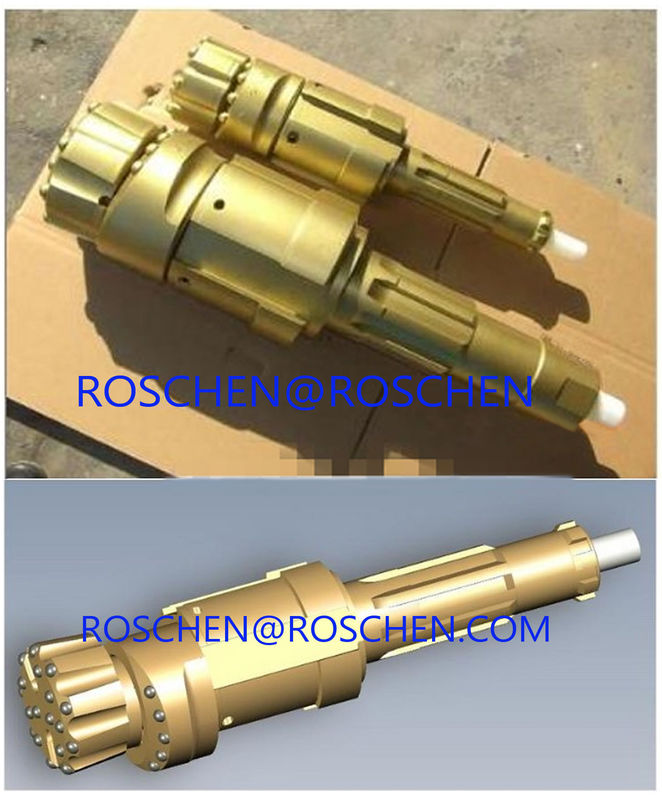

ODEX 140 Down The Hole Drilling , Downhole Drilling Tools with DHD350 Shank
Overburden Odex Drilling System
Overburden Odex Drilling System ODEX 140 with DHD350 Shank for Down The Hole Drilling
DTH casing advancement systems
Our Roschen Tubex system
When simultaneously drilling and casing through loose overburden materials our Tubex system will give you a great result. Tubex is a cost efficient system leaving less material behind in the hole.
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.
| ODEX system (Overburden ODEX Drilling System) | ||||||||
| Model | Casing sizes | Min. inner dia. of casing shoe | Reaming Dia. | Hammer shank | Drill pipe | |||
| Max. OD | Min. ID | Thread | O.D. | Wrench Flat | ||||
| ODEX90 | 115 | 102 | 90 | 123 | DHD3.5/COP32/QL30 | API 2 3/8" REG | 76 | 65 |
| ODEX115 | 142 | 128 | 115 | 152 | DHD340/COP44/SD4/QL40/M40 | API 2 3/8" REG | 76 | 65 |
| ODEX140 | 171 | 157 | 140 | 187 | DHD350R/COP54/SD5/QL50/M50 | API 2 3/8" REG | 89 | 65 |
| ODEX165 | 196 | 183 | 165 | 211 | DHD360/COP64/SD6/QL60/M60 | API 2 3/8" REG | 114 | 95 |
| ODEX190 | 222 | 205 | 190 | 237 | DHD360/COP64/SD6/QL60/M60 | API 3 1/2" REG | 114 | 95 |
| ODEX240 | 273 | 261 | 240 | 308 | DHD380/COP84/SD8/QL80/M80 | API 3 1/2" REG | 114 | 95 |
| ODEX280 | 324 | 305 | 280 | 378 | DHD1120/SD10/NUMA100 | API 4 1/2" REG | 114 | 95 |
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc.
Overburden Odex Drilling System
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 10 - 15 days
Transportation:
By air, By Express or By sea according to your requests.
