H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm

China H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm supplier
H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm supplier H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm supplier H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm supplier

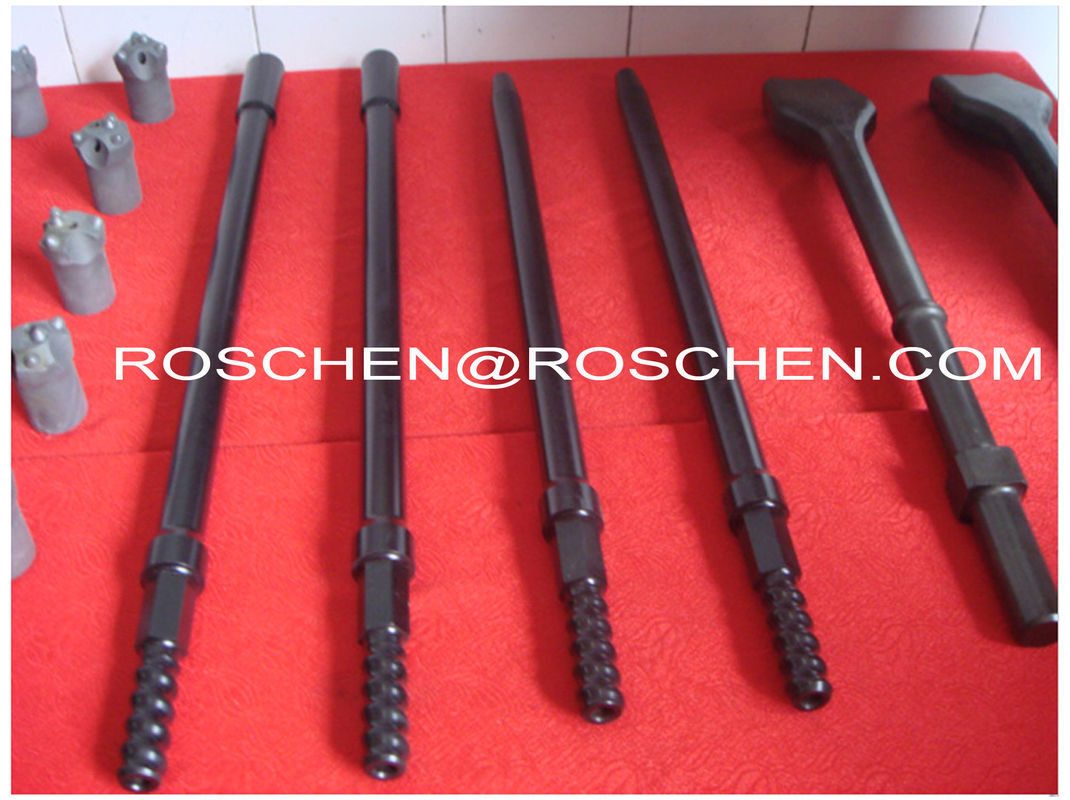

Large Image :  H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm

Product Details:

Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: Hex22*108/hex25*159

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiate
Packaging Details: Carton And Wooden Case
Supply Ability: 1500 sets per month
Contact Now
Detailed Product Description
Model Number: Integral Drill Rod Shank Type: Hex22*108/hex25*159
Condition: New Type: Drill Pipe, Integral Drill Rod
Processing Type: Forging Usage: Tunneling, Mining,quarrying Rock Drilling
Material: Tungsten Carbide And Tungsten Carbide, High Manganese Steel Application: Quarry Or Mining Or Well Drilling
Certification: API, API 5DP, ISO9001, CE After-sales Service: 7X24hours Available
Color: As Requirement Package: Carton And Wooden Case
Length: 400mm-6000mm Diameter: H35 D32 D38 D46 D52
Product Name: MF Rod

H19 Hex Chisel Bit Integral Rock Drill Rods 19*108mm Stable And Reliable


H19 Hexagonal Chisel Bit Integral Rock Drill Rods 19mm 108mm Stable And Reliable


Integral Drill Steel is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Regarding Integral drill steels, the quality of a steel material and a tungsten carbide is very important to get good drilling performance.


According to different application, different lengths are available from 400mm to 5000mm usually.

Shank size:hex19/ 22/ 25mm including plug hole rods

Diameter: 28~41 mm
Length: 400~5000mm


It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.


Application:
• Widely used in drifting, tunneling, benching, and long hole drilling
• Blast Hole Drilling
• Africa Copper Mining
• Zambia copper belt province, Africa
• Chile Copper Mining


Mainly Products:

Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51


Specifications:


Shank Style Length Head Diameter
Mm foot/inch Mm Inch
Hex19 × 108mmWe can produce as your request of carbide size, different length of drill rods. 400 ~ 4,000 1' 4" ~ 13' 1" 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1' 4" ~ 31' 6" 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1' 11 5/8" ~ 21' 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2' 7" ~ 21' 35 ~ 42 1 3/8 ~ 1 21/32



H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm
H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm


H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm









FAQ



The information about dth drill bit you may like to know before order:


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight


2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment


3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.


5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time


6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
