Tricone Drill Bit
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | API, ISO |
| Model Number | 9 7/8 |
Water Well Drilling Tricone Drill Bit 9 7/8" IADC Code 537 Alloy Steel Material
TRICONE ROCK DRILL BITS 9 7/8" For Water Well Drilling
TRICONE ROCK DRILL BITS 9 7/8" IADC Code 537 For Water Well Drilling

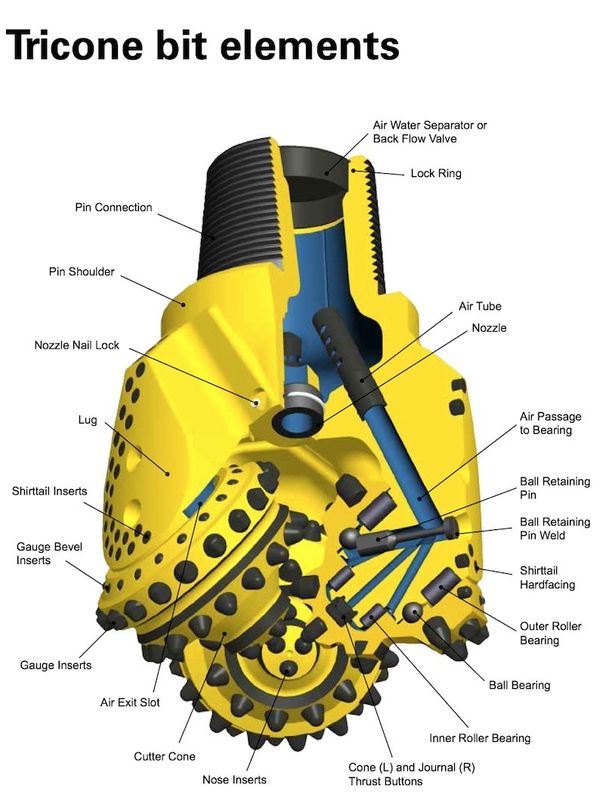

Tricone bit
The tri-cone bit is an important tool for oil drilling, and its performance will directly affect the drilling quality, drilling efficiency and drilling cost. The tri-cone bit design is mostly based on practical experience, combined with trial and error method, repeated design and calculation, so the design accuracy is low, the cycle is long, it is difficult to improve the design quality, and only one bit can be designed for each calculation, and the efficiency is low.
Product advantages
The most widely used in oil drilling and geological drilling is the roller bit. The roller bit has the effect of impacting, crushing and shearing the fractured formation rock when it is rotated. Therefore, the roller bit can adapt to various layers of soft, medium and hard. Especially after the emergence of the jet-type cone bit and the long-nozzle bit bit, the drilling speed of the roller bit has been greatly improved, which is a major revolution in the development history of the cone bit. According to the type of teeth, the roller bit can be divided into milling gear (steel tooth) roller bit, insert (steel carbide tooth on the cone), roller bit; can be divided into single cone and double cone according to the number of cones. , three cones and multi-cone bits. The most widely used and most commonly used is the tri-cone bit.
In the oil, exploration and various drilling industries, roller bit is an indispensable part, but the roller bit is too expensive for some drilling industry, which has prompted some drilling industry to make a big impact on second-hand cone bits. Interest, its low price, reliable quality (only 1/3 of its life in oil drilling), a lot of cost for the drilling industry, so the second-hand roller bit has become an important part of some drilling industry.
| Tricone Rolle Bits Product specifications: | |
| Model | Milled tooth bits tricone for water well,TCI bits tricone for water well |
| IADC Code | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 | |
| Bearing Type | H--Friction bearing; G--Roller bearing; F--Floating Bearing |
| Sealing Type | HJ(metal sealed journal bearing) |
| HA (rubber sealed journal bearing) air cooled bearing type | |
| Size | From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit |
| Material | alloy steel, tungsten carbide insert |
| Extra Feature | 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection |
| Applicable Formation | Very soft, soft, medium soft, hard, medium hard, very hard formation |
| Application | Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work. |
| NO. | TRICONE ROCK BIT SIZE | API THREAD REG.PIN | |
| in | mm | ||
| 1 | 3 3/4 | 95.3 | 2 3/8 |
| 2 | 3 7/8 | 98.4 | 2 3/8 |
| 3 | 4 1/8 | 104.8 | 2 3/8 |
| 4 | 4 1/4 | 108 | 2 3/8 |
| 5 | 4 1/2 | 114.3 | 2 3/8 |
| 6 | 4 5/8 | 117.5 | 2 7/8 |
| 7 | 4 3/4 | 120.7 | 2 7/8 |
| 8 | 4 7/8 | 123.8 | 2 7/8 |
| 9 | 5 1/2 | 139.7 | 3 1/2 |
| 10 | 5 5/8 | 142.9 | 3 1/2 |
| 11 | 5 2/3 | 143.9 | 3 1/2 |
| 12 | 4 3/4 | 146.1 | 3 1/2 |
| 13 | 5 7/8 | 149.2 | 3 1/2 |
| 14 | 6 | 152.4 | 3 1/2 |
| 15 | 6 1/8 | 155.6 | 3 1/2 |
| 16 | 6 1/4 | 158.8 | 3 1/2 |
| 17 | 6 1/2 | 165.1 | 3 1/2 |
| 18 | 6 5/8 | 168.3 | 3 1/2 |
| 19 | 6 3/4 | 171.5 | 3 1/2 |
| 20 | 7 1/2 | 190.5 | 4 1/2 |
| 21 | 7 5/8 | 193.7 | 4 1/2 |
| 22 | 7 7/8 | 200 | 4 1/2 |
| 23 | 8 3/8 | 212.7 | 4 1/2 |
| 24 | 8 1/2 | 215.9 | 4 1/2 |
| 25 | 8 5/8 | 219.1 | 4 1/2 |
| 26 | 8 3/4 | 222.3 | 4 1/2 |
| 27 | 9 1/2 | 241.3 | 6 5/8 |
| 28 | 9 5/8 | 244.5 | 6 5/8 |
| 29 | 9 7/8 | 250.8 | 6 5/8 |
| 30 | 10 1/2 | 266.7 | 6 5/8 |
| 31 | 10 5/8 | 269.9 | 6 5/8 |
| 32 | 11 | 279.4 | 6 5/8 |
| 33 | 11 5/8 | 295.3 | 6 5/8 |
| 34 | 12 | 304.8 | 6 5/8 |
| 35 | 12 1/4 | 311.2 | 6 5/8 |
| 36 | 12 5/16 | 312.7 | 6 5/8 |
| 37 | 13 3/8 | 314.3 | 6 5/8 |
| 38 | 12 7/16 | 315.9 | 6 5/8 |
| 39 | 12 5/8 | 320.7 | 6 5/8 |
| 40 | 13 1/8 | 333.4 | 6 5/8 |
| 41 | 13 1/2 | 342.9 | 6 5/8 |
| 42 | 13 5/8 | 346.1 | 6 5/8 |
| 43 | 13 3/4 | 349.3 | 6 5/8 |
| 44 | 14 1/2 | 368.3 | 7 5/8 |
| 45 | 14 3/4 | 374.7 | 7 5/8 |
| 46 | 15 1/2 | 393.7 | 7 5/8 |
| 47 | 16 | 406.4 | 7 5/8 |
| 48 | 17 1/2 | 444.5 | 7 5/8 |
| 49 | 18 7/8 | 479.4 | 7 5/8 |
| 50 | 20 | 508 | 7 5/8 |
| 51 | 22 | 558.8 | 7 5/8 |
| 52 | 24 | 609.6 | 7 5/8 |
| 53 | 26 | 660.4 | 7 5/8 |
| 54 | 28 | 711.2 | 7 5/8 |
| 55 | 30 | 762 | 7 5/8 |
