| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | 16" /11" |

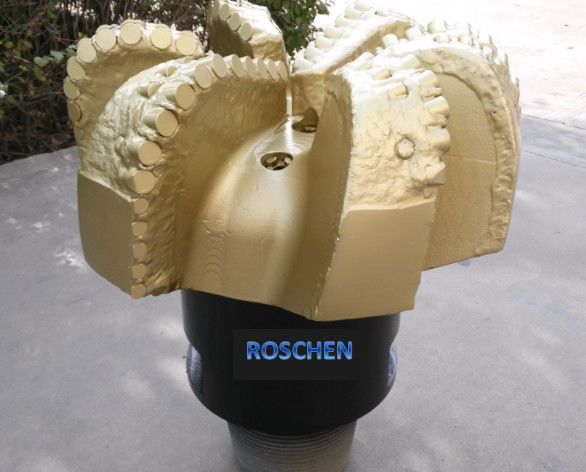

16" PDC Drill Bit / 11" PDC Drill Bit Oil Rig PDC Bits Diamond Core Drill Bit
1. PDC DRILL BITS - STANDARD CONNECTION SIZES
PDC bit is an integral drill which hasn’t activity components. The structure of PDC bit is very simple, it generally includes drill body, cutting teeth, nozzle and junk slot, etc.PDC bit can be divided into two types: steel body and tungsten carbide matrix. The surface of steel body PDC bit is easily to be eroded. While tungsten carbide matrix PDC bit is difficult to eroded.
| BIT SIZE(INCH) | API REGULAR PIN(INCH) | RECOMMENDED MAKE UP TORQUE(KN.M) |
| 4 1/2 to 4 3/4 | 2 7/8 API | 6.0~7.5 |
| 5 1/8 to 7 3/8 | 3 1/8 API | 9.5~12 |
| 7 1/2 to 9 3/8 | 4 1/2 API | 16.0~22 |
| 9 1/2 to 14 1/2 | 6 5/8 API | 38~43 |
| 14 5/8 to 17 1/2 | 7 5/8 API | 46~54 |
2. Rough Specification
|
Matrix & steel Body PDC Bit
|
|
| 1 . PDC Bit( Matrix Body) | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
3. PDC ADVANTAGES
PDC Drill Bits are equipped with Hardened Alloy Steel base material;High performance PDC-Cutters;Carbide and Diamond gauge protection;Carbide/Diamond Shock Studs;Threaded or Plain Carbide Nozzles for Flushing.
Above features are subject to changes and modifications according to customers' requirements.
1.Certified by ISO9001&API
2. High quality with reasonable price
3. Fast drilling rate
4. Strong cutting structure durability
5. Different sizes as required
6. pdc drill bit,diamond bit,pdc core bit,diamond core bit,impregnated bit,pdc cutters
We are a Robert Roschen family owned Global leading manufacturer of rock drilling tools, like Roller Tricone Rock Bits, Hole Opener, Single Cone Roller Bits, PDC Bits, Diamond PCD Tricone Drill Bits, DTH Drilling Tools, such as DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
Our products are widely used in oil and gas drilling, coal mining, dam construction, tunnel, transportation, water well, geothermal well drilling field and some others are used in stone, automobile, cast iron, ceramic, hard alloy, fiber, semiconductor, magnetic materials etc. cutting and grinding area.
Our main products include PDC cutter, PDC bit, Diamond Grinding Wheel, PCD&CBN Cutting tools, we also supply Thread button bits, Roller bits, Cutting pick, Drill rod, etc
