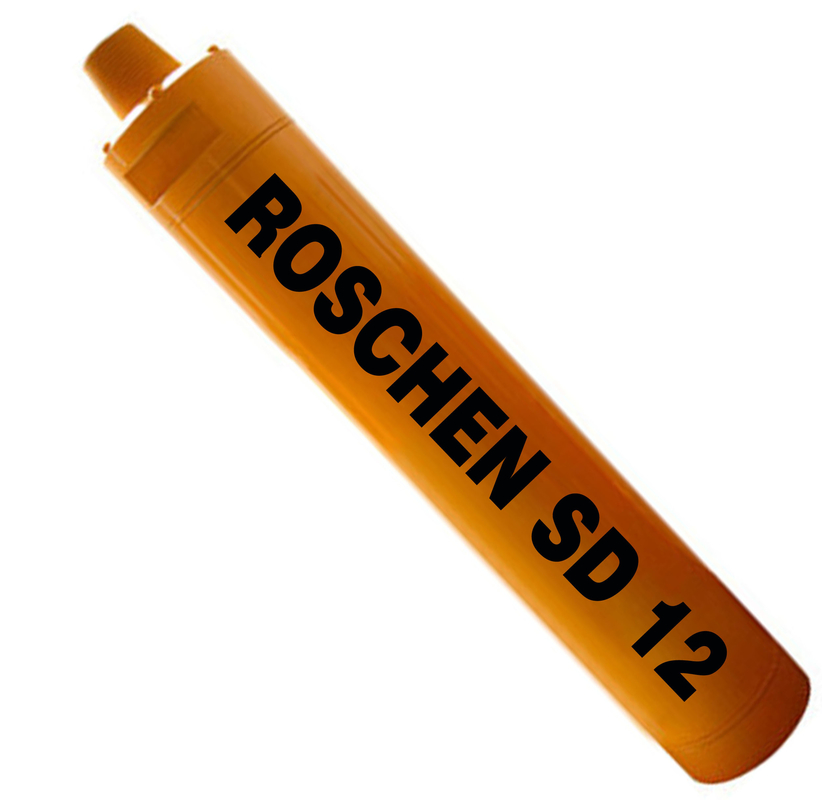

12 inch DTH hammer
Model: SD12, DHD1120, NUMA120, NUMA125, QL120, ROS120
DTH hammer is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rocks. Drilling method by DTH Hammer exerts high drilling performance especially for drilling hard rock and contributes for shrotening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, mining drilling, blast hole drilling, etc.
Roschen company makes and supplies the finest and most efficient down-the-hole(DTH) hammers and bits for the mining, construction and water well industries. Roschen DTH Hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. Ths equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.
Drill and blast engineers and water well contractors trust Roschen's DTH hammer equipment because of the precision engineering and high standards of drilling efficiency built into each of our DTH hammers and button bits.
Roschen DTH Hammers are flexible, and designed to work with various industry standard shank designs and a wide range of standard size hammers. Whatever your application, Roschen has the solution to match your requirements.
Advantages:
. Advanced hammer designs with high power and air efficiency increases productivity.
. Tailored product offering covers all your applications and conditions.
. Easy service and maintenance designs reduces machine downtime.
. Generic and proprietary shank options give you flexibility and reliability.
| Roschen 12 inch DTH hammer Technical Parameters | |||||
| Length(no bit) | Weight(no bit) | External diameter | Bit Shank | Hole Range | Connection thread |
| 1880mm | 487kg | Ø275mm | SD12 | Ø305~Ø381 | API 6 5/8" Reg |
| Working Pressure | Impact rate at 1.7 MPa | Recommended Rotation speed | Air Consumption | ||
| 1.0 MPa | 1.8 MPa | 2.4 MPa | |||
| 1.0 ~ 23.0 MPa | 16 Hz | 15 ~ 25 r/min | 30m3/min | 56m3/min | 78m3/min |
| Length(no bit) | Weight(no bit) | External diameter | Bit Shank | Hole Range | Connection thread |
| 1880mm | 472kg | Ø275mm | DHD112 | Ø305~Ø381 | API 6 5/8" Reg |
| Working Pressure | Impact rate at 1.7 MPa | Recommended Rotation speed | Air Consumption | ||
| 1.0 MPa | 1.8 MPa | 2.4 MPa | |||
| 1.0 ~ 23.0 MPa | 20 Hz | 15 ~ 25 r/min | 30m3/min | 56m3/min | 78m3/min |
| Length(no bit) | Weight(no bit) | External diameter | Bit Shank | Hole Range | Connection thread |
| 1960mm | 470kg | Ø275mm | Numa125 | Ø305~Ø381 | API 6 5/8" Reg |
| Working Pressure | Impact rate at 1.7 MPa | Recommended Rotation speed | Air Consumption | ||
| 1.0 MPa | 1.8 MPa | 2.4 MPa | |||
| 1.0 ~ 23.0 MPa | 20 Hz | 15 ~ 25 r/min | 28m3/min | 50m3/min | 71m3/min |
| ROSCHEN DTH Hammers Technical Specifications | |||||||
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 2" | BR2 | ROS 11 ROS 22 | RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | ||||||
| 1.4Mpa | 5m3/min | ||||||
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | |||||||
| M30 | 1.5Mpa | 9m3/min | |||||
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | |||||||
| QL40 | |||||||
| SD4 | 1.8Mpa | 10m3/min | |||||
| M40 | 2.4Mpa | 15m3/min | |||||
| 5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/ API 3 1/2" Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | |||||||
| QL50 | |||||||
| SD5 | 1.8Mpa | 15m3/min | |||||
| M50 | 2.4Mpa | 23m3/min | |||||
| 6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | |||||||
| QL60 | |||||||
| SD6 | 1.8Mpa | 20m3/min | |||||
| M60 | 2.4Mpa | 28.5m3/min | |||||
| 8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | |||||||
| QL80 | 1.8Mpa | 26m3/min | |||||
| SD8 | 2.4Mpa | 34m3/min | |||||
| M80/M85 | |||||||
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min | |||||
| ROS 100 | 2.4Mpa | 55m3/min | |||||
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min | |||||
| Numa 120 | 2.4Mpa | 78m3/min | |||||
| 15" | Numa 150 | ROS 150 | API 6 5/8"Reg | ¢530mm-¢660mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| DHD1150 | 1.8Mpa | 56m3/min | |||||
| QL150 | 2.5Mpa | 78m3/min | |||||
| 18" | Numa 180 | ROS 180 | API 6 5/8"Reg | ¢600mm-¢860mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| DHD1180 | 1.8Mpa | 56m3/min | |||||
| QL180 | 2.5Mpa | 78m3/min | |||||
| 24" | Numa 240 | ROS 240 | API 6 5/8"Reg | ¢775mm-1000mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| QL 240 | 1.8Mpa | 56m3/min | |||||
| SD 24 | 2.5Mpa | 78m3/min | |||||
| Notes: | |||||||
| Any Spline is available | |||||||
| API, Metzke, Remet , Fabe thread is available! | |||||||
| Any special typ shank of DTH Hammer will be available by requests. | |||||||
