Drilling Mud Pump
>
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO, API, CE |
| Model Number | RS80, RS90, RS100, RS160, RS150, RS250, RS320, RS350, RS450, RS600, RS800, RS1000, RS1200 |

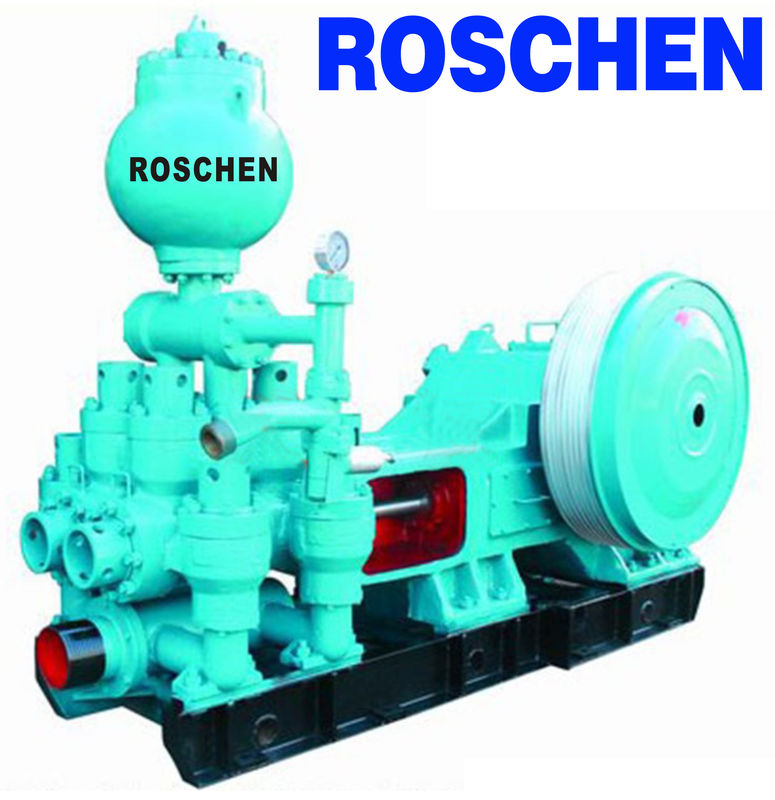

Compact Diesel Engine Drilling Mud Pump 132KW with Electric Motor
Model: RS-1000 Mud pump
Horizontal Triplex Mud pump
Horizontal triplex single acting reciprocation piston pump
Horizontal Triplex Mud Pump BW1000 Single Acting Reciprocation with Diesel Engine
Horizontal Triplex Mud Pump BW1000 Single Acting Reciprocation with Diesel Engine , Deutz Engine, Cummins Engine
RS-1000 Mud Pump Description:
RS-1000/12 mud pump is a horizontal, triplex, single acting reciprocation piston pump. It can be driven by diesel engine, electric motor or hydraulic motor, and it is reliable and agile and simple for operation. It can be controlled at close range or long-distance. It also has many other merits such as compact structure, running smoothly, large-scale variable rates of flow, high output pressures, longer service life of the wearing parts and steady performance, good intensity and rigidity, plentiful standard parts and interchangeable parts and so on.
The pump has 5 shifts to give birth to 5 different discharge and pressure, and its parameters are reasonable to meet different construction process demands. It is mainly used to match horizontal directional pipe laying drilling machine that is 100t or so, also it can meet the needs of construction for water well and earth heat, superficial layer oil drilling and mine drainage.
Features:
1. Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, motor, diesel engine
2. The design on the use of new ideas, new structure, new materials, new technology;
3. Horizontal pump to improve standardization, seriation, generalization,crankshaft, connecting rod body, the cross head, the pump head and some other components related to serialization and the universal, the other components of the reduced species
4. Loss of long life, high reliability
Technical Parameters:
|
Model |
RS-1000, RS-1000/12 Mud Pump |
||||
|
Type |
Horizontal, triplex, single acting reciprocation piston pump |
||||
|
Cylinder bore(mm) |
φ135 |
||||
|
Stroke(mm) |
150 |
||||
|
Pump speed(min-1) |
158 |
130 |
91 |
59 |
37 |
|
Discharge(l/min) |
1000 |
835 |
580 |
380 |
235 |
|
Pressure(MPa) |
6 |
7 |
10 |
12 |
12 |
|
Driving Power(Kw) |
132KW |
||||
|
Suction Pipe Dia.(mm) |
φ127 |
||||
|
Discharge Pipe Dia.(mm) |
φ76 |
||||
|
Weight (Kg) |
3500 |
||||
