| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 2 1/4″ (57mm) DK Hollow Stem Auger 2 1/4″ (57mm) I.D. x 5 5/8″ (143mm) O.D. x 5′ (1524mm) |

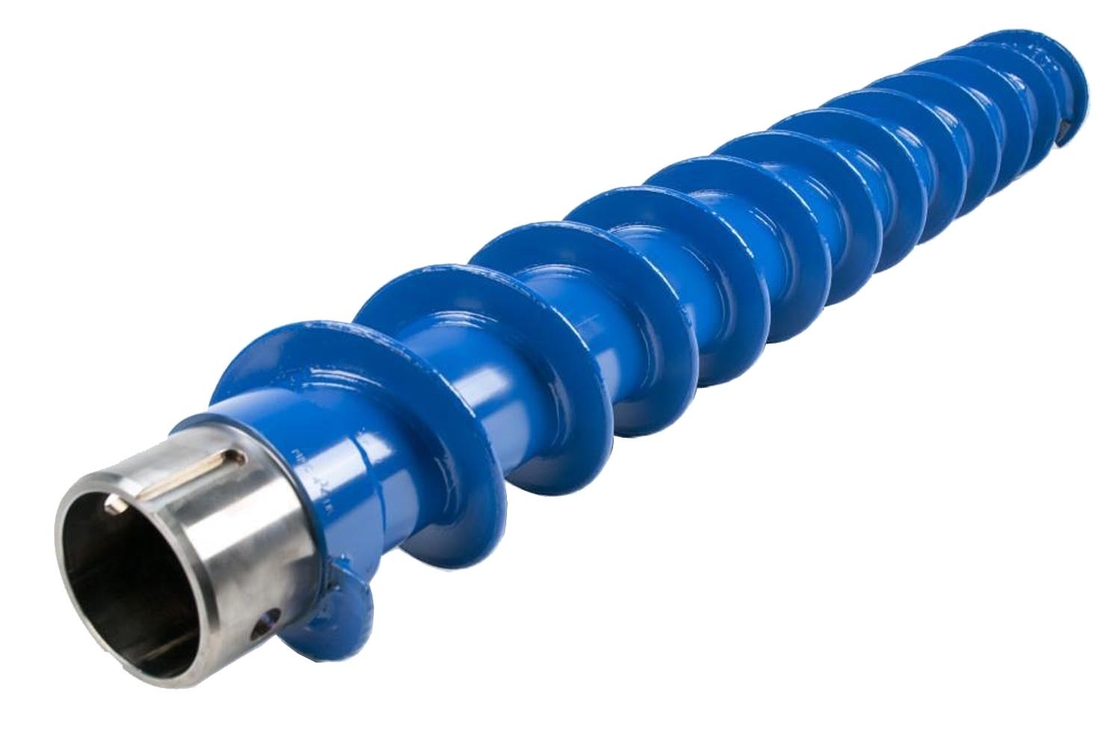

2 1/4″ (57mm) Double Key Hollow Stem Auger
All 2 1/4″ (57mm) Double Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 5″ pitch. The tool joints are made from 4142 alloy steel and feature single-bolt connections.
Specifications:
| No | Description | Part # | Lbs. | Kg. |
| Auger Section | ||||
| 1 | 2 1/4″ (57mm) DK Hollow Stem Auger 2 1/4″ (57mm) I.D. x 5 5/8″ (143mm) O.D. x 5′ (1524mm) | A214200 | 52 | 23.5 |
| 2 | 2 1/4″ (57mm) DK Drive Cap with 1 5/8″ (41mm) Hex Pin | ADC214210 | 16 | 7.3 |
| 3 | #2 Nut & Bolt for Rod-to-Cap Adapter | ANAB2 | 0.9 | 0.4 |
| 4 | 2 1/8″ (54mm) Pilot Bit Connector (AW Box – A-Rod Box) | APBC218AWB | 5 | 2.3 |
| 4 | 2 1/8″ (54mm) Pilot Bit Connector (AWJ Box – A-Rod Box) | APBC218AWJB | 5 | 2.3 |
| 5 | Rod-to-Cap Adapter – AW Pin | ARCAAWP | 3 | 1.4 |
| 5 | Rod-to-Cap Adapter – AWJ Pin | ARCAAWJP | 3 | 1.4 |
| 6 | AW Drill Rod – 5′ (1524mm) | ADR5AW | 21 | 9.5 |
| 6 | AWJ Drill Rod – 5′ (1524mm) | ADR5AWJ | 23 | 10.4 |
| Auger Repair Parts | ||||
| 1A | 2 1/4″ (57mm) DK Pin Tool Joint | ATJ2142P | 6 | 2.7 |
| 1B | 2 1/4″ (57mm) DK Box Tool Joint | ATJ2142B | 5 | 2.3 |
| 7 | ALB2 Auger Lock Bolt | ALB2 | 0.3 | 0.1 |
| 8 | ABN2 Auger Bushing Nut | ABN2 | 0.3 | 0.1 |
| 9 | ADK1 Auger Drive Key | ADK1 | 0.3 | 0.1 |
| Auger Cutterheads and Pilot Bits | ||||
| 10 | 2 1/4″ (57mm) DK Spade Cutterhead – 6 1/2″ (165mm) O.D. | ACH214251 | 10 | 4.5 |
| 10 | 2 1/4″ (57mm) DK Spade/Bullet Cutterhead – 6 1/2″ (165mm) O.D. | ACH214261 | 9 | 4.1 |
| 10 | 2 1/4″ (57mm) DK Bullet Cutterhead – 6 1/2″ (165mm) O.D. | ACH214270 | 10 | 4.5 |
| 10 | 2 1/4″ (57mm) DK 5-T Cutterhead – 6 1/2″ (165mm) O.D. | ACH214271 | 10 | 4.5 |
| 11 | 2 1/8″ (54mm) Apex Pilot Bit, A-Rod Pin | APB218APX | 2.5 | 1.3 |
Hollow Stem Augers (HSA) are commonly used to set groundwater monitoring wells for environmental and geotechnical applications. With the option of an augerhead on Roschen ® machines you can turn 4.25 in. hollow stem augers with the same machine you had just been using for percussion probing.
Hollow Stem Auger (HSA)
Hollow Stem Auger is used primarily when the bore hole will not remain open. HSA consists of a Hollow Auger (4 ¼" ID). During drilling the center is filled with rods connected to a plug at the bottom bit.
Once desired depths is reached, the center rods and plug are pulled out. This leaves a cased hole for sampling or installations.
Solid Stem Auger (SSA)
Solid Stem Auger is the fastest and most effective way of retrieving samples in soft soil conditions.
By corkscrewing the Auger into the soil our drillers can retrieve a very accurate formation profile.
Solid Stem Auger (SSA) can also be used to set monitoring wells and install instrumentation in certain soil conditions.
