NQ Wireline Impregnated Diamond Core Drill Bits , N Rod Thread Bits

China NQ Wireline Impregnated Diamond Core Drill Bits , N Rod Thread Bits supplier

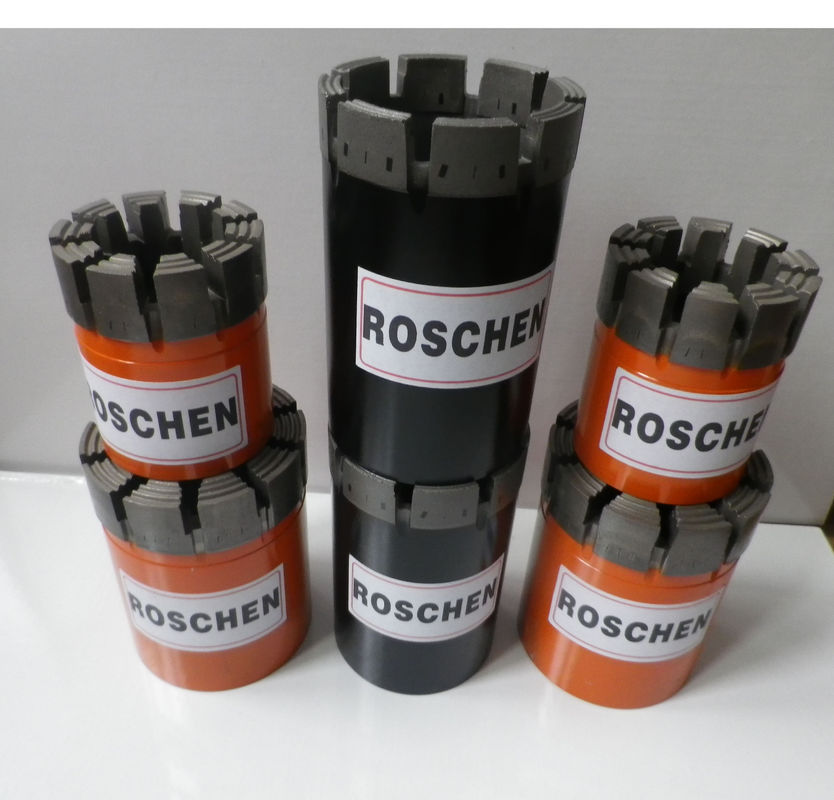

Large Image :  NQ Wireline Impregnated Diamond Core Drill Bits , N Rod Thread Bits

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: BQ NQ HQ PQ

Payment & Shipping Terms:

Minimum Order Quantity: 1-5 pcs
Price: Negotiate
Packaging Details: Cartons
Supply Ability: 1000 pcs
Detailed Product Description
Type: NQ Wireline Impregnated Diamond Core Drill Bits Drill Rigs: Diamond Core Drill Rigs
Drills: Core Bore Drills Bits: Milwaukee Diamond Core Drill Bits
Diamond: Dremel Diamond Bits Suupliers: Diamond Bit Drill Suupliers
Drill Bit: Diamond Tip Drill Bit Name: BQ NQ HQ PQ Impregnated Diamond Core Bits
Series: Wireline Diamond Core Bits Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling Core Drilling: Wireline Core Drilling
Mining: Australia Mining Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling Usage: Africa Mining
Applications: Copper Mining Drilling

N Rod Thread Bits, NQ Wireline Impregnated Diamond Core Drill Bits



Depending on the range of application as well as the cutting media on the core bits, Roschen makes six types of core bits:

---Impregnated Diamond Type
---Surface set Diamond Type
---Tungsten Carbide Type
---PDC Type
---PCD Type
---Electroplated Diamond Type

Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.



Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..



Size:

Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard: 59, 76, 93, 112, 132, 152 mm



Wireline diamond core bits specifications
SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQ 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ3 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)




Wireline diamond core bits, metricl diamond impregnated drill bits specifications
"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard: CDDA, DCDMA, Crealius, and ISO sizes.
