Detailed Product Description
Model Name: Symmetric/ Concentric Overburden Drilling System Machine Type: DTH Hammer
Material: Steel&Carbide Appilication: Water Well, Construction, Mining
Item: Symmetric Overburden Drilling System Parts: Guide Device/Pilot Bit/Reamer
Type: Concentric Overburden Drilling System Drilling: Overburden Drilling
Drill: Down The Hole Drilling Use: ODEX Drilling

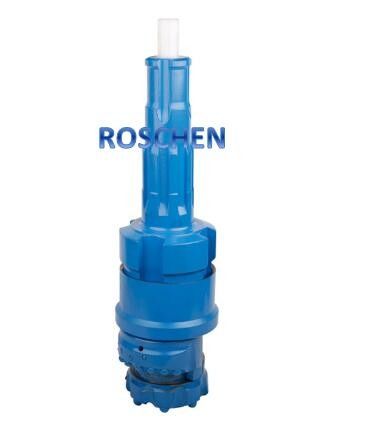

Eccentric Overburden Drilling System



Concentric casing system with blocks is applicable to all kinds of core drilling rig, bolt rig, for geological exploration, deep foundation pit support, high slope anchorage, tunnel collapse tube shed support, pebble layer high pressure rotary jet and other fields







1. Eccentric Reamer System Step-by-step



1) When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.

2) When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.

3) Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.

4) Drilling continues to the desired depth in the bedrock using a conventional drill string.





Application Range:


This product is made of alloy of high quality and apply for advanced high-frequency welding technology and maturity of heat treatment process, greatly improving the intensity, wear resistance and impact toughness of cutter head, increasingly prolonging the working life, enhancing the drilling efficiency.

It is recommended to drill in rock formation where contains some ovals and fractures.

.


2. General Introduction

1) drill in overburden unstable rock
2) one step to drill and follow casing
3) flexible to open or close
4) effecient below 300mm



3. Design Principles:

Make the casing follow easy and the equipment and operation simple
Outstanding Advantages
Simple structure,simple operation,reliable quality,retrievable drilling tools,long service life.


4. Raw Material

Steel:
first class special alloy steel with high strength, heat resistance and wearable
Carbide:
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.


5. Working Process:

1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit's upper shoulder engages the shoulder of the casing shoe.
2. On completion of drilling and casing, the drill string with pilot bit is retrived by a slight reverse rotation to unlock the bayonet coupling. The ring bit stays in the hole, and can be recovered only if the casing is retrieved.
3. Hammer's percussive energy is transferred through the pilot and ring bits, crushing rock. Part of impact energy advances casing.
4. Drilling continues to the desired depth in the bedrock using a convertional drilling.




Product type Casing OD Casing wall max. Ring bit ID Ring bit OD Pilot bit OD Hammer
RSOD114 114.3 6/10 91/78 128/124 100/92.5 RD35
RSOD127 126.7 7 99 140 110 RD35
RSOD140 139.7 7/10 116/94 154/150 124/117.5 RD45,RQL4
RSOD168 168.3 8/12.7 142/121 182/178 150/140 RD55,RQL5
RSOD178 178.3 10 145 195 156 RD55,RQL5
RSOD194 193.7 6/12.7 167/148 212/203 180/167 RD65,RQL6
RSOD219 219.1 7/12.7 186/167 234 203/191 RD65,RQL6
RSOD273 273 8/12.7 232/219 292 255/246 RD85,RQL8
RSOD325 323.9 8/12.7 281/270 342/342 306/297 RD85,RSD8
RSOD406 406.4 12.7 328 419 374 RSD10,RN125
RSOD508 508 15 412 526 470 RD475,SD15
RSOD609 609.6 15 513 637 570 RD525,SD18
