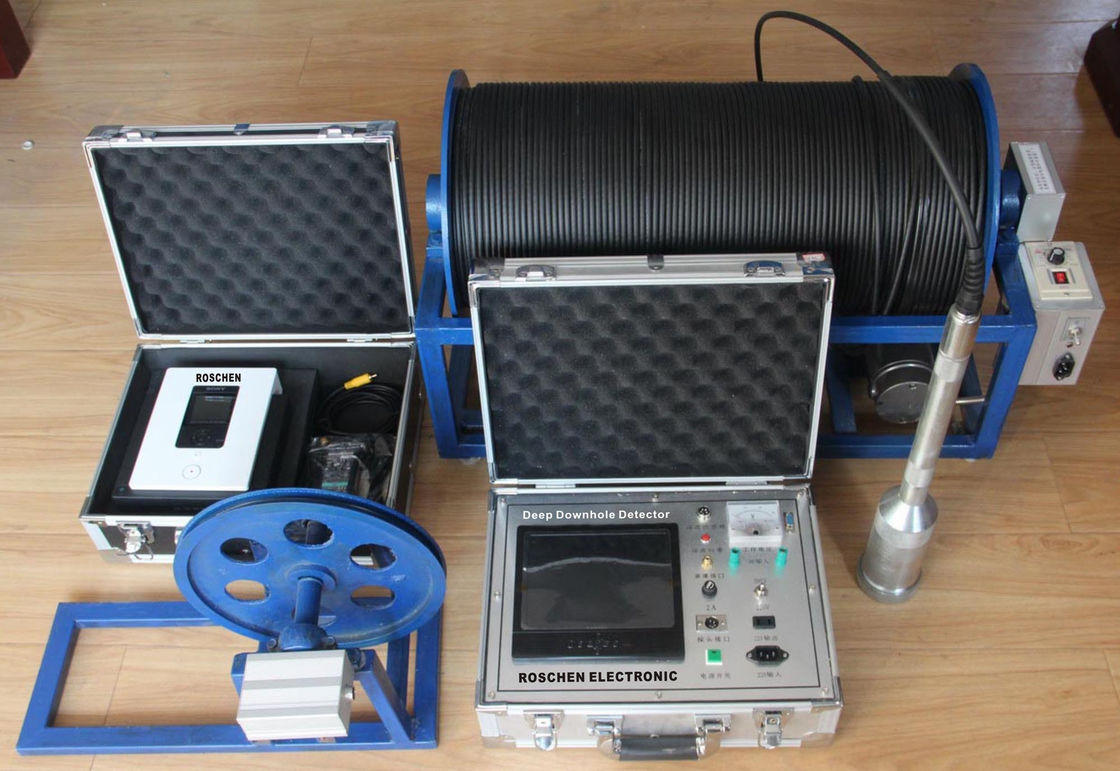

Borehole Inspection Camera TV Imaging System for Calibration drilling hole

Borehole Inspection Camera TV Imaging System for Calibration drilling hole


1.Borehole TV Imaging System

(1) Device Function

Images can be video camera acquisition, processing, editing, display, storage and transmission, to the histogram, and floor plan. Other parameter sensor system configuration, you can also obtain downhole depth, inclination, magnetic field, temperature and other parameters.


(2) Working Conditions

   a. Adaptation of clean water holes；(2)Maximum operating temperature 70℃


(3) Technical Requirements

    a. Measuring depth: 1500m; viewing angle: 0 ~ 360°

    b. Counting precision depth: 5cm

    c. Inclination: 0° ~ ± 45°

    d. Magnetic field: up to 80,000 nT

    e. Temperature: -10°~ 70℃

    f. Adapted Aperture: 75mm OD

    g. Battery working time > 8h


(4) Technical Support and Services

    a. We dispatch our technicians to the end user site for free installation and operation of technical training;

   b. Equipment warranty period of 1 year or more, a lifetime to provide maintenance and technical support services.

(5) Application Examples

(6) Delivery Period: 20 days to one months

   Order to be requested by P.O. .

2.   Oil & Gas Well, Mining Downhole Instruments

(1) Device Function

The device is intrinsically safe mine, comes with high brightness adjustable light source, large color screen display, has good dustproof and waterproof performance. Equipment, small size, light weight, ease of use, performance and stability. Supporting software capable of image and video data files management, borehole data to add notes and comments to add text, images made ​​for drilling photographs and audio video playback, and has a mine map search, drilling retrieval capabilities.


(2) Working Conditions
   a. Adapt to water, dust and vibration work environment;(2)Operating temperature -10 ~ 50℃

(3) Technical Specifications

   a. Peep hole diameter: <Φ75mm

   b. Peep hole depth: ≥ 2000m

   c. Probe Resolution: 420 lines

   d. Continuous working time: > 6h

   e. Storage Capacity: ≥ 20GB
   f. Software main features: mine map search, drilling retrieval, pictures, video data file management, data management borehole text, images and audio video playback, add a note.


3.   Service

1. Roschen responsible for assisting equipment installation and commissioning, the user needs to provide the appropriate equipment installed, the interface; (demand larger case)
2. Roschen provide customers with professional training and consulting;
3. Roschen provide users with one-year equipment warranty (except artificial damage), life-long maintenance of equipment.
4. Roschen provides users with free lifetime supply of underwater imaging, photography, professional technical support.
5. Equipment failure, the use of the equipment back to Roschen headquarters courier service, warranty period, maintenance costs borne by us (except artificial damage); outside the warranty period, maintenance costs borne by the user.
