Reverse Circulation Hammer
>
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO,CE |
| Model Number | RC 45 |
Catalogs for Performance Tooling offered by Boart Longyear
Reverse Circulation RC Hammers Catalogs for Performance Tooling offered by Boart Longyear
REVERSE CIRCULATION DRILLING HAMMERS
Reverse Circulation RC drilling hammers and hammer drill bits provide outstanding performance along with outstanding reliability and simplicity. Our reverse circulation hammers are suitable for any exploration and grade control process to obtain an accurate sample with no contamination. RC drilling hammers can in most instances carry out continuous sample collection in a fraction of the time necessary with conventional or wireline coring.
| Reverse circulation (RC) Hammer Quick Reference | ||
| Size | RC Hammer Model | ROSCHEN RC Hammer Model |
| 3" | RC Hammer RE035 | ROS RC 35 |
| 4-4 1/2" | RC Hammer RE004 | ROS RC 40 |
| RC Hammer RE540 | ROS RC 45 | |
| 5" | RC Hammer RE040 | ROS RC 50 |
| RC Hammer RE542 | ROS RC 50 | |
| RC Hammer RE543 | ROS RC 50 | |
| RC Hammer RE545 | ROS RC 50 | |
| 5-5 1/2" | RC Hammer RE052 | ROS RC 55 |
| RC Hammer RE547 | ROS RC 55 | |
| 5 1/2-5 3/4" | RC Hammer RE054 | ROS RC 55 |
| RC Hammer RE140 | ROS RC 55 | |
| ROSCHEN RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |

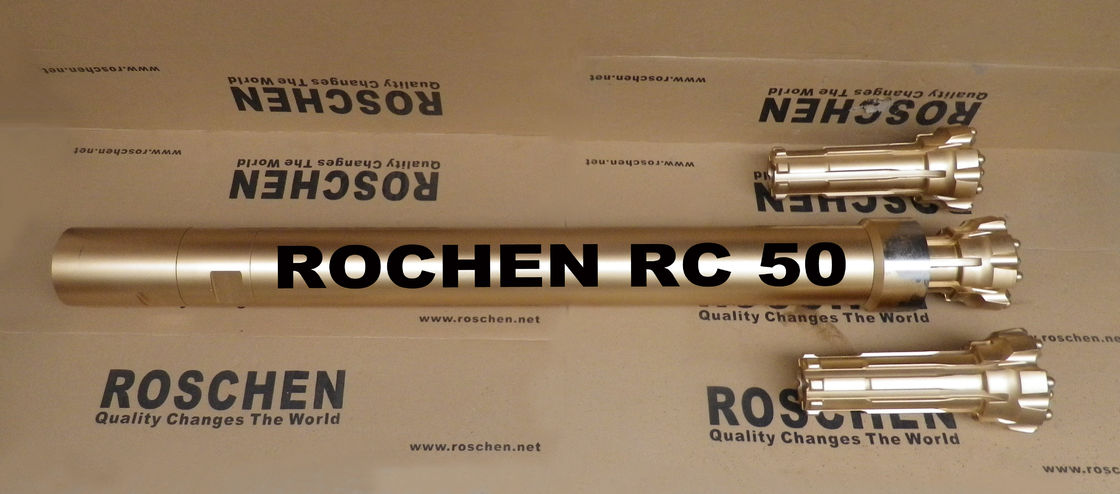

| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
Reverse Circulation Hammers Advantages:
1. Highly cost efficient
2. Outstanding engineering and manufacturing
3. Maximum material recovery, up to 98%
4. No cross contamination of samples
5. Locking key style shrouds
6. Handles injection of water, foam, oil, and polymers without performance loss
7. Delivers maximum drilling under water
8. Hammer can be fitted with back reaming subs
9. Additional air lift tubes
10. Manufactured using robust hardened metals for long life
11. Carburized pistons
The pride of workmanship and outstanding engineering make these hammers a superior value. Excellent dependability, service, and support.
