Durable Casing Advance Drilling / Downhole Casing Cutter Integral Operation
Negotiable
MOQ
Negoriate
Price
Durable Casing Advance Drilling / Downhole Casing Cutter Integral Operation
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO
Model Number: 13-3/8"
High Light:

rock drilling tools

,

casing advance drilling

Payment & Shipping Terms
Packaging Details: carton box
Supply Ability: 6000
Specifications
Size: 13 3 8 Casing Specifications
Series: Api Casing Tables
Series No: HW / HWT Casing Advancer
Origin: China
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Use: Africa Mining
Product Description

Durable Casing Advance Drilling / Downhole Casing Cutter Integral Operation​



Casing Advance Drilling Introduction



Roschen Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation.

This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.

The integral operation makes Roschen Casing Advancer eminently suitable for drilling through overburden or sands and gravels.

It is also particularly suitable for Landfill Drilling applications.



Casing Advance Drilling Features:



1. Cases borehole as borehole advances
2. Helps reduce drilling cost by saving rod and casing handling.
3. Can be used with Rock Bot or TC. Drag Bit.
4. Long Casing Shoe life as it is always reaming and never drilling alone.
5. Special flushing ports in the body ensure that the casing bit is adequately flushed.
6. Uses conventional Right Hand threaded Drill Rods and Casing.
7. Suitable for Air, Water or Mud Flush.
8. Manufactured from high quality materials.




Casing Advancer



1. This Drilling Method is Typically Used when Gravel, Cobble, and Boulders Cause Premature Auger Refusal.
2. M & W Drilling has the Capability to Advance Casing Through Collapsing Formations in Order to Maintain Borehole Integrity.
3. Both 2 in. and 4 in. Wells can be Installed Through the Casing Advancer Tools.
4. Diameter of Drill Tools – 4 in. to 6 in.

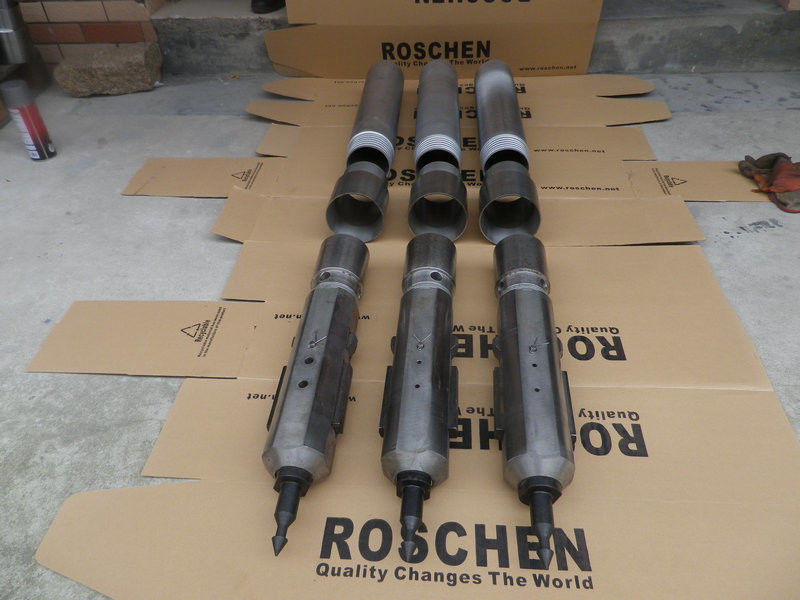

Durable Casing Advance Drilling / Downhole Casing Cutter Integral Operation 0



Key

1. Standard Casing

2. Rod Entry Guide Sub

3. Body

4. Hi-tensile Drive Pin

5. Seal

6. Advancer Casing Shoe

7. Bit




Casing Advancer - Technical Specifications
Conventional Casing to ISO Standard 3551
Designation Casing O.D. Casing I.D. Advancer Bit O.D.
SW. 6.625” 6.000” 7.800”
 UW. 7.625” 7.000” 8.800”
ZW. 8.625” 8.000” 9.800”

 Waterwell Casing to BS 879 ( Flush Butt Joints )
Designation Casing O.D. Casing I.D. Advancer Bit O.D.
6”NB. 6.625” 6.000” 7.800”
 8”NB. 8.625” 8.000” 8.800”
10”NB. 10.750” 10.000” 11.93”




Casing Advancer Bit and Drill Rod Threads.__________________ 2 3/8 API. REG.



Other Rod threads maybe incorporated at customers special request.



Casing Advancer to suit Metric Casing ( Larger sizes ) are also available by request.





if you require to order any of the items above or a bespoke design then please email or contact us.




Please advise if your system will also allow our customer to drill with casing into rock formations. They will not be drilling through overburden. They intend to use the system to advance the casing deep into rock formations (sandstone – limestone).









Durable Casing Advance Drilling / Downhole Casing Cutter Integral Operation 1
