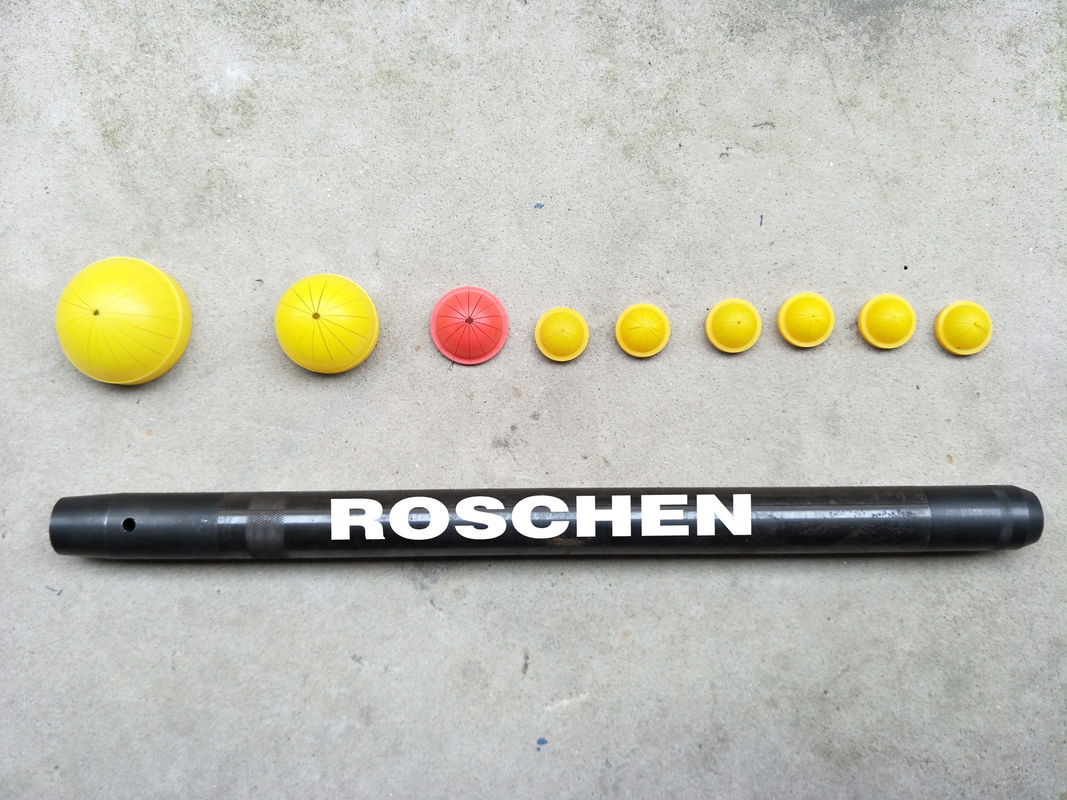

Soil Sampling Equipment , SPT Sampling Sampler
1 set
MOQ
Negotiate
Price
Soil Sampling Equipment , SPT Sampling Sampler
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 2"
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 10000 SETS
Specifications
Product Description
Soil Sampling Equipment

Soil sampling equipment for obtaining soil samples at or near the surface in environmental sampling and monitoring and geotechnical testing applications.

Our samplers range in length from 18” to 24”, the “Lynac” sampler head has coarse threads which make assembly/disassembly much faster and all shoes for samplers are heat treated to withstand continued heavy use.


A ball check feature prevents a washout of material when retrieving a finished sampler. Split-spoon samplers are used in geotechnical analysis which don’t require undisturbed samples, and chemical analysis. Liners are used with split spoon samplers which allow for collection of samples suitable for chemical analysis of many types of contaminants. Split spoon samplers consist of a barrel attached to a drive tip; obtain samples by attaching the split spoon to the end of a drill string, lowering it to the bottom of a borehole, and then driving it into the soil with a geotechnical hammer.



Sampler Outside Diameter Split Barrel Inside Diameter Split Barrel Length Threads Assembly Weight (Back) Head or Sub Drill Rod Box Connection
Per Inch
2-inch (50.8mm) 1-1/2-inch (38.1mm) 24-inch (609.6mm) 4-TPI 17-Pounds (7.7 kg) AW
2-inch (50.8mm) 1-1/2-inch (38.1mm) 24-inch (609.6mm) 4-TPI 17-Pounds (7.7 kg) AWJ
2-inch (50.8mm) 1-1/2-inch (38.1mm) 24-inch (609.6mm) 8-TPI 17-Pounds (7.7 kg) AW
2-inch (50.8mm) 1-1/2-inch (38.1mm) 24-inch (609.6mm) 8-TPI 17-Pounds (7.7 kg) AWJ
2-inch (50.8mm) 1-1/2-inch (38.1mm) 18-inch (457.2mm) 4-TPI 20-Pounds (9 kg) CR-50
2-inch (50.8mm) 1-1/2-inch (38.1mm) 24-inch (609.6mm) 4-TPI 25-Pounds (11.3 kg) AWJ

Complete Sampler Assemblies:

1. Standard: 1-1/2” – 4”
2. Lynac Standard & Heavy Duty: 2” – 4”
3. Stainless: 2” – 3”
4. California Modified: 2” – 4”
5. Thin Wall Shelby Tubes
6. Stationary Piston Samplers
7. Dennison Samplers

Sampler Accessories:

1. Sealing Wax & Soil Seals
2. Basket Retainers
3. Liners
4. Trap Valves
5. Couplings
6. Caps - Plastic & Vinyl



Shelby Tube (Thinwall) Samplers & Accessories


Shelby Tube Diameter
Shelby Tube Length
Shelby Tube Material
Special Feature Assembly Weight Assembly
