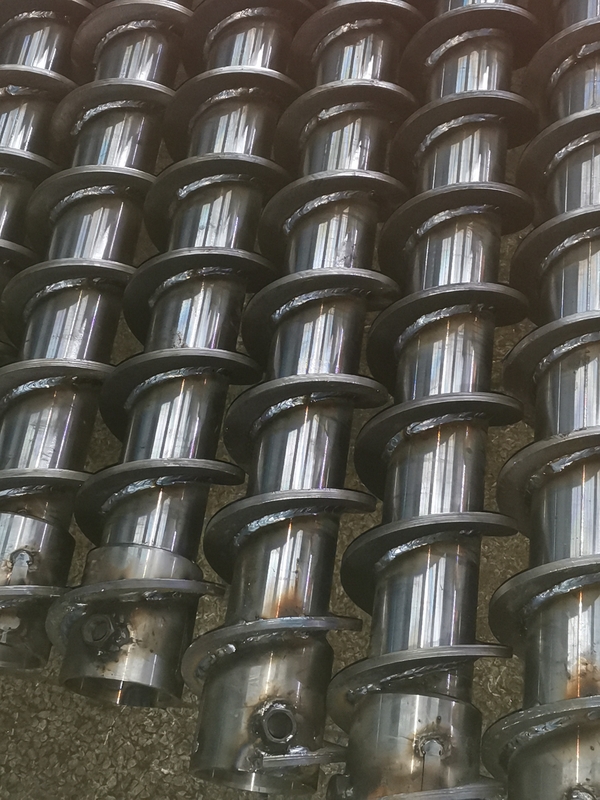

6 1/4″ (159mm) Double Key Hollow Stem Auger
Description
All 6 1/4″ (159mm) Double Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The tool joints are made from 4142 heat-treated alloy steel and feature double-bolt connections.
Specifications:
| No | Description | Part # | Lbs. | Kg. |
| Auger Section | ||||
| 1 | 6 1/4″ (159mm) DK Hollow Stem Auger 6 1/4″ (159mm) I.D. x 9 5/8″ (244mm) O.D. x 5′ (1524mm) | A614200 | 131 | 59.4 |
| 2 | 6 1/4″ (159mm) DK Drive Cap with 1 5/8″ (41mm) Hex Pin | ADC614210 | 39 | 17.7 |
| 2 | 6 1/4″ (159mm) DK Drive Cap with 2″ (51mm) Hex Pin | ADC614211 | 42 | 19.1 |
| 3 | #6 Nut & Bolt for Rod-to-Cap Adapter | ANAB6 | 1.3 | 0.4 |
| 4 | 6 1/8″ (156mm) Pilot Bit Connector (AW Box – 3 1/2″ API Reg. Box) | APBC618AWB | 8 | 3.6 |
| 4 | 6 1/8″ (156mm) Pilot Bit Connector (AWJ Box – 3 1/2″ API Reg. Box) | APBC618AWJB | 11 | 5 |
| 4 | 6 1/8″ (156mm) Pilot Bit Connector (NW Box – 3 1/2″ API Reg. Box) | APBC618NWB | 11 | 5 |
| 4 | 6 1/8″ (156mm) Pilot Bit Connector (NWJ Box – 3 1/2″ API Reg. Box) | APBC618NWJB | 12 | 5.4 |
| 5 | Rod-to-Cap Adapter – AW Pin | ARCAAWP | 3 | 1.4 |
| 5 | Rod-to-Cap Adapter – AWJ Pin | ARCAAWJP | 3 | 1.4 |
| 5 | Rod-to-Cap Adapter – NW Pin | ARCANWP | 7 | 3.2 |
| 5 | Rod-to-Cap Adapter – NWJ Pin | ARCANWJP | 6 | 2.7 |
| 6 | AW Drill Rod – 5′ (1524mm) | ADR5AW | 21 | 9.5 |
| 6 | AWJ Drill Rod – 5′ (1524mm) | ADR5AWJ | 23 | 10.4 |
| 6 | NW Drill Rod – 5′ (1524mm) | ADR5NW | 31 | 14.1 |
| 6 | NWJ Drill Rod – 5′ (1524mm) | ADR5NWJ | 35 | 15.9 |
| Auger Repair Parts | ||||
| 1A | 6 1/4″ (159mm) DK Pin Tool Joint | ATJ6142P | 13 | 5.9 |
| 1B | 6 1/4″ (159mm) DK Box Tool Joint | ATJ6142B | 12 | 5.4 |
| 7 | ALB2 Auger Lock Bolt | ALB2 | 0.3 | 0.1 |
| 8 | ABN2 Auger Bushing Nut | ABN2 | 0.3 | 0.1 |
| 9 | ADK1 Auger Drive Key | ADK1 | 0.3 | 0.1 |
| Auger Cutterheads and Pilot Bits | ||||
| 10 | 6 1/4″ (159mm) DK Blade Cutterhead – 11″ (279mm) O.D. | ACH614250 | 23 | 10.4 |
| 10 | 6 1/4″ (159mm) DK Spade Cutterhead – 11″ (279mm) O.D. | ACH614251 | 22 | 10 |
| 10 | 6 1/4″ (159mm) DK Blade/Bullet Cutterhead – 11″ (279mm) O.D. | ACH614260 | 28 | 12.7 |
| 10 | 6 1/4″ (159mm) DK Spade/Bullet Cutterhead – 11″ (279mm) O.D. | ACH614261 | 27 | 12.2 |
| 10 | 6 1/4″ (159mm) DK Bullet Cutterhead – 11″ (279mm) O.D. | ACH614270 | 29 | 13.2 |
| 10 | 6 1/4″ (159mm) DK 5-T Cutterhead – 11″ (279mm) O.D. | ACH6142718 | – | – |
| 11 | 6 1/8″ (156mm) Apex Pilot Bit, 3 1/2″ API Reg. Pin | APB618APX | – | – |
| 11 | 6 1/8″ (156mm) Bullet Pilot Bit, 3 1/2″ API Reg. Pin | APB618BUL | – | – |
Hollow Stem Augers
Hollow stem augers are used extensively for soil sampling and groundwater monitoring in industrial and commercial installations. The advantages of hollow stem augers are many. Unlike the solid stem method, drill rods can pass through the center of the auger section and an undisturbed sample of the soil can be taken for analysis or groundwater monitoring pipe can be installed.
