Product Description

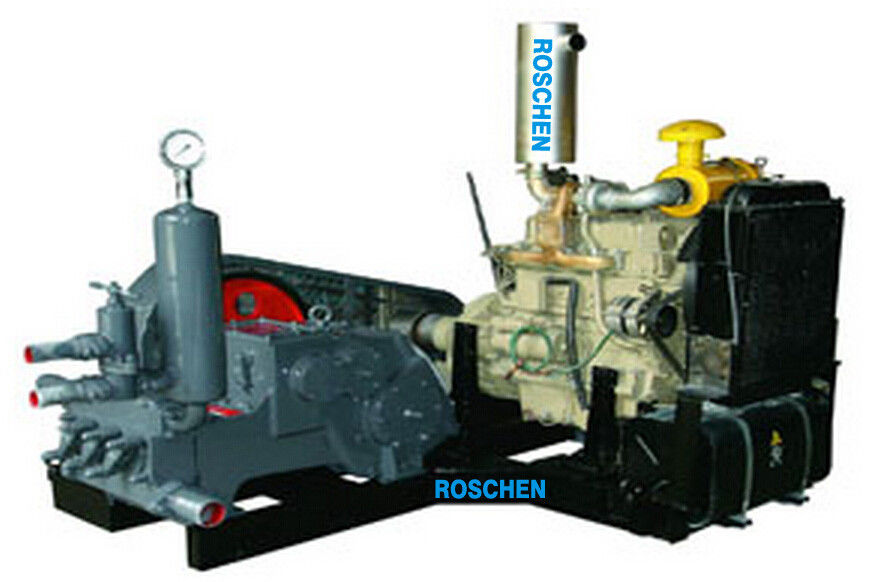

RS-600-10 Mud Pump Applied to Geological Drilling Mud Flushing

Model: RS-600-10 MUD PUMP

RS-600-10 Single Acting Triplex Piston Mud Pump is to supply the drilling hole with flushing liquor in order to carry the rock debris up to the ground, and to cool and lubricate the drilling tools and drill bit. RS-600-10 single acting triplex piston mud pump is used to match drill rigs. It is applied to geological and engineering prospecting such as railway, the water conservancy, the metallurgy and the geology, plant, environmental, etc. Also, it can be used to deliver water to high mountains or in the execution domain of middle and low pressure grouting and non-excavating matching.


RS-600-10 Single Acting Triplex Piston Mud Pump is featured with small cubage, light mass, long life, simple operation and reliable performance, etc.

Technical parameters:


Model RS-600-10 Mud Pump
Type Single Acting Triplex Piston Mud Pump
Stroke (mm) 110
Bore (mm) 100
Pump Speed (s.p.m) 232 162 109 76
Output Volume (I.p.m) 600 415 280 195
Discharge Pressure (MPa) 3.5 5 7.5 10
Input Power (Kw) 55
Suction Pipe Dia. (mm) 89
Discharge Pipe Dia. (mm) 51
Drilling Hole Depth (M) 1400
Overall Dimension (LxWxH=mm) 2330*1720*1250
