BWL HWL NWL PWL Wireline Drill Rod

China BWL HWL NWL PWL Wireline Drill Rod supplier
BWL HWL NWL PWL Wireline Drill Rod supplier BWL HWL NWL PWL Wireline Drill Rod supplier BWL HWL NWL PWL Wireline Drill Rod supplier

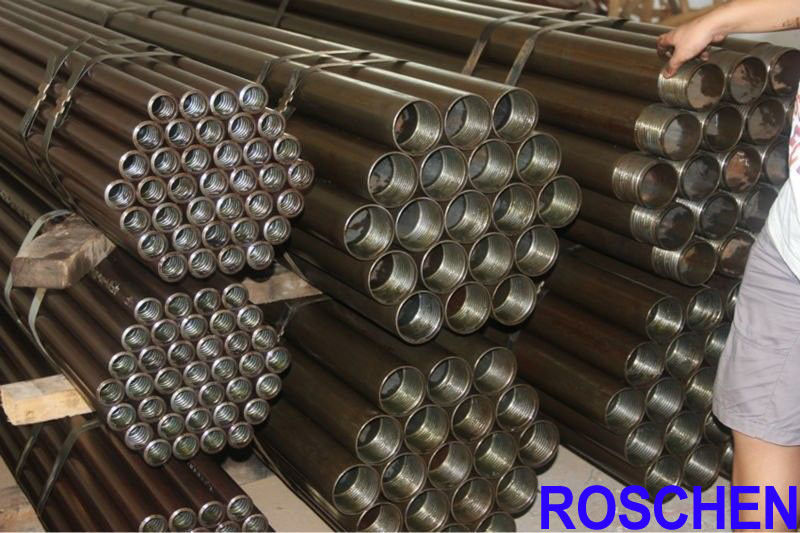

Large Image :  BWL HWL NWL PWL Wireline Drill Rod

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO, API
Model Number: BWL HWL NWL PWL, AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131

Payment & Shipping Terms:

Minimum Order Quantity: 50 meters
Price: N/A
Packaging Details: steel packing
Supply Ability: 50000 pcs
Contact Now
Detailed Product Description

BWL HWL NWL PWL Drill Rod


BWL HWL NWL PWL Wireline Drill Rod


BQ NQ HQ PQ Wireline Drill Rod Core Barrel Inner tube and Outer tube series




BWL HWL NWL PWL Wireline Drill Rod for Core Barrel Inner tube / Outer tube




Specifications:

1. high quality alloy tube
2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads


Raw materials:



ROSCHEN just use the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Material: 30CrMnSiA or 45MnMoB (A grade), XJY850, BG850(B grade), RS950, Eruopean/US Standard 40/41




Heat treatment control:



Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.




Thread opening process:



Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.




Additional thread treatment:



Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.


BWL, HWL, PWL, BQ, HQ, NQ Rods Technical Parameters:
A Yield Strength: 865-900Mpa
B Tensile Strength: 960Mpa
C Elongation: 17.5-20%
D Pipe Body Hardness: 30-35 HRC
E Thread Body Hardness: 50-55HRC above,Both Male and female Threads are Nickel Phosphorus Coating
F  Pipe life designed for 7000-9000meters



1. Drill rod: BQ, NQ, HQ, PQ, NW, HW, PW, BWL, HWL, NWL, PWL
2. Core barrel: BQ, NQ, NQ2, NQ3, HQ, HQ3, PQ, PQ3 & head assembly and assembly
3. BQ, NQ, HQ, PQ, T2, T6, etc. Diamond core bit, reaming shell & shoe bit (synthetic and surface-set, PDC)
4. Drill tool: hoisting plug, water swivel, overshot, outer tube & inner tube wrench, foot clamp, etc
