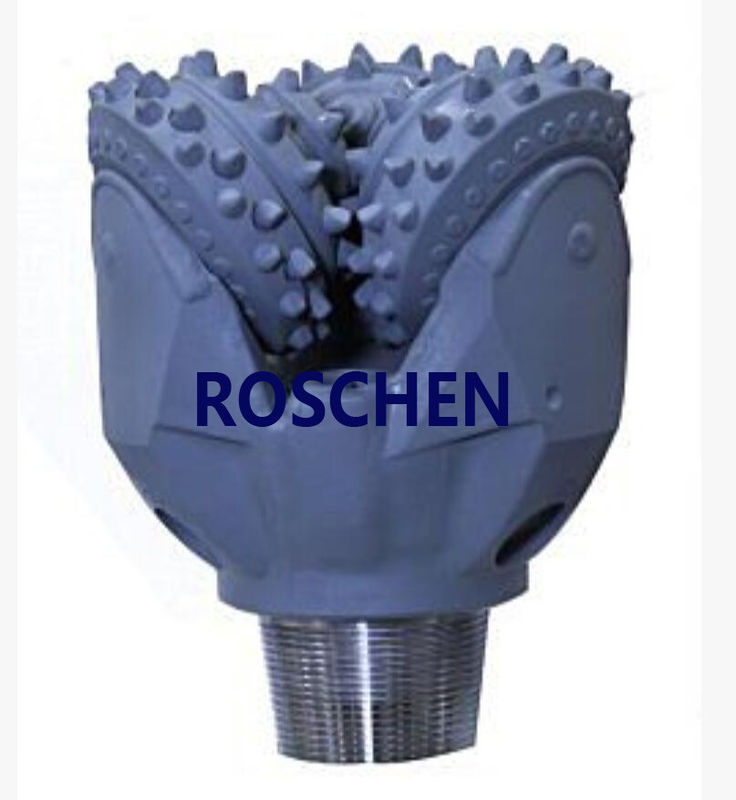

10 1/2'' tci Tricone Roller Cone Bit/Tricone Rock Bit/Oil Well Drill Bit
16 in. Triton TCI Tricone Drill Bit, IADC 435
Description:
Roschen Triton™ tricone bits from Robert Roschen are a dependable solution designed for simple, highly drillable formations without adding extra cost. Computational fluid dynamics modeling improves cuttings removal and reduces bit balling tendencies to improve penetration rates. High-quality materials and manufacturing processes help ensure durability to maintain an accurate borehole diameter.
Applications:
. Conventional drilling applications
. Drillout applications
. Junk drilling applications
Features/Benefits:
. Standard Bearing Package - A very reliable bearing package that incorporates field proven technology and precision manufacturing tolerances for increased reliability.
. High Penetration Rate in Medium Formations - Medium tooth projection and reduced cone offset provide long life and good penetration rates in medium formations with harder streak.
. Center Jet - A fourth jet is positioned in the center of the bit and utilized to prevent bit balling and the associated reduction in penetration rate.
Specifications:
. Size: 16 in. (406.4 mm)
. Bit Type: RC435
. IADC: 435
. Tooth Type: TCI
. Bearing / Seal Package: Two Row Roller / Shrouded O-ring
. Connection: 7-5/8 REG API
. Max. Weight on Bit: 27 - 72 klb (12 - 32 tn or kdaN)
. Rotational Speed: For Rotary and Motor Applications
. Make-up Torque: 34.0 - 40.0 kft-lb (46.1 - 54.2 kNm)
| NO. | ROCK BIT SIZE | REG.PIN API | |
| in | mm | ||
| 1 | 3 3/4 | 95.3 | 2 3/8 |
| 2 | 3 7/8 | 98.4 | 2 3/8 |
| 3 | 4 1/8 | 104.8 | 2 3/8 |
| 4 | 4 1/4 | 108 | 2 3/8 |
| 5 | 4 1/2 | 114.3 | 2 3/8 |
| 6 | 4 5/8 | 117.5 | 2 7/8 |
| 7 | 4 3/4 | 120.7 | 2 7/8 |
| 8 | 4 7/8 | 123.8 | 2 7/8 |
| 9 | 5 1/2 | 139.7 | 3 1/2 |
| 10 | 5 5/8 | 142.9 | 3 1/2 |
| 11 | 5 2/3 | 143.9 | 3 1/2 |
| 12 | 4 3/4 | 146.1 | 3 1/2 |
| 13 | 5 7/8 | 149.2 | 3 1/2 |
| 14 | 6 | 152.4 | 3 1/2 |
| 15 | 6 1/8 | 155.6 | 3 1/2 |
| 16 | 6 1/4 | 158.8 | 3 1/2 |
| 17 | 6 1/2 | 165.1 | 3 1/2 |
| 18 | 6 5/8 | 168.3 | 3 1/2 |
| 19 | 6 3/4 | 171.5 | 3 1/2 |
| 20 | 7 1/2 | 190.5 | 4 1/2 |
| 21 | 7 5/8 | 193.7 | 4 1/2 |
| 22 | 7 7/8 | 200 | 4 1/2 |
| 23 | 8 3/8 | 212.7 | 4 1/2 |
| 24 | 8 1/2 | 215.9 | 4 1/2 |
| 25 | 8 5/8 | 219.1 | 4 1/2 |
| 26 | 8 3/4 | 222.3 | 4 1/2 |
| 27 | 9 1/2 | 241.3 | 6 5/8 |
| 28 | 9 5/8 | 244.5 | 6 5/8 |
| 29 | 9 7/8 | 250.8 | 6 5/8 |
| 30 | 10 1/2 | 266.7 | 6 5/8 |
| 31 | 10 5/8 | 269.9 | 6 5/8 |
| 32 | 11 | 279.4 | 6 5/8 |
| 33 | 11 5/8 | 295.3 | 6 5/8 |
| 34 | 12 | 304.8 | 6 5/8 |
| 35 | 12 1/4 | 311.2 | 6 5/8 |
| 36 | 12 5/16 | 312.7 | 6 5/8 |
| 37 | 13 3/8 | 314.3 | 6 5/8 |
| 38 | 12 7/16 | 315.9 | 6 5/8 |
| 39 | 12 5/8 | 320.7 | 6 5/8 |
| 40 | 13 1/8 | 333.4 | 6 5/8 |
| 41 | 13 1/2 | 342.9 | 6 5/8 |
| 42 | 13 5/8 | 346.1 | 6 5/8 |
| 43 | 13 3/4 | 349.3 | 6 5/8 |
| 44 | 14 1/2 | 368.3 | 7 5/8 |
| 45 | 14 3/4 | 374.7 | 7 5/8 |
| 46 | 15 1/2 | 393.7 | 7 5/8 |
| 47 | 16 | 406.4 | 7 5/8 |
| 48 | 17 1/2 | 444.5 | 7 5/8 |
| 49 | 18 7/8 | 479.4 | 7 5/8 |
| 50 | 20 | 508 | 7 5/8 |
| 51 | 22 | 558.8 | 7 5/8 |
| 52 | 24 | 609.6 | 7 5/8 |
| 53 | 26 | 660.4 | 7 5/8 |
| 54 | 28 | 711.2 | 7 5/8 |
| 55 | 30 | 762 | 7 5/8 |
