Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO, API |
| Model Number | 6 5/8" |
6 5/8 inch Tricone Roller Drill Bits rock bit weight on bit and RPM operating suggestions
Rock bit weight on bit and RPM operating suggestions

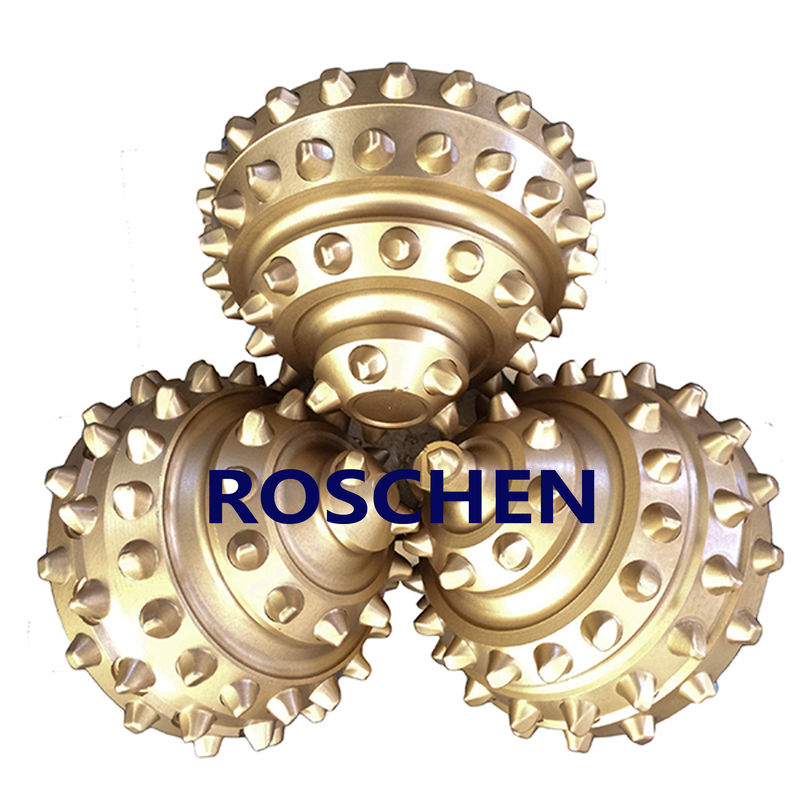

17.5 in. GTX TCI Tricone Drill Bit, IADC 435
Description:
The group of Roschen GT™, GTX™, GX™ and STX™ tricone drill bits from Robert Roschen has accumulated significant field experience over the last decade, becoming the drill bits of choice for many operators and contractors in a variety of applications. These bits are built upon field-proven technologies, using high-quality materials and a superior manufacturing processes to provide reliable and consistent drilling performance.
Applications:
. Conventional drilling applications
. Rotary and motor applications
Features/Benefits:
. GTX Bearing - The GTX line features an O-ring sealed ball and roller bearing. These bits are recommended for high rpm drilling and directional applications where hole sections and hours on bit are reduced.
. Maximum Penetration - Aggressive drilling action because of very large cone offset and deep intermesh tooth design with good ventilation.
. Center Jet - A fourth jet is positioned in the center of the bit and utilized to prevent bit balling and the associated reduction in penetration rate.
Specifications:
. Size: 17.5 in. (444.5 mm)
. Bit Type: GTX-C09
. IADC: 435
. Tooth Type: TCI
. Bearing / Seal Package: Two Row Roller / Shrouded O-ring
. Connection: 7-5/8 REG API
. Max. Weight on Bit: 32 - 82 klb (14 - 36 tn or kdaN)
. Rotational Speed: For Rotary and Motor Applications
. Make-up Torque: 34.0 - 40.0 kft-lb (46.1 - 54.2 kNm)
| NO. | ROCK BIT SIZE | REG.PIN API | |
| in | mm | ||
| 1 | 3 3/4 | 95.3 | 2 3/8 |
| 2 | 3 7/8 | 98.4 | 2 3/8 |
| 3 | 4 1/8 | 104.8 | 2 3/8 |
| 4 | 4 1/4 | 108 | 2 3/8 |
| 5 | 4 1/2 | 114.3 | 2 3/8 |
| 6 | 4 5/8 | 117.5 | 2 7/8 |
| 7 | 4 3/4 | 120.7 | 2 7/8 |
| 8 | 4 7/8 | 123.8 | 2 7/8 |
| 9 | 5 1/2 | 139.7 | 3 1/2 |
| 10 | 5 5/8 | 142.9 | 3 1/2 |
| 11 | 5 2/3 | 143.9 | 3 1/2 |
| 12 | 4 3/4 | 146.1 | 3 1/2 |
| 13 | 5 7/8 | 149.2 | 3 1/2 |
| 14 | 6 | 152.4 | 3 1/2 |
| 15 | 6 1/8 | 155.6 | 3 1/2 |
| 16 | 6 1/4 | 158.8 | 3 1/2 |
| 17 | 6 1/2 | 165.1 | 3 1/2 |
| 18 | 6 5/8 | 168.3 | 3 1/2 |
| 19 | 6 3/4 | 171.5 | 3 1/2 |
| 20 | 7 1/2 | 190.5 | 4 1/2 |
| 21 | 7 5/8 | 193.7 | 4 1/2 |
| 22 | 7 7/8 | 200 | 4 1/2 |
| 23 | 8 3/8 | 212.7 | 4 1/2 |
| 24 | 8 1/2 | 215.9 | 4 1/2 |
| 25 | 8 5/8 | 219.1 | 4 1/2 |
| 26 | 8 3/4 | 222.3 | 4 1/2 |
| 27 | 9 1/2 | 241.3 | 6 5/8 |
| 28 | 9 5/8 | 244.5 | 6 5/8 |
| 29 | 9 7/8 | 250.8 | 6 5/8 |
| 30 | 10 1/2 | 266.7 | 6 5/8 |
| 31 | 10 5/8 | 269.9 | 6 5/8 |
| 32 | 11 | 279.4 | 6 5/8 |
| 33 | 11 5/8 | 295.3 | 6 5/8 |
| 34 | 12 | 304.8 | 6 5/8 |
| 35 | 12 1/4 | 311.2 | 6 5/8 |
| 36 | 12 5/16 | 312.7 | 6 5/8 |
| 37 | 13 3/8 | 314.3 | 6 5/8 |
| 38 | 12 7/16 | 315.9 | 6 5/8 |
| 39 | 12 5/8 | 320.7 | 6 5/8 |
| 40 | 13 1/8 | 333.4 | 6 5/8 |
| 41 | 13 1/2 | 342.9 | 6 5/8 |
| 42 | 13 5/8 | 346.1 | 6 5/8 |
| 43 | 13 3/4 | 349.3 | 6 5/8 |
| 44 | 14 1/2 | 368.3 | 7 5/8 |
| 45 | 14 3/4 | 374.7 | 7 5/8 |
| 46 | 15 1/2 | 393.7 | 7 5/8 |
| 47 | 16 | 406.4 | 7 5/8 |
| 48 | 17 1/2 | 444.5 | 7 5/8 |
| 49 | 18 7/8 | 479.4 | 7 5/8 |
| 50 | 20 | 508 | 7 5/8 |
| 51 | 22 | 558.8 | 7 5/8 |
| 52 | 24 | 609.6 | 7 5/8 |
| 53 | 26 | 660.4 | 7 5/8 |
| 54 | 28 | 711.2 | 7 5/8 |
| 55 | 30 | 762 | 7 5/8 |
