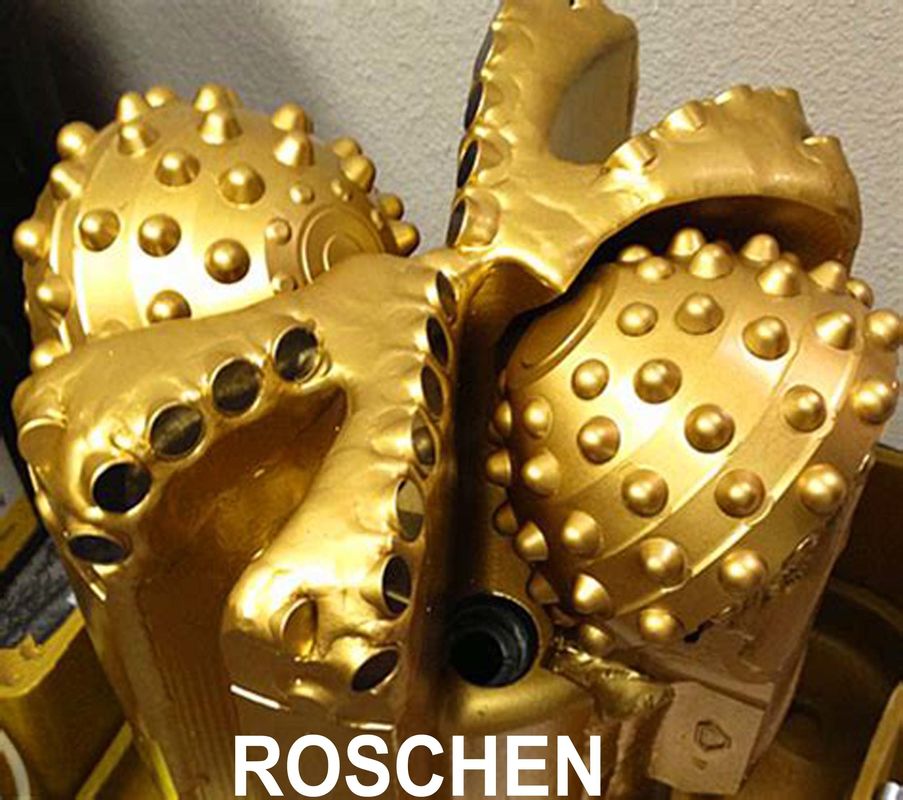

Hybrid Drill Bits 8 1/2 inch, Kymera Hybrid Drill Bits for Bake Hughes Oilfield Tools & Equipment
The hybrid drill bits or Kymera hybrid drill bits, the feature of this product is that it combines the advantages of the PDC bit and the tri-cone bit to achieve high drilling speed and improved life.
Tricone bit
The tri-cone bit is an important tool for oil drilling, and its performance will directly affect the drilling quality, drilling efficiency and drilling cost. The tri-cone bit design is mostly based on practical experience, combined with trial and error method, repeated design and calculation, so the design accuracy is low, the cycle is long, it is difficult to improve the design quality, and only one bit can be designed for each calculation, and the efficiency is low.
| Tricone Rolle Bits Product specifications: | |
| Model | Milled tooth bits tricone for water well,TCI bits tricone for water well |
| IADC Code | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 | |
| Bearing Type | H--Friction bearing; G--Roller bearing; F--Floating Bearing |
| Sealing Type | HJ(metal sealed journal bearing) |
| HA (rubber sealed journal bearing) air cooled bearing type | |
| Size | From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit |
| Material | alloy steel, tungsten carbide insert |
| Extra Feature | 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection |
| Applicable Formation | Very soft, soft, medium soft, hard, medium hard, very hard formation |
| Application | Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work. |
| NO. | TRICONE ROCK BIT SIZE | API THREAD REG.PIN | |
| in | mm | ||
| 1 | 3 3/4 | 95.3 | 2 3/8 |
| 2 | 3 7/8 | 98.4 | 2 3/8 |
| 3 | 4 1/8 | 104.8 | 2 3/8 |
| 4 | 4 1/4 | 108 | 2 3/8 |
| 5 | 4 1/2 | 114.3 | 2 3/8 |
| 6 | 4 5/8 | 117.5 | 2 7/8 |
| 7 | 4 3/4 | 120.7 | 2 7/8 |
| 8 | 4 7/8 | 123.8 | 2 7/8 |
| 9 | 5 1/2 | 139.7 | 3 1/2 |
| 10 | 5 5/8 | 142.9 | 3 1/2 |
| 11 | 5 2/3 | 143.9 | 3 1/2 |
| 12 | 4 3/4 | 146.1 | 3 1/2 |
| 13 | 5 7/8 | 149.2 | 3 1/2 |
| 14 | 6 | 152.4 | 3 1/2 |
| 15 | 6 1/8 | 155.6 | 3 1/2 |
| 16 | 6 1/4 | 158.8 | 3 1/2 |
| 17 | 6 1/2 | 165.1 | 3 1/2 |
| 18 | 6 5/8 | 168.3 | 3 1/2 |
| 19 | 6 3/4 | 171.5 | 3 1/2 |
| 20 | 7 1/2 | 190.5 | 4 1/2 |
| 21 | 7 5/8 | 193.7 | 4 1/2 |
| 22 | 7 7/8 | 200 | 4 1/2 |
| 23 | 8 3/8 | 212.7 | 4 1/2 |
| 24 | 8 1/2 | 215.9 | 4 1/2 |
| 25 | 8 5/8 | 219.1 | 4 1/2 |
| 26 | 8 3/4 | 222.3 | 4 1/2 |
| 27 | 9 1/2 | 241.3 | 6 5/8 |
| 28 | 9 5/8 | 244.5 | 6 5/8 |
| 29 | 9 7/8 | 250.8 | 6 5/8 |
| 30 | 10 1/2 | 266.7 | 6 5/8 |
| 31 | 10 5/8 | 269.9 | 6 5/8 |
| 32 | 11 | 279.4 | 6 5/8 |
| 33 | 11 5/8 | 295.3 | 6 5/8 |
| 34 | 12 | 304.8 | 6 5/8 |
| 35 | 12 1/4 | 311.2 | 6 5/8 |
| 36 | 12 5/16 | 312.7 | 6 5/8 |
| 37 | 13 3/8 | 314.3 | 6 5/8 |
| 38 | 12 7/16 | 315.9 | 6 5/8 |
| 39 | 12 5/8 | 320.7 | 6 5/8 |
| 40 | 13 1/8 | 333.4 | 6 5/8 |
| 41 | 13 1/2 | 342.9 | 6 5/8 |
| 42 | 13 5/8 | 346.1 | 6 5/8 |
| 43 | 13 3/4 | 349.3 | 6 5/8 |
| 44 | 14 1/2 | 368.3 | 7 5/8 |
| 45 | 14 3/4 | 374.7 | 7 5/8 |
| 46 | 15 1/2 | 393.7 | 7 5/8 |
| 47 | 16 | 406.4 | 7 5/8 |
| 48 | 17 1/2 | 444.5 | 7 5/8 |
| 49 | 18 7/8 | 479.4 | 7 5/8 |
| 50 | 20 | 508 | 7 5/8 |
| 51 | 22 | 558.8 | 7 5/8 |
| 52 | 24 | 609.6 | 7 5/8 |
| 53 | 26 | 660.4 | 7 5/8 |
| 54 | 28 | 711.2 | 7 5/8 |
| 55 | 30 | 762 | 7 5/8 |
