Oil / Gas Drilling Rig Drill Bit , Kymera Hybrid Roller Cone Drill Bit API Reg Pin Thread

China Oil / Gas Drilling Rig Drill Bit , Kymera Hybrid Roller Cone Drill Bit API Reg Pin Thread supplier
Oil / Gas Drilling Rig Drill Bit , Kymera Hybrid Roller Cone Drill Bit API Reg Pin Thread supplier Oil / Gas Drilling Rig Drill Bit , Kymera Hybrid Roller Cone Drill Bit API Reg Pin Thread supplier

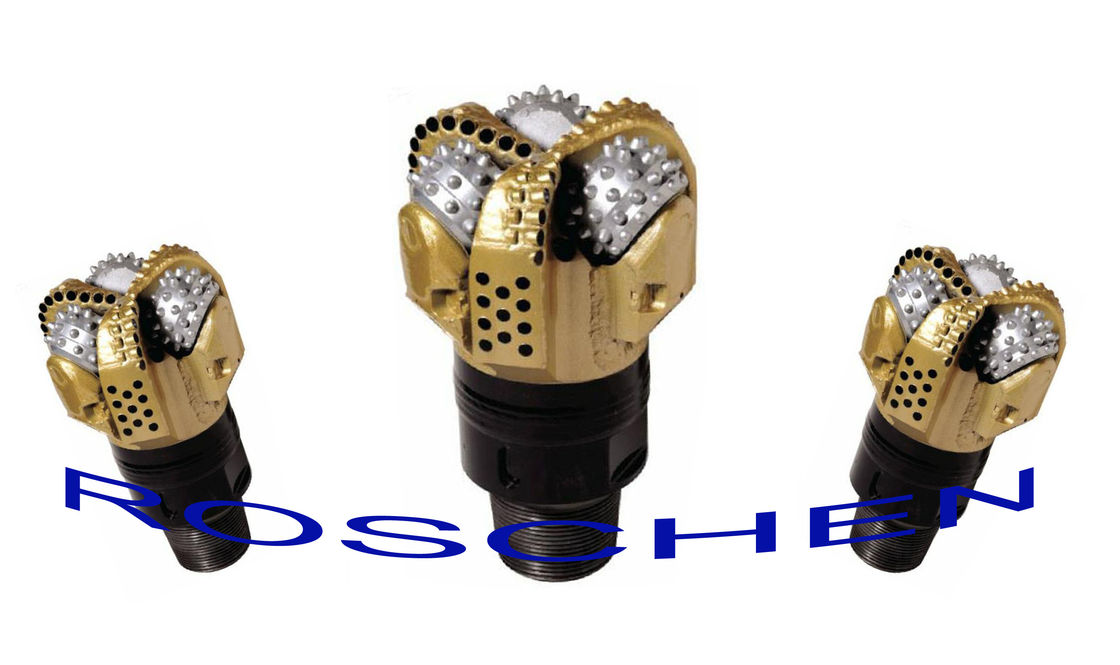

Large Image :  Oil / Gas Drilling Rig Drill Bit , Kymera Hybrid Roller Cone Drill Bit API Reg Pin Thread

Product Details:

Place of Origin: USA, CHINA
Brand Name: ROSCHEN
Certification: API, ISO
Model Number: 1 2 1/4

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiate
Packaging Details: Carton box
Supply Ability: 100000 pcs
Contact Now
Detailed Product Description
Name: Kymera Hybrid Drill Bits Drilling: Oil And Gas Drilling
Type: Tricone Roller Bit Series: Hybrid Drill Bits
Series No: Kymera Hybrid Bit Model: Kymera Hybrid Bit Technology Reduces Drilling Costs
Series Model: Kymera Mach 4 Hybrid Drill Bit Model No: Kymera XTreme Hybrid Drill Bit - Baker Hughes
Model Type: Baker Hughes Kymera XTreme Hybrid Drill Bit Use: New Hybrid Drill Bit Aims To Improve Penetration Rates

Kymera Hybrid Drill Bits 12 1/4 Inch Tricone Roller Bit for Oil and Gas Drilling





12 1/2" Hybrid PDC And Rolling Cone Bits


This is a kind of combined with the advantages of rock bit and PDC bit drilling bit.New products, new technology, wide range of bit, made in China high cost performance.

Description

Description of PDC bit and roller cone bit

PDC hybrid bit is a kind of combined with the advantages of rock bit and PDC bit drilling bit.New products, new technology, wide range of bit, made in China high cost performance.



Quick details

1. Product name: PDC hybrid bit
2. Material: Imported PDC cutters and superior steel
3. Application: Water well drilling and oil exploration
4. Usage: Hole drilling
5. Certification: ISO9001 and API
6. Size: 8 1/2" 9 1/2"(2 cones and 2 blades)
7. 12 1/2" and 17 1/2"(3 cones and 3 blades)
8. Connection thread: API standard Reg Pin

Packaging:
Wooden box packaging
Shipping: Samples are shipped by express, batch products are shipped by sea or by air
Delivery: 1-5 days for samples and available ones in stock, 1-10 days for batch products







Tricone Rolle Bits Product specifications:
Model Milled tooth bits tricone for water well,TCI bits tricone for water well
IADC Code 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
Bearing Type H--Friction bearing; G--Roller bearing; F--Floating Bearing
Sealing Type HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing) air cooled bearing type
Size From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit
Material alloy steel, tungsten carbide insert
Extra Feature 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection
Applicable Formation Very soft, soft, medium soft, hard, medium hard, very hard formation
Application Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work.





NO. TRICONE ROCK BIT SIZE API THREAD REG.PIN
in mm
1 3 3/4 95.3 2 3/8
2 3 7/8 98.4 2 3/8
3 4 1/8 104.8 2 3/8
4 4 1/4 108 2 3/8
5 4 1/2 114.3 2 3/8
6 4 5/8 117.5 2 7/8
7 4 3/4 120.7 2 7/8
8 4 7/8 123.8 2 7/8
9 5 1/2 139.7 3 1/2
10 5 5/8 142.9 3 1/2
11 5 2/3 143.9 3 1/2
12 4 3/4 146.1 3 1/2
13 5 7/8 149.2 3 1/2
14 6 152.4 3 1/2
15 6 1/8 155.6 3 1/2
16 6 1/4 158.8 3 1/2
17 6 1/2 165.1 3 1/2
18 6 5/8 168.3 3 1/2
19 6 3/4 171.5 3 1/2
20 7 1/2 190.5 4 1/2
21 7 5/8 193.7 4 1/2
22 7 7/8 200 4 1/2
23 8 3/8 212.7 4 1/2
24 8 1/2 215.9 4 1/2
25 8 5/8 219.1 4 1/2
26 8 3/4 222.3 4 1/2
27 9 1/2 241.3 6 5/8
28 9 5/8 244.5 6 5/8
29 9 7/8 250.8 6 5/8
30 10 1/2 266.7 6 5/8
31 10 5/8 269.9 6 5/8
32 11 279.4 6 5/8
33 11 5/8 295.3 6 5/8
34 12 304.8 6 5/8
35 12 1/4 311.2 6 5/8
36 12 5/16 312.7 6 5/8
37 13 3/8 314.3 6 5/8
38 12 7/16 315.9 6 5/8
39 12 5/8 320.7 6 5/8
40 13 1/8 333.4 6 5/8
41 13 1/2 342.9 6 5/8
42 13 5/8 346.1 6 5/8
43 13 3/4 349.3 6 5/8
44 14 1/2 368.3 7 5/8
45 14 3/4 374.7 7 5/8
46 15 1/2 393.7 7 5/8
47 16 406.4 7 5/8
48 17 1/2 444.5 7 5/8
49 18 7/8 479.4 7 5/8
50 20 508 7 5/8
51 22 558.8 7 5/8
52 24 609.6 7 5/8
53 26 660.4 7 5/8
54 28 711.2 7 5/8
55 30 762 7 5/8
