Hybrid Tricone Drill BitKymera Diameter 8 1/2 Inch Fast Soil Drilling Application

1 pcs
MOQ
Negotiate
Price
Hybrid Tricone Drill BitKymera Diameter 8 1/2 Inch Fast Soil Drilling Application
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hybrid Tricone Bit
Type: Kymera Hybrid Drill Bit
Feature: Shorten The Drilling Day Curve
Series: Hughes Christensen Kymera Hybrid Bit
Model: Baker Hughes Kymera Hybrid Bit
Series Type: KYMERA Hybrid Drill Bits
Usage: Wellbore Drilling
Application: Geothermal Wells
Advantage: Improving Drilling Rates
Hybrid Drill Bit Factory: Kymera Hybrid Drill Bit Manufacturer
High Light:

Hybrid Tricone Bit Kymera

,

8 1/2" Kymera Hybrid Tricone Drill

,

Kymera Hybrid Tricone bits

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: API, ISO
Model Number: 8 1/2, 9 7/8, 10, 12 1/4
Payment & Shipping Terms
Packaging Details: Carton box
Delivery Time: 10~15days
Supply Ability: 1000000 pcs
Product Description



Hybrid tricone bit Kymera with diameter 8 1/2 inch Fast for Soil Drilling




Kymera Hybrid Drill Bit


Shorten the drilling day curve

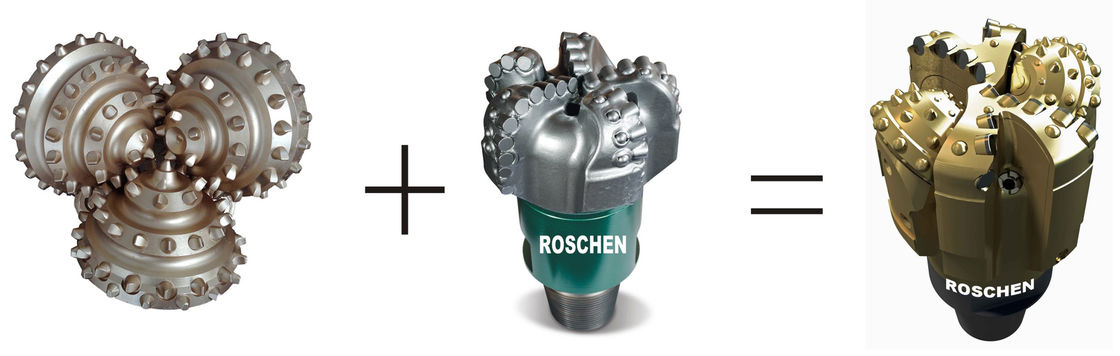

The award-winning Hughes Christensen Kymera hybrid bit by Roschen Baker Hughes combines PDC and roller cone bit technology for smoother drilling, remarkable torque management, and precise steerability.


Leveraging the cutting superiority of PDCs in soft formations and the rock-crushing strength and stability of roller cones in hard or interbedded formations, the hybrid bit has the potential to maintain higher overall rate of penetration (ROP) for more footage than a roller cone or PDC could individually.


A superior directional bit for motor and rotary applications, the Kymera hybrid bit provides increased buildup rate capabilities, dampened torque response, and precise steerability on a variety of bottomhole assemblies.


The Kymera hybrid bit is improving drilling rates in tough applications worldwide. Within the U.S., it is successfully drilling interbedded and chert applications with single bit run lengths extended by more than 200%. In Brazil, it drilled 90% faster and 20% farther than offset bit performances. And in Iceland geothermal wells, it has proven to drill basalt sections more than twice as fast as premium roller-cone bits.



Applications:

. Hard and interbedded formations
. Chert drilling
. Directional drilling
. Wells experiencing torque or vibrationrelated issues

Features and Benefits:

. Rolling torque management with dual action cutting structures
–– Increases ROP potential
–– Reduces weight-on-bit requirements
–– Better directional control, lower and more consistent drilling torque
–– Reduces torsional vibration and axial vibration

. Balanced downhole dynamics
–– Enhances stability, bit life, and drilling efficiency



. Advanced roller cone bearing and seal package
–– Maximum seal reliability and longer bit life



geothermal wells
improving drilling rates
Hybrid Drill Bits
8 1/2 inch Tricone Roller Bit
Oil and Gas Drilling
Hughes Christensen Kymera hybrid bit
Baker Hughes Kymera hybrid bit
Reduce drilling costs with faster
more durable drilling performance




Tricone Rolle Bits Product specifications:
Model Milled tooth bits tricone for water well,TCI bits tricone for water well
IADC Code 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
Bearing Type H--Friction bearing; G--Roller bearing; F--Floating Bearing
Sealing Type HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing) air cooled bearing type
Size From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit
Material alloy steel, tungsten carbide insert
Extra Feature 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection
Applicable Formation Very soft, soft, medium soft, hard, medium hard, very hard formation
Application Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work.





NO. TRICONE ROCK BIT SIZE API THREAD REG.PIN
in mm
1 3 3/4 95.3 2 3/8
2 3 7/8 98.4 2 3/8
3 4 1/8 104.8 2 3/8
4 4 1/4 108 2 3/8
5 4 1/2 114.3 2 3/8
6 4 5/8 117.5 2 7/8
7 4 3/4 120.7 2 7/8
8 4 7/8 123.8 2 7/8
9 5 1/2 139.7 3 1/2
10 5 5/8 142.9 3 1/2
11 5 2/3 143.9 3 1/2
12 4 3/4 146.1 3 1/2
13 5 7/8 149.2 3 1/2
14 6 152.4 3 1/2
15 6 1/8 155.6 3 1/2
16 6 1/4 158.8 3 1/2
17 6 1/2 165.1 3 1/2
18 6 5/8 168.3 3 1/2
19 6 3/4 171.5 3 1/2
20 7 1/2 190.5 4 1/2
21 7 5/8 193.7 4 1/2
22 7 7/8 200 4 1/2
23 8 3/8 212.7 4 1/2
24 8 1/2 215.9 4 1/2
25 8 5/8 219.1 4 1/2
26 8 3/4 222.3 4 1/2
27 9 1/2 241.3 6 5/8
28 9 5/8 244.5 6 5/8
29 9 7/8 250.8 6 5/8
30 10 1/2 266.7 6 5/8
31 10 5/8 269.9 6 5/8
32 11 279.4 6 5/8
33 11 5/8 295.3 6 5/8
34 12 304.8 6 5/8
35 12 1/4 311.2 6 5/8
36 12 5/16 312.7 6 5/8
37 13 3/8 314.3 6 5/8
38 12 7/16 315.9 6 5/8
39 12 5/8 320.7 6 5/8
40 13 1/8 333.4 6 5/8
41 13 1/2 342.9 6 5/8
42 13 5/8 346.1 6 5/8
43 13 3/4 349.3 6 5/8
44 14 1/2 368.3 7 5/8
45 14 3/4 374.7 7 5/8
46 15 1/2 393.7 7 5/8
47 16 406.4 7 5/8
48 17 1/2 444.5 7 5/8
49 18 7/8 479.4 7 5/8
50 20 508 7 5/8
51 22 558.8 7 5/8
52 24 609.6 7 5/8
53 26 660.4 7 5/8
54 28 711.2 7 5/8
55 30 762 7 5/8
