| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | 4 7/8" 3 Blades |

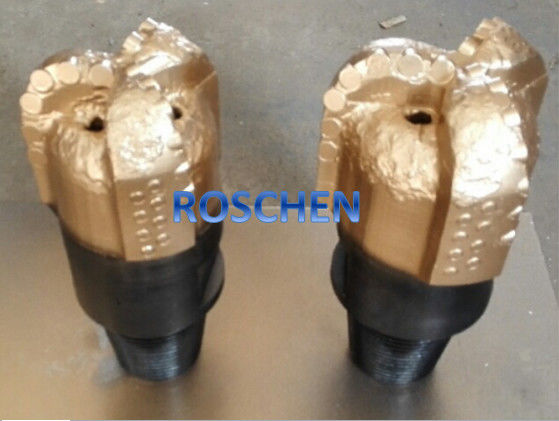

3 Blades API Diamond PDC Drill Bits
PDC bit for water well drilling:
1. Optimized short parabolic profile, suitable for drilling soft to medium soft homogeneous formations
2. Asymmetrical evolute spiral blade cutter placement makes the bit more stable during drilling
3. Primary and secondary cutting structure extends bit life
4. CFD hydraulic balance design results in better bit cleaning and cutting removal
5. Combined utilization of high performance PDC compacts significantly prolongs bit life
| Type | Sizes | Thread | Weight (kg) | |
| Inch | mm | |||
| 8 1/2M1234AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3235AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3235BLF | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M2235L | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3236AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 3/4M3235AL | 8 3/4 | 222.3 | 4 1/2REG | 72 |
| 9 1/2M3235L | 9 1/2 | 241.3 | 6 5/8REG | 85 |
| 9 1/2M3236L | 9 1/2 | 241.3 | 6 5/8REG | 85 |
| 12 1/4M3235 | 12 1/4 | 311.1 | 6 5/8REG | 105 |
| PDC non-coring bit | impregnated non-coring bit | |||
The main structure features:
1. PDC bit
2. Diamond compact
3. High wear resistance
4. Suitble for medium to hard formation
Tungsten carbide matrix PDC possesses high wear resistance and impact resistance.
Parabolic crown profile and maxises junk slot area can clean bit better, and prolong the bits working life.
PDC cutters is sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, they are widely used in oil/gas drill bits, geological drilling and mining bits, and also can be used in rock cutting tool.
Mining bits, and also can be used in rock cutting tool.
Roschen Intruduction:
The tungsten carbide products produced by our company is of better wear resistance,low maintenance,high bending strength,anti-corrosion,longer service life,more economical,high precision.more than 100 advanced machine tools and testing machines assured the top quality,which has passed through ISO9001-2008 and BV identification.You can have a strong faith in us.
We are also very good at producing special shaped tungsten carbide products according to our clients' drawings and specifications.
Contact us with your requirements.You will receive an excellent and competitive quotation and our sincere support.
We have rich experience in this field of Roller Tricone Bits, PDC Drill Bits, Oil Drilling Toosl, Rock Drilling tools, DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, South Latin Amercia, Brasil, Saudi Arabia, UAE, Iran, Malaysia, Australia, etc.
