Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | 13 5/8" |

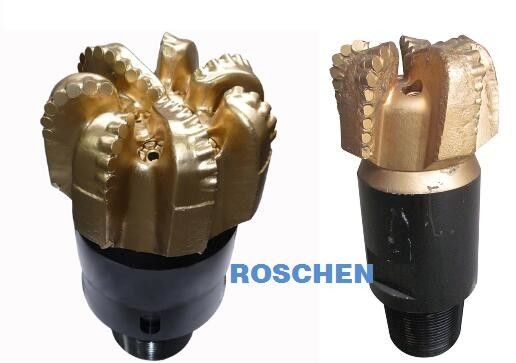

13 5/8" PDC Drill Bit Used for Oil & Gas
1. PDC DRILL BITS
Matrix- and steel-bodied bits for a wide range of standard drilling applications
Polycrystalline diamond compact (PDC) drill bits deliver premium performance and durability for a wide range of standard drilling applications. Designed with the ROSCHEN integrated drillbit design platform, these matrix- and steel-bodied bits incorporate the latest cutter technology, computational fluid dynamics (CFD), enhanced hydraulics, and various structure geometries to maximize ROP.
STANDARD CONNECTION SIZES
| BIT SIZE(INCH) | API REGULAR PIN(INCH) | RECOMMENDED MAKE UP TORQUE(KN.M) |
| 4 1/2 to 4 3/4 | 2 7/8 API | 6.0~7.5 |
| 5 1/8 to 7 3/8 | 3 1/8 API | 9.5~12 |
| 7 1/2 to 9 3/8 | 4 1/2 API | 16.0~22 |
| 9 1/2 to 14 1/2 | 6 5/8 API | 38~43 |
| 14 5/8 to 17 1/2 | 7 5/8 API | 46~54 |
2. Rough Specification
Matrix Body PDC Bit | |
| 1 . PDC Bit( Matrix Body) | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
3. Rock destruction options for every drilling application
Choose the best drill bit for your application from the broadest portfolio in the oil and gas industry. Using the most advanced design technology, ROSCHEN Bits can optimize any bit to fit your specific drilling needs. Our technology integrated drillbit design platform enables us to develop industry-leading bits that continually push the boundaries of performance and reliability for every application. Please contact your local representative to find out how we can help maximize your drilling solution.
Broad range of products from roller cone bits to rotating PDC cutters, ROSCHEN Bits provides quality and performance across the widest range of bits in the industry. From roller cone bits to rotating PDC cutters, selecting a quality product from our extensive selection gives you the best drilling tools to meet your performance demands.
