| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | 8 1/2" |

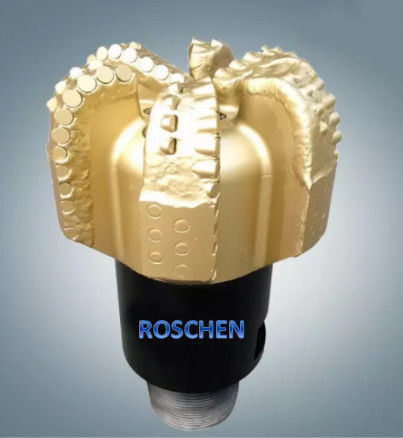

Cheap PDC Bore Drill Bit PDC Bits 8 1/2 Oil Field PDC Drill Bit Steel Body
1. Basical Parameter
| Bit Size | 8 1/2" |
| Number of Blade | 5 |
| Primary Cutter Size | 16MM |
| Nozzle Qty/Type | 7 |
| Gauge Length | 2"~3.5" |
| Connection | 4 1/2 REG PIN |
| Operating Parameter | |
| Rotary Speed(r/min) | 60~250 |
| Weight on Bit(KN) | 10~100 |
| Flow Rate(lps) | 25~36 |
2. PDC DRILL BITS - STANDARD CONNECTION SIZES
| BIT SIZE(INCH) | API REGULAR PIN(INCH) | RECOMMENDED MAKE UP TORQUE(KN.M) |
| 4 1/2 to 4 3/4 | 2 7/8 API | 6.0~7.5 |
| 5 1/8 to 7 3/8 | 3 1/8 API | 9.5~12 |
| 7 1/2 to 9 3/8 | 4 1/2 API | 16.0~22 |
| 9 1/2 to 14 1/2 | 6 5/8 API | 38~43 |
| 14 5/8 to 17 1/2 | 7 5/8 API | 46~54 |
3. Rough Specification
|
Matrix Body PDC Bit
|
|
| 1 . PDC Bit( Matrix Body) | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
|
Steel Body PDC Bit
|
|
| 1. PDC Steel Body Bit | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. |
| Body Type: Matrix or Steel | |
| Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. | |
| Blades:2~9 Wings. | |
| 2. PDC Steel Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type |
75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc.
|
4. PDC ADVANTAGES
PDC Drill Bits are equipped with Hardened Alloy Steel base material;High performance PDC-Cutters;Carbide and Diamond gauge protection;Carbide/Diamond Shock Studs;Threaded or Plain Carbide Nozzles for Flushing.
Above features are subject to changes and modifications according to customers' requirements.
The Diamond PDC drill bit designed to run at high penetration rates even in applications that call for higher blade and cutter counts. Its unique cutting structure layout adds another dimension to bit stability and smooth running by combining the penetration rate potential of traditional "single set" cutter layouts with the life extending features of a "plural set" cutter layout. The result is a bit that runs up to 20 percent faster than conventional PDC bits with minimum bit wear.
