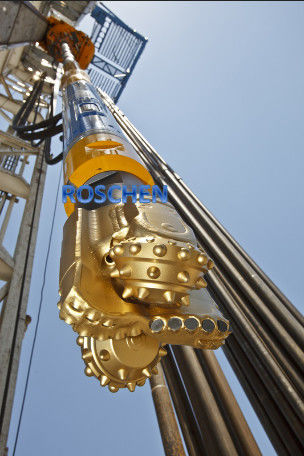

Hybrid drill bit 3 cones and 3 blades Twice better than Premium Roller Cone Bits
Hybrid drill bit technology combines roller cones and PDC fixed cutters into a single, patented design to reduce drilling time and trips in the most complex applications. With the rock-crushing strength and stability of roller cones and the cutting superiority and continuous shearing action of diamond bits, this technology increases ROP, improves cuttings removal, and survives highly interbedded formations with performance consistency and excellent toolface control.
2. Rough Specification
Size(inch) | Blade No.&Cone No. | PDC Quantity | Connect Thread |
8 1/2 | 2 cones 2 blades | Imported PDC | 4 1/2'' API Reg |
9 1/2 | 3 cones 3 blades | 6 5/8'' API Reg | |
12 1/2 | 3 cones 3 blades | 6 5/8'' API Reg | |
17 1/2 | 3 cones 3 blades | 7 5/8'' API Reg | |
3. Main Products we Provide
1). PDC Bit: Matrixt body/Steel body with cutter or without cutters;
2). PDC Drag Bit: Drilling soft formation, save cost, longtime usage than normal
drag bits, and suitable for mud clay and sandstone formation;
3). Tricone Bit:TCI and Steel/Milled tooth;
4). Mining Tricone Bit:High quality mining tricone bit with good price;
5). Diamond Core Bit:Various kind of core bits;
6). Other Drilling Tools:Manual Tongs,Safty clamp, Elevator,Slips,Taper, and so on...
4. Structural features
1) Tungsten carbide carcass drill with high wear resistance and impact resistance.
2) The parabolic crown maximizes the area of the chip flutes to effectively clean the drill and improve the service life of the drill.
3) Adopt hydraulic balance design, seven replaceable threaded nozzles, and reasonable nozzle angle to obtain an ideal bottom hole flow field, which can fully clean and cool the cutting teeth and improve the working life of the cutting teeth.
4) Asymmetric blade arrangement to increase drilling balance.
5) Tooth profile, inclination angle, cloth tooth density optimization, improved cutting tooth life, high-quality cutter tooth combination, improved ROP and drilling efficiency.
6) Can be used for rotary table and downhole motor drilling.
7) It is recommended to use a high ratio water motor.
