NQ HQ PQ Plastic Core Lifter used for Wireline Core Barrel Diamond Core Drilling
4 3/4" HPS Plastic Retainer Basket
6" - HPS Plastic Finger Retainer Basket
Plastic Basket Retainer
Split Spoon Samplers are ideal for surface sampling or sampling at various depths. Split spoon samplers split apart along the length of the tube to allow a for a true cross section evaluation and gentle sample removal.
Plastic Basket Retainer
Installed in the end of a standard or tab sampler to insure the soil sample does not slide out of the sampler as it is being withdrawn from the hole. For use in either the standard heavy duty or tab type samplers.

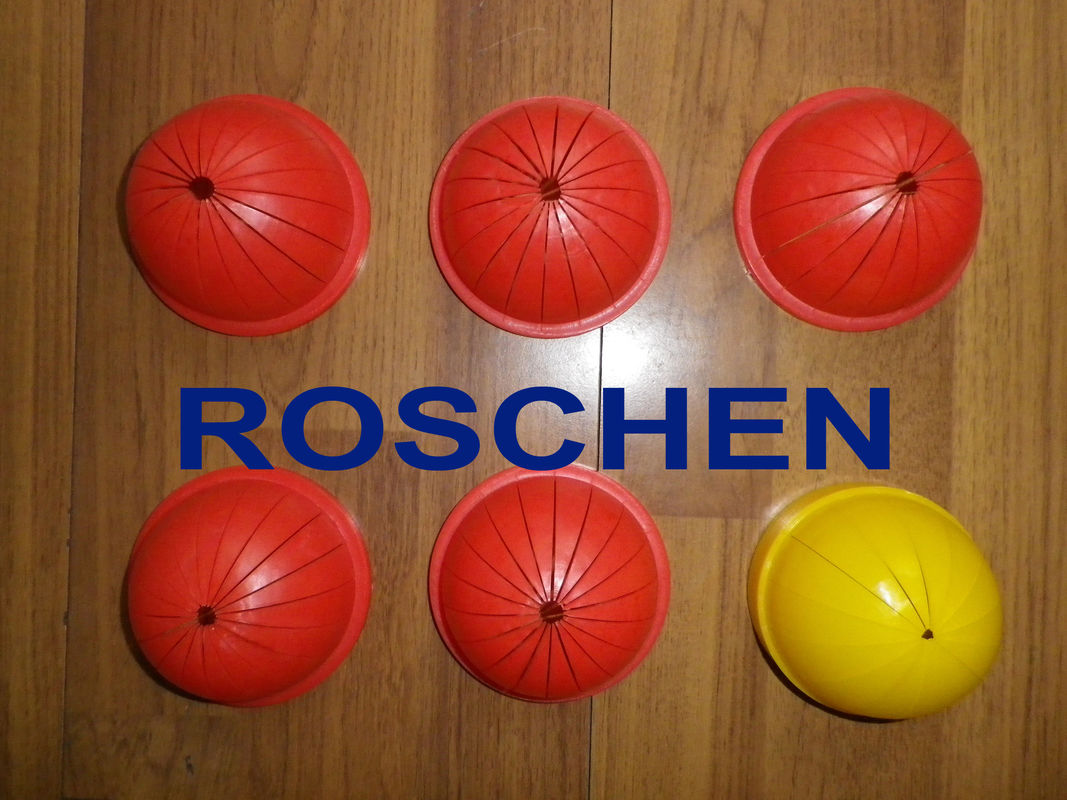

Core Catcher Retainer Basket
Retainer Baskets Used in conjunction with retainer basket bits, retainer baskets can be used to improve sample recovery in loose formations. Retainer Baskets Roschen retainer baskets are available in soft, medium, and hard plastic. Retainer baskets have flexible fingers that open to allow the soil into the side of core barrels, or Split Spoon Samplers, and the soils without leaking out of Split Spoon Samplers or core barrel. Particularly suitable for sandstone layers, broken rock formations, loose cores that cannot be completely corrugated, or soft formations. Collection, or coring is greatly improved.
Retainer Baskets
Used in conjunction with retainer basket bits, retainer baskets can be used to improve sample recovery in loose formations.
Retainer Baskets
Roschen retainer baskets are available in soft, medium, and hard plastic. Retainer baskets have flexible fingers that open to allow the sample into the tube, then close to retain the sample as the sampler is removed.
Plastic hardness to correspond with the hardness of the soil being sampled. Soft for softer formations, medium for medium formations and hard for hard formations.
ROSCHEN GROUP is professional in manufacturing and supplying quality core catcher retainer basket as one of the leading manufacturers and suppliers in China. We now bring you high quality core catcher retainer basket for sale, competitive in its excellent performance and high precision. Please rest assured to buy.
| Specifications: | ||
| Plastic Core Catcher | ||
| Auger I.D. | PART # | |
| IN | MM | |
| 1 11/16" | 43 | 2250100 |
| 2 1/4" | 57 | 2250101 |
| 2 1/2" | 63.5 | 2250102 |
| 3 1/9" | 79 | 2250103 |
| 3 1/4" | 83 | 2250104 |
| 3 1/2" | 88.9 | 2250105 |
| 3 15/16" | 100 | 2250106 |
| 4" | 101 | 2250107 |
| 4 1/4" | 108 | 2250108 |
| 4 1/2" | 114.3 | 2250109 |
| 5 1/4" | 134 | 2250110 |
| 5 1/2" | 139.7 | 2250111 |
| 6 1/4" | 155 | 2250112 |
| 6 1/2" | 165.1 | 2250113 |
| 6 5/8" | 168 | 2250114 |
| 7 1/4" | 184.15 | 2250115 |
| 7 1/2" | 190.5 | 2250116 |
| Stocks Size Plastic Core Catcher | ||
| Auger I.D. | PART # | |
| IN | MM | |
| 1 11/16" | 43 | 2250100 |
| 2 1/2" | 63.5 | 2250102 |
| 3 1/9" | 79 | 2250103 |
| 3 1/2" | 88.9 | 2250105 |
| 3 15/16" | 100 | 2250106 |
| 4" | 101 | 2250107 |
