Core Barrel
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | BQ HQ NQ PQ, HWL, NWL, PWL, T2-76, T2-86,T2-101 |

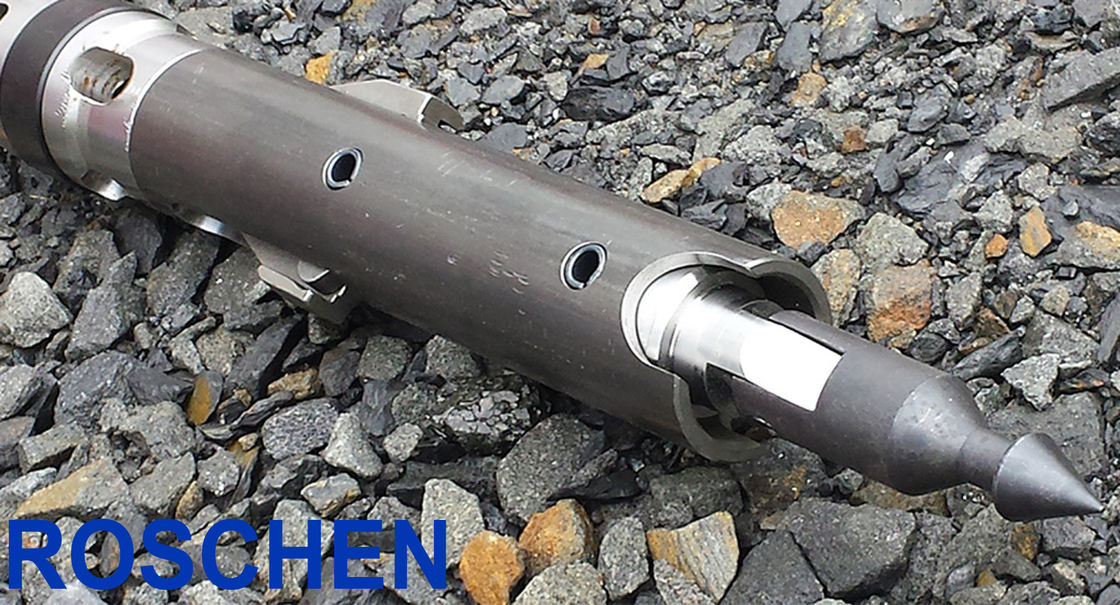

Core Barrels
Core Barrels, Wireline Core Barrels BQ HQ NQ PQ Used for Mining, Geological Drilling
Roschen Group Limited manufactures a wide assortment of Core Barrels for geotechnical and mineral exploration applications. Our Core Barrels are manufactured using the tightest tolerances to ensure safe, efficient operation as well as a high rate of core sample recovery.
In addition to the industry-standard assembly, we offer options to customize most sections of the core barrel.
Core Bits, Reaming Shells, Overshots and other Coring Tools are also available.
Available Core Barrel Types:
Wireline: AWL, BWL, NWL, NWL-2 HWL, PWL
Triple Tube: BWL-3, NWL-3, HWL-3, PWL-3
Conventional: BV, NV, NV-2, HV, PV, NWD4
DCDMA: WM, WG
2-3/4” x 3-7/8”, 4" x 5-1/2", 6" x 7-3/4"
| Core sizes: | ||||
| Double tube surface | ||||
| Size(surface exploration drill) | Metric system(mm) | Imperial system(in) | ||
| Hole diameter | Core diameter | Hole diameter | Core diameter | |
| BQ | 60 | 36.4 | 2.36 | 1.43 |
| NQ | 75.7 | 47.6 | 2.98 | 1.88 |
| HQ | 96.1 | 63.5 | 3.78 | 2.5 |
| PQ | 122.7 | 85 | 4.83 | 3.34 |
| Triple tube surface | ||||
| NQ3 | 75.7 | 45 | 2.98 | 1.78 |
| HQ3 | 96.1 | 61.1 | 3.78 | 2.41 |
| PQ3 | 122.7 | 83 | 4.83 | 3.27 |
| Boart Longyear Core Barrel System Sizes | ||
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Core Barrel System Sizes | ||||
| SYSTEM | CORE Ø | HOLE Ø | ||
| mm | in | mm | in | |
| A | 48,0 | 1.89 | 27,0 | 1.06 |
| B | 59,9 | 2.36 | 36,4 | 1.43 |
| N | 75,7 | 2.98 | 47,6 | 1.88 |
| H | 96,1 | 3.78 | 63,5 | 2.5 |
| P | 122,6 | 4.83 | 85,0 | 3.35 |
